28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic
  • name
  • name
  • name
  • name

28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-3028-2BZ
Products Name:
Ultrasonic Welding Transducer
Frequency:
28 Khz
Output Power:
400 Watt
Joint Bolt:
3/8-24UNF
Ceramic Disc Diameter:
30mm
Qty Of Ceramic Discs:
2pcs
Capacitance:
2.8-3.8nf
Amplitude:
8um
Highlight:

ultrasonic piezo transducer

,

high frequency ultrasonic transducer

Product Description



28Khz Spare Parts Ultrasonic Spot Welding with 30mm Diameter Ceramic





Description:



Ultrasonic is widely used in production, such as welding, cutting, slitting, and plastic welding of various non-woven/chemical fiber cloths. However, due to the difference between ultrasonic and high-frequency principles, the applicable raw materials and applications are also applicable.

Ultrasonic transducer is an energy conversion device whose function is to convert the input electrical power into mechanical power (ie, ultrasonic waves) and then pass it out, while it consumes a small amount of power (less than 10%). Therefore, the most important consideration for using ultrasonic transducers is the matching with the input and output terminals, followed by the mechanical mounting and mating dimensions. There are many types of ultrasonic machinery on the market, and customers must provide accurate and reliable indicators to ensure that the ultrasonic transducer products provided by the company can be matched with your company's ultrasonic machines to achieve the best performance.





Specifications:



Model QR-3028-2BZ
Frequency 28khz
Output power 400 watt
Joint bolt 3/8-24UNF
Ceramic disc Diameter 30mm
Qty of ceramic discs 2pcs
Capacitance 2.8-3.8nf
Amplitude 8 um
Application Plastic welding machine





Parameters:



The columnar type NTK TYPE

Item No.



Connect screw



Ceramic dia (mm)



 Qty of Ceramic (pc)

Frequency (khz)



 Capacitance

power (W)


Yellow Grey Black
5025-2BZ M12 X 1 50 2 25 5000-5600   7000-8000 500
3828-2BZ 1/2-20UNF 38 2 28 3800-4300     500
3828-4BZ 1/2-20UNF 38 4 28 7600-8500   10500-12000 800
3028-2BZ 3/8-24UNF 30 2 28 2700-3100 3400-3800   400
3028-4BZ M10*1 30 4 28   6000-7000   700
2528-4FZ M8 X 1 25 4 28 3900-4300     400
2528-2FZ M8 X 1 25 2 28 1950-2200 2200-2500   300
3030-4BZ M10 30 4 30   6200-6900   700
3035-2FZ 3/8-24UNF 30 2 35 2700-3100     500
3035-4BZ M10 X 1 30 4 35 5000-6200     800
2535-2FZ M8 X 1 25 2 35 1900-2200     400
2540-2BZ 3/8-24UNF 25 2 40   2000-2300   500
3040-4BZ M10 30 4 40 5500-6200     1000
3050-4BZ M8 30 4 50 5500-6200     600
1560-2BZ M6 X 0.75 15 2 60     700-800 100

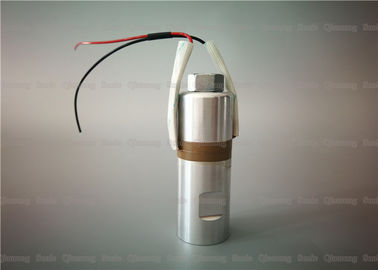

28Khz Spare Parts Ultrasonic Spot Welding with 30mm Diameter Ceramic



28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic 0



28Khz Ultrasonic Piezoelectric Transducer Spot Welding With 30mm Diameter Ceramic 1

Tags:

high frequency ultrasonic transducer,

ultrasonic piezo transducer,

piezoelectric transducer ultrasound
