Heavy Duty 110-3122 20Khz Ultrasonic Replacement Welding Converter
  • name
  • name
  • name
  • name

Heavy Duty 110-3122 20Khz Ultrasonic Replacement Welding Converter

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-D110-3122
Products Name:
Ultrasonic Replacement Converter
Frequency:
20 Khz
Output Power:
2000 Watt
Joint Bolt:
1/2-20UNF
Ceramic Disc Diameter:
50mm
Capacitance:
11-18nf
Amplitude:
10um
Application:
Ultrasonic Plastic Welding Machine
Highlight:

ultrasonic welding machine parts

,

ultrasonic converter

Product Description

Heavy Duty 110-3122 20Khz Ultrasonic Replacement Dukane Converter





Description:



Replacement Dukane 20 kHz 110-3122 converter. Standard on Ultra Series systems heavy-duty series press and thruster systems utilizing model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 press/thruster.



All of the components used in construction of these Dukane replacement converters are all new, not recovered from scrapped units. The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance.





Specifications:



Model QR-D110-3122
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-18nf
Amplitude 10 um
Application Plastic welding machine





Features of Ultrasonic transducer product :



  •  High performance: high mechanical quality factor, electro-acoustic conversion energy rate of more than 90%.
  •  Large amplitude: The vibrator has a high vibration velocity and is directly fixed to the bottom of the cleaning tank by the tamper bolt, so that the strength is improved, and the amplitude is increased by 50% or more compared with the magnetostrictive vibrator.
  • Good heat resistance: wide temperature range, low resonance impedance and low heat generation.
  • Strong structure: fastened with shackle, easy to install, high reliability.





Heavy Duty 110-3122 20Khz Ultrasonic Replacement Dukane Converter

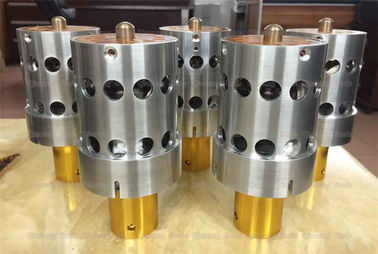

Heavy Duty 110-3122 20Khz Ultrasonic Replacement Welding Converter 0





Heavy Duty 110-3122 20Khz Ultrasonic Replacement Welding Converter 1

Tags:

ultrasonic welding machine parts,

high power ultrasonic transducer,

ultrasonic converter
