|Place of Origin:||China|
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Packed in carton|
|Delivery Time:||3 workdays|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||2000pcs per month|

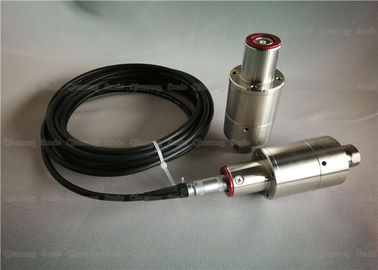

Piezoelectric Effect 1000w Ultrasonic Transducers Replacement Convertor Telsonic
Repacement Telsonic SE3512C Konverter. Ultrasonic transducer is a device that can convert high-frequency electrical energy into mechanical energy. It is generally magnetostrictive and piezoelectric ceramic. The power output is sent to the ultrasonic generator, and then to the ultrasonic transducer. The ultrasonic derivation device can generate ultrasonic waves.
Ultrasonic transducers convert electrical energy, mechanical energy or acoustic energy from one form of energy to another form of energy device, also known as an ultrasonic transducer, also known as an active sensor. One of the most mature and reliable is the device that converts electrical energy and acoustic energy by piezoelectric effect, also known as piezoelectric transducer. The transducer is composed of a central piezoelectric ceramic component, a front and rear metal cover, a pre-stressed screw, an electrode sheet, and an insulating tube. Ultrasonic transducers are used in almost all ultrasonic equipment. Qianrong ultrasonic equipment is the source of ultrasonic titanium alloy transducers and core components.
|Output power||1000 watt|
|Ceramic disc Diameter||25mm|
|Qty of ceramic discs||4pcs|
|Application||Plastic welding machine|
Connect screw (Size)
Ceramic diameter (mm)
Quantity of Ceramic (pc)
Resonance frequency (khz)
910W or IW+
|7-QR-B4TH||M8||25||4||40||800||40khz Branson welders|
|8-QR-B4TR||M8||25||4||40||800||40khz Branson welders|
|9-QR-D20||1/2-20UNF||50||2||20||2000||20khz Dukane Heavy Duty|
|10-QR-D41S30||1/2-20UNF||50||4||20||2000||Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260|
|13-QR-D110-3168||1/2-20UNF||50||4||20||2000||Dukane Model 43B18|
|14-QR-D41C28||M8||35||2||40||800||40khz Dukane welders|
|15-QR-D41C29||M8||35||2||40||800||40khz Dukane welders|
|16-QR-R3510||M8||25||4||35||800||35Khz Rinco Welders|
|17-QR-R35||M8*1.25||25||2||35||500||35khz Rico Welders|
|23-QR-T35||M8||25||4||35||800||35khz Telsonic Machine|
Special Items can be customized.
The reasons why the transducer is often bad are:
1. The power loss of the transducer itself is large, and the transducer needs to consume a certain amount of power when vibrating. This loss power directly reflects the quality and process of the transducer, and the power consumed by the transducer itself is as small as possible. The greater the loss power, the greater the damage. In severe cases, the piezoelectric ceramic is directly broken. The amount of power loss directly reflects the process and quality of the transducer.
2. The aluminum alloy horn of the transducer is fatigue fracture (affected by the material life), and the amplitude is large.
3. The piezoelectric ceramic piece of the transducer is broken (by the piezoelectric ceramic itself, the mechanical strength causes loss and heat, overload and high power output, loose)
Piezoelectric Effect 35khz 1000w Ultrasonic Transducers Replacement Convertor Telsonic
|Products Name:||Ultrasonic Replacement Converter||Frequency:||35 Khz|
|Output Power:||1000 Watt||Joint Bolt:||M8|
|Ceramic Disc Diameter:||25mm||Capacitance:||2.1-2.3nf|
|Amplitude:||6um||Application:||Ultrasonic Plastic Welding Machine|
