3600w Ultrasonic Welding Transducer , Ultrasonic Cavitation Transducer For Welding System
  • name
  • name
  • name
  • name

3600w Ultrasonic Welding Transducer , Ultrasonic Cavitation Transducer For Welding System

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-7015-4BD
Products Name:
Ultrasonic Welding Transducer
Frequency:
15 Khz
Output Power:
3600 Watt
Joint Bolt:
M20*1.5
Ceramic Disc Diameter:
70mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
12.5-19nf
Amplitude:
10 Um
Highlight:

ultrasonic high power transducer

,

high frequency ultrasound transducer

Product Description

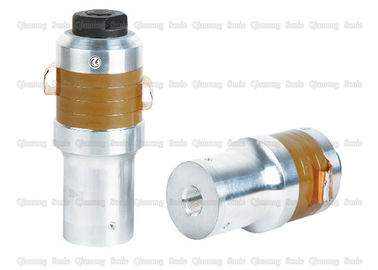

High Power 3600w 15Khz Ultrasonic Welding Transducer for Welding System





Description:



Ultrasonic transducer is a piezoelectric ceramic that resonates at ultrasonic frequency. The piezoelectric effect of the material converts electrical signals into mechanical vibration. Ultrasonic transducer is an energy conversion device. Its function is to convert the input electric power into mechanical power (ie, ultrasonic waves) and then pass it out, while it consumes a small amount of power itself.





Specifications:



Model QR-7015-4BD
Frequency 15 khz
Output power 3600 watt
Joint bolt M20*1.5
Ceramic disc Diameter 70mm
Qty of ceramic discs 4pcs
Capacitance 12.5-19nf
Amplitude 10 um
Application Plastic welding machine





The main forms of ultrasonic transducers according to different designs are:



1. Column type (NTK type)

2. Inverted horn type (Branson type)

3 steel back cover type

4. Middle clip aluminum sheet type

Mainly used with ultrasonic plastic welding machine, ultrasonic plastic welding, ultrasonic metal welding machine, ultrasonic cleaning machine, ultrasonic sonochemical equipment.





Application:



Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.
Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.
Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.





High Power 3600w 15Khz Ultrasonic Welding Transducer for Welding System



3600w Ultrasonic Welding Transducer , Ultrasonic Cavitation Transducer For Welding System 0





3600w Ultrasonic Welding Transducer , Ultrasonic Cavitation Transducer For Welding System 1
