38mm Diameter Ceramics Ultrasonic Transducer 20khz For Medical Cloth Making

38mm Diameter Ceramics Ultrasonic Transducer 20khz For Medical Cloth Making

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-3820-4BZ
Products Name:
Ultrasonic Transducer 20khz
Frequency:
20 Khz
Output Power:
800 Watt
Joint Bolt:
1/2-20UNF
Ceramic Disc Diameter:
38mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
6.5-7.5nf
Amplitude:
10 Um
Highlight:

piezoelectric ceramic transducer

,

high frequency ultrasound transducer

Product Description



38mm Diameter Ceramics 20Khz Ultrasound Welding Transducer for Medical Cloth Making





Description:



Our company QRsonic specializes in providing ultrasonic accessories, ultrasonic transducers, horns, custom tool heads and power supplies for mask machine factories.The basic components of the transducer: the horn, the piezoelectric ceramic group, the electrode, the back cover, the high-strength bolt, combined into an ultrasonic transducer, and the transducer is fixed in the protective case. The horn has a certain amplitude amplification ratio.

The non-woven masks currently on the market are basically produced by ultrasonic mask machines. According to the shape, the non-woven masks mainly include non-woven inner ear masks, non-woven outer ear masks, non-woven strap masks, non-woven Cup masks, non-woven folding masks, non-woven duckbill masks, etc.




Specifications:



Model QR-3820-4BZ
Frequency 20khz
Output power 800 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 38mm
Qty of ceramic discs 4pcs
Capacitance 6.5-7.5nf
Amplitude 10 um
Application Plastic welding machine





Parameters:



The columnar type NTK TYPE

Item No.



Connect screw



Ceramic dia (mm)



Qty of Ceramic (pc)

Frequency (khz)



Capacitance

power (W)



Yellow Grey Black
7015-4BZ M20 X 1.5 70 4 15 12500-14000   17000-19000 2600
6015-4BZ M20 X 1.5 60 4 15 8000-10000 10000-12000 12500-13500 2200
6015-6BZ M20 X 1.5 60 6 15 14000-16000   19500-21000 2600
5015-4BZ M18 X 1.5 50 4 15 12000-13000 13000-14300 15000-17000 1500
4015-4BZ M16 X 1 40 4 15 10000-11000 10500-11500   700
5520-4BZ M18 X 1 55 4 20 10000-11000 10500-11500 14300-20000 2000
5020-6BZ M18 X 1.5 50 6 20 18500-20000   22500-25000 2000
5020-4BZ M18 X 1.5 50 4 20 11000-13000 13000-15000 15000-17000 1500
5020-2BZ M18 X 1.5 50 2 20 6000-6500 6500-7000 8000-9000 800
5020-4CZ M18 X 1.5 50 4 20 11000-12000 13000-14000 14500-16000 1500
5020-4HZ M18 X 1.5 50 4 20     11000-12000 1500
5020-4BL M18 X 1.5 50 4 20 11000-12500     1500
4020-4BZ 1/2-20UNF 40 4 20 9000-10000 9500-11000   900
4020-2BZ 1/2-20UNF 40 2 20   4800-5500   500
3820-4BZ 1/2-20UNF 38 4 20 6500-7500     800
The columnar type NTK TYPE

Item No.



Connect screw



Ceramic dia (mm)



Qty of Ceramic (pc)

Frequency (khz)



Capacitance

power (W)



Yellow Grey Black
5025-2BZ M12 X 1 50 2 25 5000-5600   7000-8000 500
3828-2BZ 1/2-20UNF 38 2 28 3800-4300     500
3828-4BZ 1/2-20UNF 38 4 28 7600-8500   10500-12000 800
3028-2BZ 3/8-24UNF 30 2 28 2700-3100 3400-3800   400
3028-4BZ M10*1 30 4 28   6000-7000   700
2528-4FZ M8 X 1 25 4 28 3900-4300     400
2528-2FZ M8 X 1 25 2 28 1950-2200 2200-2500   300
3030-4BZ M10 30 4 30   6200-6900   700
3035-2FZ 3/8-24UNF 30 2 35 2700-3100     500
3035-4BZ M10 X 1 30 4 35 5000-6200     800
2535-2FZ M8 X 1 25 2 35 1900-2200     400
2540-2BZ 3/8-24UNF 25 2 40   2000-2300   500
3040-4BZ M10 30 4 40 5500-6200     1000
3050-4BZ M8 30 4 50 5500-6200     600
1560-2BZ M6 X 0.75 15 2 60     700-800 100





38mm Diameter Ceramics 20Khz Ultrasound Welding Transducer for Medical Cloth Making

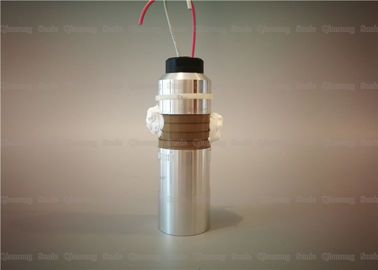

38mm Diameter Ceramics Ultrasonic Transducer 20khz For Medical Cloth Making 0



38mm Diameter Ceramics Ultrasonic Transducer 20khz For Medical Cloth Making 1
