Copper Welder 20Khz Ultrasound Without Extra Splicer Materials

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden carton
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 1000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-X2030A
Products Name:
Ultrasonic Wire Harness Welding Machine
Frequency:
20KHZ
Power:
3000W
Voltage:
220V
Welding Area:
0.5-20mm2
Air Pressure:
0.05-0.9MPa
Generator Size:
540*380*150mm
Dimension Of Horn:
550*220*240mm
Highlight:

Ultrasound Copper Welder

,

20K Ultrasonic Wire Harness Welding Machine

Product Description

Copper Welder by 20Khz Ultrasound without Extra Splicer Materials for Join Process





Description:



Ultrasonic wire harness welding machine is suitable for welding different terminals such as terminal blocks, automobile wiring harnesses and battery pack leads. It adopts intelligent control mode and covers modes such as time, energy, power and segmentation. It has many control functions such as counting, historical data storage, and curve analysis. The precise and reliable electrical connection in automotive wiring harnesses is a decisive prerequisite. Ultrasonic wire harness welding ensures good electrical conductivity of the wire connections. Ultrasonic metal welding belongs to the friction welding process. When the synchronous pressure is combined, the contact surface of the welding material melts instantaneously, and a new molecular chain is generated, and molecular bonding occurs, which is close to the strength of the raw material.


Parameters:



Item No QR-X2020A QR-X2030A QR-X2040A
Power 2000W 3000W 4000W
Welding Area 0.5-16mm2 0.5-20mm2 1-30mm2
Air Pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20KHZ 20KHZ 20KHZ
Voltage 220V 220V 220V
Weight of horn 18KG 22KG 28KG
Dimension of Horn 530*210*230mm 550*220*240mm 550*250*240mm
Generator Size 540*380*150mm 540*380*150mm 540*380*150mm





Advantage:


1. Circuit characteristics: new digital circuit, stable performance, strong welding ability, self-contained energy feedback, real-time monitoring of welding quality. The matching of the whole machine has reached the national advanced level.
2. Welding mode: Time, energy, continuous, segment and other working modes.
3. Protection system: Machine fault records and other protections, such as: rectification, temperature, transducer resistance error, power, speed, air pressure, pressure, IGBT temperature, rectification current, displacement, transducer current, transducer The voltage, welding power is too high or too low, and the energy is too low, etc., all play a real-time monitoring and protection.
4. Data reading: It is convenient for users to save multiple sets of welding process parameters and call them directly when they are used again.

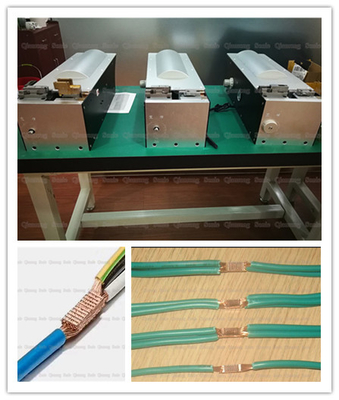

Copper Welder by 20Khz Ultrasound without Extra Splicer Materials for Join Process



Copper Welder 20Khz Ultrasound Without Extra Splicer Materials 0Copper Welder 20Khz Ultrasound Without Extra Splicer Materials 1
