20Khz Ultrasonic Wire Splicing Machine Galvanic Welding For Motorcycle Wiring Harness

20Khz Ultrasonic Wire Splicing Machine Galvanic Welding For Motorcycle Wiring Harness

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden carton
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 1000 pcs per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-X2030A
Products Name:
Ultrasonic Wire Harness Welding Machine
Frequency:
20KHZ
Power:
3000W
Voltage:
220V
Welding Area:
0.5-20mm2
Air Pressure:
0.05-0.9MPa
Generator Size:
540*380*150mm
Dimension Of Horn:
550*220*240mm
Highlight:

ultrasonic wire splicing machine

,

handheld ultrasonic welder

Product Description



Ultrasonic 20Khz Wire Splicer Galvanic Welding for Motorcycle Wiring Harness




Description:

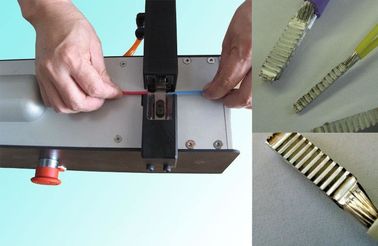

Ultrasonic automotive wire harness welding uses ultrasonic metal welding technology to weld metal wire harnesses, and converts high-frequency electrical energy into a mechanical vibration energy through a transducer to act on the metal wire harness. When the temperature of vibration friction heat reaches the melting point of the wire metal, the wire harness It will melt, and the wire harness will apply a certain pressure while the wire bundle is being fused. Finally, the wire harness welding device moves away and stops the mechanical vibration, which will form a wire harness welding effect. During the wire harness welding process, no current is passed through the weldment, and no welding arc is generated. Because ultrasonic welding does not have problems such as heat conduction and electrical resistivity, it is undoubtedly a kind of welding for non-ferrous metal wire harnesses. In an ideal metal wire harness welding system, the wire harness welding effect is generally square.



Principle:



The principle of ultrasonic metal welding is to transmit high-frequency vibration waves to two metal surfaces to be welded. Under pressure, the two metal surfaces rub against each other to form a fusion between molecular layers, which has the advantages of being fast and energy-saving. High fusion strength, good electrical conductivity, no sparks.




Parameters:



Item No QR-X2020A QR-X2030A QR-X2040A
Power 2000W 3000W 4000W
Welding Area 0.5-16mm2 0.5-20mm2 1-30mm2
Air Pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20KHZ 20KHZ 20KHZ
Voltage 220V 220V 220V
Weight of horn 18KG 22KG 28KG
Dimension of Horn 530*210*230mm 550*220*240mm 550*250*240mm
Generator Size    540*380*150mm 540*380*150mm 540*380*150mm




Judging whether the wire harness welder is good or bad:



1. How is the harness aspect ratio calculated?

2. What standards do you meet?

3. Does the single and second pole node fixing meet the machine strength requirements?

4. How to control the amount of compression?

5. Is the metal welder changed from plastic welding circuit used for metal welding?

6. The metal welding machine modified by plastic welding circuit can still cope with the proofing process, but it is really mass production, can it make the production stable?




Ultrasonic 20Khz Wire Splicer Galvanic Welding for Motorcycle Wiring Harness



20Khz Ultrasonic Wire Splicing Machine Galvanic Welding For Motorcycle Wiring Harness 0

20Khz Ultrasonic Wire Splicing Machine Galvanic Welding For Motorcycle Wiring Harness 1

products
PRODUCTS DETAILS
20Khz Ultrasonic Wire Splicing Machine Galvanic Welding For Motorcycle Wiring Harness
MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden carton
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 1000 pcs per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-X2030A
Products Name:
Ultrasonic Wire Harness Welding Machine
Frequency:
20KHZ
Power:
3000W
Voltage:
220V
Welding Area:
0.5-20mm2
Air Pressure:
0.05-0.9MPa
Generator Size:
540*380*150mm
Dimension Of Horn:
550*220*240mm
Minimum Order Quantity:
1 unit
Price:
Negotation
Packaging Details:
Packed in wooden carton
Delivery Time:
15 workdays
Payment Terms:
T/T, Western Union
Supply Ability:
1000 pcs per month
Highlight

ultrasonic wire splicing machine

,

handheld ultrasonic welder

Product Description



Ultrasonic 20Khz Wire Splicer Galvanic Welding for Motorcycle Wiring Harness




Description:

Ultrasonic automotive wire harness welding uses ultrasonic metal welding technology to weld metal wire harnesses, and converts high-frequency electrical energy into a mechanical vibration energy through a transducer to act on the metal wire harness. When the temperature of vibration friction heat reaches the melting point of the wire metal, the wire harness It will melt, and the wire harness will apply a certain pressure while the wire bundle is being fused. Finally, the wire harness welding device moves away and stops the mechanical vibration, which will form a wire harness welding effect. During the wire harness welding process, no current is passed through the weldment, and no welding arc is generated. Because ultrasonic welding does not have problems such as heat conduction and electrical resistivity, it is undoubtedly a kind of welding for non-ferrous metal wire harnesses. In an ideal metal wire harness welding system, the wire harness welding effect is generally square.



Principle:



The principle of ultrasonic metal welding is to transmit high-frequency vibration waves to two metal surfaces to be welded. Under pressure, the two metal surfaces rub against each other to form a fusion between molecular layers, which has the advantages of being fast and energy-saving. High fusion strength, good electrical conductivity, no sparks.




Parameters:



Item No QR-X2020A QR-X2030A QR-X2040A
Power 2000W 3000W 4000W
Welding Area 0.5-16mm2 0.5-20mm2 1-30mm2
Air Pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20KHZ 20KHZ 20KHZ
Voltage 220V 220V 220V
Weight of horn 18KG 22KG 28KG
Dimension of Horn 530*210*230mm 550*220*240mm 550*250*240mm
Generator Size    540*380*150mm 540*380*150mm 540*380*150mm




Judging whether the wire harness welder is good or bad:



1. How is the harness aspect ratio calculated?

2. What standards do you meet?

3. Does the single and second pole node fixing meet the machine strength requirements?

4. How to control the amount of compression?

5. Is the metal welder changed from plastic welding circuit used for metal welding?

6. The metal welding machine modified by plastic welding circuit can still cope with the proofing process, but it is really mass production, can it make the production stable?




Ultrasonic 20Khz Wire Splicer Galvanic Welding for Motorcycle Wiring Harness



20Khz Ultrasonic Wire Splicing Machine Galvanic Welding For Motorcycle Wiring Harness 0

20Khz Ultrasonic Wire Splicing Machine Galvanic Welding For Motorcycle Wiring Harness 1
