High Frequency 40Khz 200w Ultrasonic Welding Transducer With Grey Piezoelectric Ceramics

MOQ:	1 pcs
Price:	Negotation
Standard Packaging:	Packed in carton
Delivery Period:	3 workdays
Payment Method:	T/T, Western Union
Supply Capacity:	2000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

QRsonic

Certification

Model Number

QR-2040-2BD

Products Name:

Ultrasonic Welding Transducer

Frequency:

40 Khz

Output Power:

200 Watt

Joint Bolt:

Ceramic Disc Diameter:

Qty Of Ceramic Discs:

Capacitance:

1.5-1.7nf

Amplitude:

Highlight:

ultrasonic piezo transducer

high frequency ultrasonic transducer

Product Description

High Frequency 40Khz 200w Ultrasonic Welding Transducer with Grey Piezoelectric Ceramics

Description:

The transducer is composed of a central piezoelectric ceramic component, a front and rear metal cover, a pre-stressed screw, an electrode sheet, and an insulating tube. Ultrasonic transducers are used in almost all ultrasonic equipment. Qianrong ultrasonic equipment is the source of ultrasonic titanium alloy transducers and core components.

Specifications:

Model	QR-2040-2BD
Frequency	40khz
Output power	200 watt
Joint bolt	M8
Ceramic disc Diameter	20mm
Qty of ceramic discs	2pcs
Capacitance	1.5-1.7nf
Amplitude	4 um
Application	Plastic welding machine

Parameters:

The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application)
Item No.	Connect screw (Size)	Ceramic diameter (mm)	Quantity of Ceramic (pc)	Resonance frequency (khz)	Resistance (Ω)	Capacitance			Input power (W)	Max. Amplitude (um)
Item No.	Connect screw (Size)	Ceramic diameter (mm)	Quantity of Ceramic (pc)	Resonance frequency (khz)	Resistance (Ω)	Yellow	Grey	Black	Input power (W)	Max. Amplitude (um)
7015-4BD	M20 X 1.5	70	4	15	15	12500-14000	/	17000-19000	2600	11
6015-4BD	M18 X 1.5	60	4	15	15	9000-10000	10000-11000	/	2200	11
6015-4FD	M20 X 1.5	60	4	15	15	9000-10000	/	/	2600	11
6015-6BD	1/2-20UNF	60	6	15	15	19000-20500	/	23000-25000	2600	11
5015-6BD	1/2-20UNF	50	6	15	15	17000-19000	/	23000-25000	2000	11
5020-4BD	1/2-20UNF	50	4	20	15	11000-12000	12000-13500	14500-16000	1500	8
5020-6BD	1/2-20UNF	50	6	20	15	19000-21000	/	22500-25000	2000	10
4020-6BD	1/2-20UNF	40	6	20	15	13500-15000	/	/	1500	10
4020-4BD	1/2-20UNF	40	4	20	15	8500-9300/ 9500-10500	10000-11000	10500-11500	900	8
3535-2BD	M8 X 1	35	2	35	25	/	/	4500-5000	600	9
3535-4BD	M8 X 1	35	4	35	20	6600-7400	/	9000-10000	1000	4
2535-4FD	M8	25	4	35	25	3900-4300	/	/	500	4
2535-4LD	M8	25	4	35	25	3900-4600	/	/	500	4
2535-4QD	M8*1	25	4	35	25	/	6500-7500	/	500	4
2540-4BD	M8	25	4	40	30	4500-5300	/	/	500	3
2040-2BD	M8	20	2	40	40	1100-1300	1150-1350	/	300	2

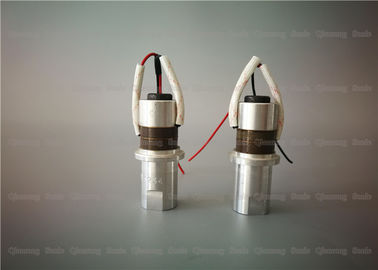

High Frequency 40Khz 200w Ultrasonic Welding Transducer with Grey Piezoelectric Ceramics

High Frequency 40Khz 200w Ultrasonic Welding Transducer With Grey Piezoelectric Ceramics 0

High Frequency 40Khz 200w Ultrasonic Welding Transducer With Grey Piezoelectric Ceramics 1

High Frequency 40Khz 200w Ultrasonic Welding Transducer With Grey Piezoelectric Ceramics 2
