700w Piezoelectric Transducer Ultrasound With 4pcs PZT4 Piezoelectric Ceramics
  • name
  • name
  • name
  • name

700w Piezoelectric Transducer Ultrasound With 4pcs PZT4 Piezoelectric Ceramics

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-3030-4BZ
Products Name:
Piezoelectric Transducer Ultrasound
Frequency:
30 Khz
Output Power:
700 Watt
Joint Bolt:
M10
Ceramic Disc Diameter:
30mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
6.2-7.2nf
Amplitude:
6um
Highlight:

ultrasonic piezo transducer

,

high frequency ultrasonic transducer

Product Description

High Frequency 700w 30Khz Ultrasonic Transducer with 4pcs PZT4 Piezoelectric Ceramics





Specifications:



Model QR-3030-4BZ
Frequency 30khz
Output power 700 watt
Joint bolt M10
Ceramic disc Diameter 30mm
Qty of ceramic discs 4pcs
Capacitance 6.2-7.2nf
Amplitude 6 um
Application Plastic welding machine





Parameters:



The columnar type NTK TYPE

Item No.



Connect screw



Ceramic dia (mm)



 Qty of Ceramic (pc)

Frequency (khz)



 Capacitance

power (W)


Yellow Grey Black
7015-4BZ M20 X 1.5 70 4 15 12500-14000   17000-19000 2600
6015-4BZ M20 X 1.5 60 4 15 8000-10000 10000-12000 12500-13500 2200
6015-6BZ M20 X 1.5 60 6 15 14000-16000   19500-21000 2600
5015-4BZ M18 X 1.5 50 4 15 12000-13000 13000-14300 15000-17000 1500
4015-4BZ M16 X 1 40 4 15 10000-11000 10500-11500   700
5520-4BZ M18 X 1 55 4 20 10000-11000 10500-11500 14300-20000 2000
5020-6BZ M18 X 1.5 50 6 20 18500-20000   22500-25000 2000
5020-4BZ M18 X 1.5 50 4 20 11000-13000 13000-15000 15000-17000 1500
5020-2BZ M18 X 1.5 50 2 20 6000-6500 6500-7000 8000-9000 800
5020-4CZ M18 X 1.5 50 4 20 11000-12000 13000-14000 14500-16000 1500
5020-4HZ M18 X 1.5 50 4 20     11000-12000 1500
5020-4BL M18 X 1.5 50 4 20 11000-12500     1500
4020-4BZ 1/2-20UNF 40 4 20 9000-10000 9500-11000   900
4020-2BZ 1/2-20UNF 40 2 20   4800-5500   500
3820-4BZ 1/2-20UNF 38 4 20 6500-7500     800
The columnar type NTK TYPE

Item No.



Connect screw



Ceramic dia (mm)



 Qty of Ceramic (pc)

Frequency (khz)



 Capacitance

power (W)


Yellow Grey Black
5025-2BZ M12 X 1 50 2 25 5000-5600   7000-8000 500
3828-2BZ 1/2-20UNF 38 2 28 3800-4300     500
3828-4BZ 1/2-20UNF 38 4 28 7600-8500   10500-12000 800
3028-2BZ 3/8-24UNF 30 2 28 2700-3100 3400-3800   400
3028-4BZ M10*1 30 4 28   6000-7000   700
2528-4FZ M8 X 1 25 4 28 3900-4300     400
2528-2FZ M8 X 1 25 2 28 1950-2200 2200-2500   300
3030-4BZ M10 30 4 30   6200-6900   700
3035-2FZ 3/8-24UNF 30 2 35 2700-3100     500
3035-4BZ M10 X 1 30 4 35 5000-6200     800
2535-2FZ M8 X 1 25 2 35 1900-2200     400
2540-2BZ 3/8-24UNF 25 2 40   2000-2300   500
3040-4BZ M10 30 4 40 5500-6200     1000
3050-4BZ M8 30 4 50 5500-6200     600
1560-2BZ M6 X 0.75 15 2 60     700-800 100





Application:



Ultrasonic technology is a widely used non-destructive testing technology based on acoustic theory and is used in electronics, communications, medicine, biology and physics. In modern detection technology, the transducers developed by ultrasonic technology are getting more and more attention because of their high sensitivity and high precision.
Transducers commonly used in the detection process are: piezoelectric transducers, magnetostrictive transducers, electromagnetic transducers and laser transducers. The most commonly used is a piezoelectric transducer, whose core component is a piezoelectric wafer. The piezoelectric wafer can be deformed under the action of pressure, resulting in polarization of the wafer itself, and positive and negative bound charges appear on the surface of the wafer, and this effect is a piezoelectric effect. Moreover, the piezoelectric effect is reversible, that is, deformation occurs after a voltage is applied to the wafer. In the detection process, the ultrasonic effect can be generated by the inverse piezoelectric effect of the ultrasonic probe, and the piezoelectric effect is used to achieve the purpose of receiving the ultrasonic wave.

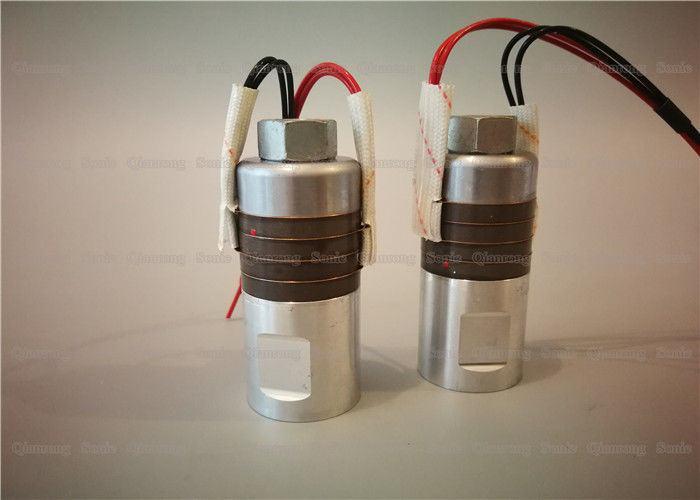

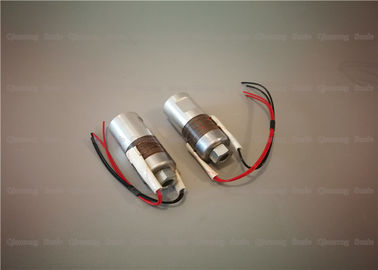

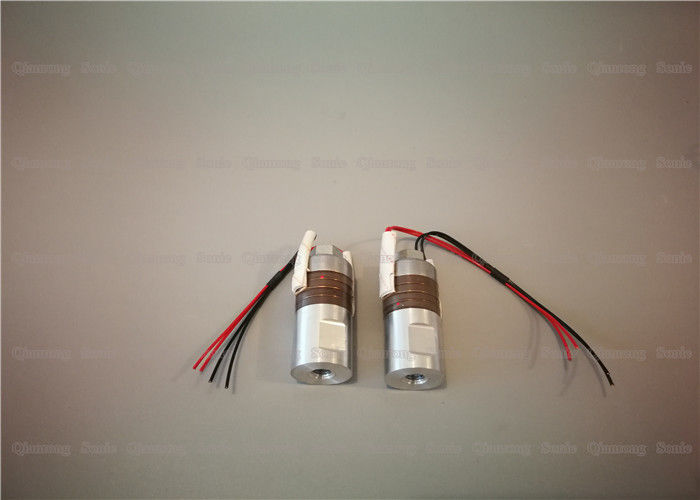

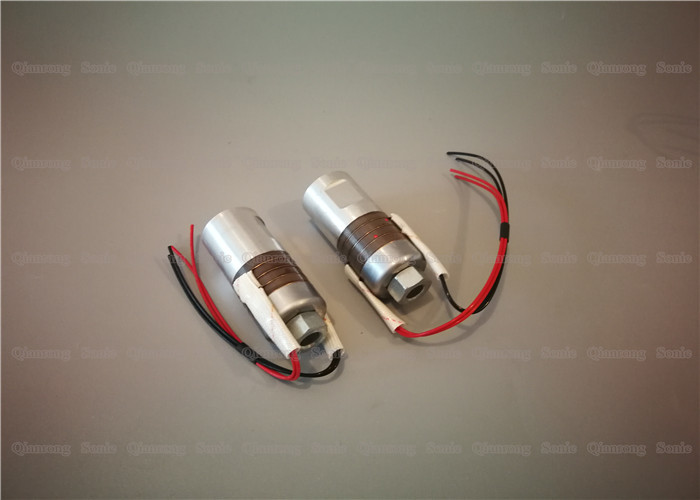

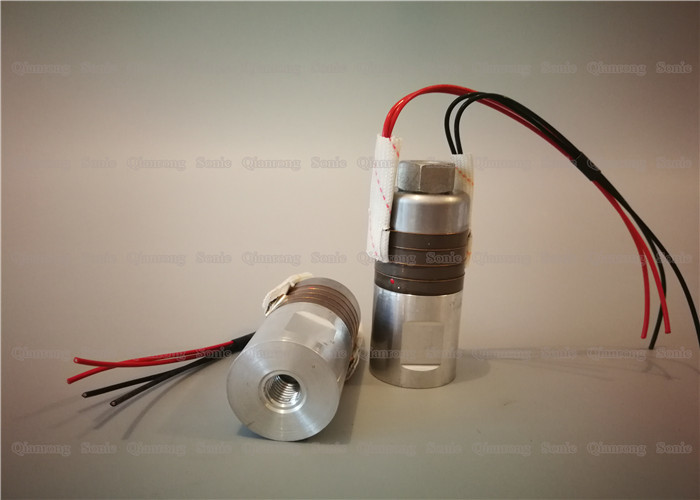

High Frequency 700w 30Khz Ultrasonic Transducer with 4pcs PZT4 Piezoelectric Ceramics





700w Piezoelectric Transducer Ultrasound With 4pcs PZT4 Piezoelectric Ceramics 0





700w Piezoelectric Transducer Ultrasound With 4pcs PZT4 Piezoelectric Ceramics 1





Tags:

high frequency ultrasonic transducer,

ultrasonic piezo transducer,

piezoelectric transducer ultrasound
