220v Ultrasonic Fume Hood Coating System FS630

Ultrasonic Fume Hood Coating System FS630

Description:

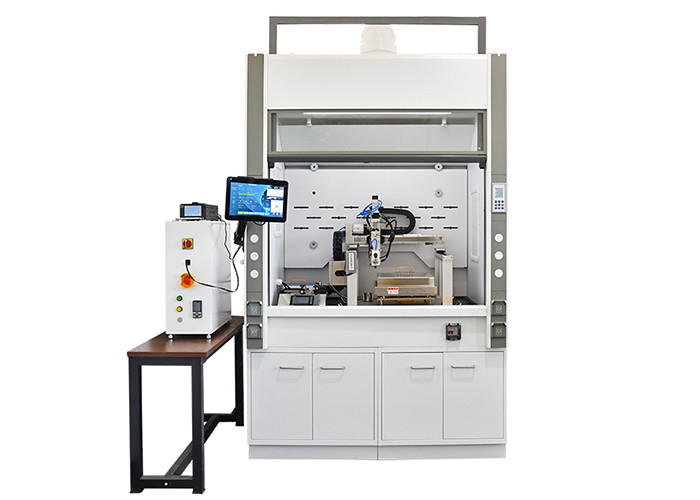

The fume hood type ultrasonic precision spraying machine is a specially developed equipment for working conditions where a large amount of exhaust gas is generated during spraying. Suitable for spraying solutions with light toxicity and pollution, excess atomized exhaust gas can be discharged through the exhaust system. It is also suitable for spraying workpieces that require high-temperature heating, and gases that generate high temperatures can also be discharged through the exhaust system. The entire device has a simple and elegant structure, with complete functions, mainly including YZ three-axis servo motion system and top exhaust system. It can be equipped with any ultrasonic nozzle from FUNSONIC, as well as a precision injection pump, a digital carrier gas system, and an optional ultrasonic dispersion liquid supply system.

Parameters:

Conventional Arrangement

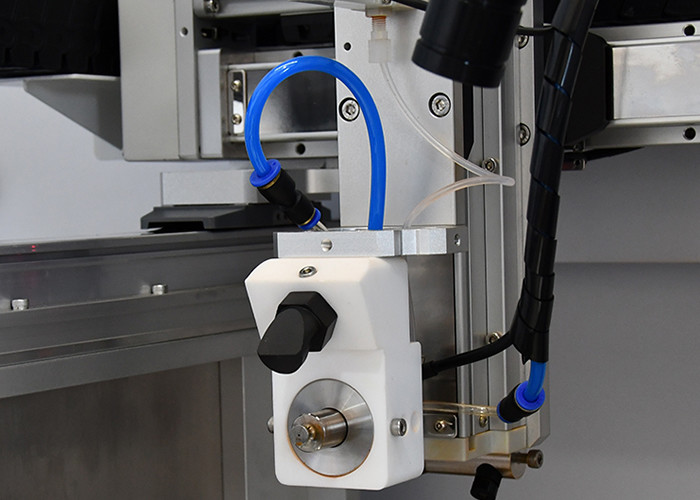

• 1. Ultrasonic atomizing nozzle: FUNSONIC has developed and produced dozens of ultrasonic nozzles, which can be suitable for various working conditions and film thickness requirements.

  2. Ultrasonic CNC power supply: Fully CNC precision power supply, fully intelligent frequency following, frequency tracking, stable performance

  3. Liquid supply equipment: precision injection pump+biological grade sampler, liquid supply accuracy of 0.1 μ L/min

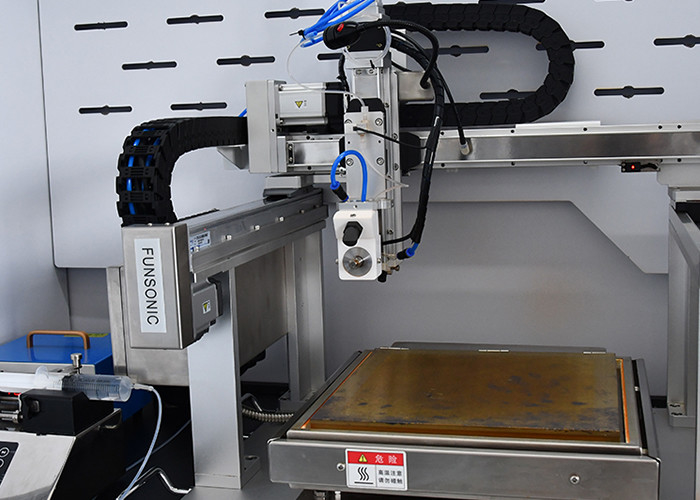

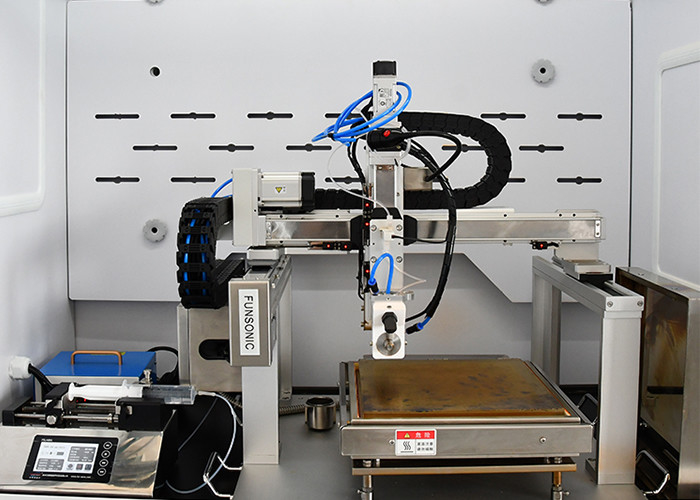

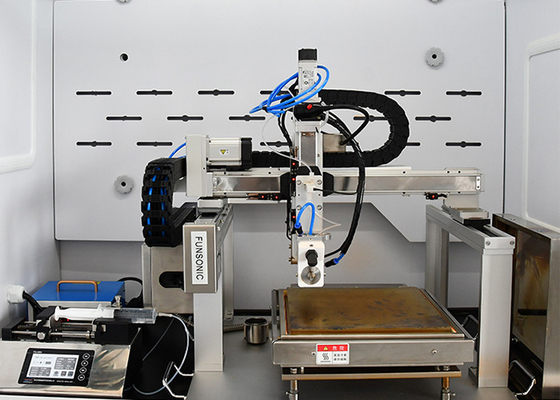

  4. Motion system: XYZ three-axis imported servo motor+precision screw module

  6. Top exhaust system: Excess atomized exhaust gas and high-temperature gases can be discharged through the exhaust system

Ultrasonic Fume Hood Coating System FS630
