20khz 3000w Ultrasonic Metal Welder 0.5-20mm2 Apply In Wire Copper

20khz 3000w Ultrasonic Metal Welder 0.5-20mm2 Apply In Wire Copper

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden carton
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 1000 pcs per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-X2030A
Products Name:
Ultrasonic Wire Harness Welding Machine
Frequency:
20KHZ
Power:
3000W
Voltage:
220V
Welding Area:
0.5-20mm2
Air Pressure:
0.05-0.9MPa
Generator Size:
540*380*150mm
Dimension Of Horn:
550*220*240mm
Highlight:

ultrasonic wire splicing machine

,

ultrasonic welding equipment

Product Description

20khz 3000w Ultrasonic Metal Welder 0.5-20mm2 Apply In Wire Copper


Description:

Copper wire harness pressure square ultrasonic welding machine uses copper wire square welding machine equipment to use ultrasonic principle for the pressure line of automobile wire harness welding machine, Qianrong Automation Equipment Co., Ltd. specializes in producing 0.75mm2, 1.0, 1.5, 2.0, 2.5mm2, 4mm2 6mm2 loose copper wire is formed by square molding. The welding head transmits the received vibration energy to the joint of the workpiece to be welded. In this region, the vibration energy is converted into heat energy by friction, and the atomic chain of the metal surface is broken, and the size of the reassembled wire harness compact can be adjusted according to product requirements.



Parameters:



Item No QR-X2020A QR-X2030A QR-X2040A
Power 2000W 3000W 4000W
Welding Area 0.5-16mm2 0.5-20mm2 1-30mm2
Air Pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20KHZ 20KHZ 20KHZ
Voltage 220V 220V 220V
Weight of horn 18KG 22KG 28KG
Dimension of Horn 530*210*230mm 550*220*240mm 550*250*240mm
Generator Size    540*380*150mm 540*380*150mm 540*380*150mm



Advantaged of Copper wire square welding machine equipment welding:

(1) The two welded objects overlap, and are joined into a solid form by ultrasonic vibration and pressure bonding, the joining time is short, and the joint portion does not produce a cast structure (rough surface) defect;

(2) Compared with ultrasonic welding and electric resistance welding, the mold has a long service life, less mold repairing and replacement time, and is easy to realize automation;

(3) Ultrasonic welding can be performed between different metals of the same metal, which consumes much less energy than electrical welding;

(4) Compared with other pressure welding, ultrasonic welding requires less pressure and the deformation amount is below 10%, while the workpiece deformation of cold pressure welding is 40%-90%;

Adopting advanced ultrasonic welding technology, the quality of wire harness terminal welding products is high; the wire harness welding equipment for copper wire square welding machine equipment is the fusion of metal molecular layer, suitable for body welding, without destroying the original workpiece; low requirements on welding metal surface, oxidation or Electroplating can be welded; welding without sparks, resistance and current is very small, suitable for sealing welding of precision parts, drugs and explosive materials; low temperature welding, very thin metal is welded to thick metal without causing damage to thin metal.

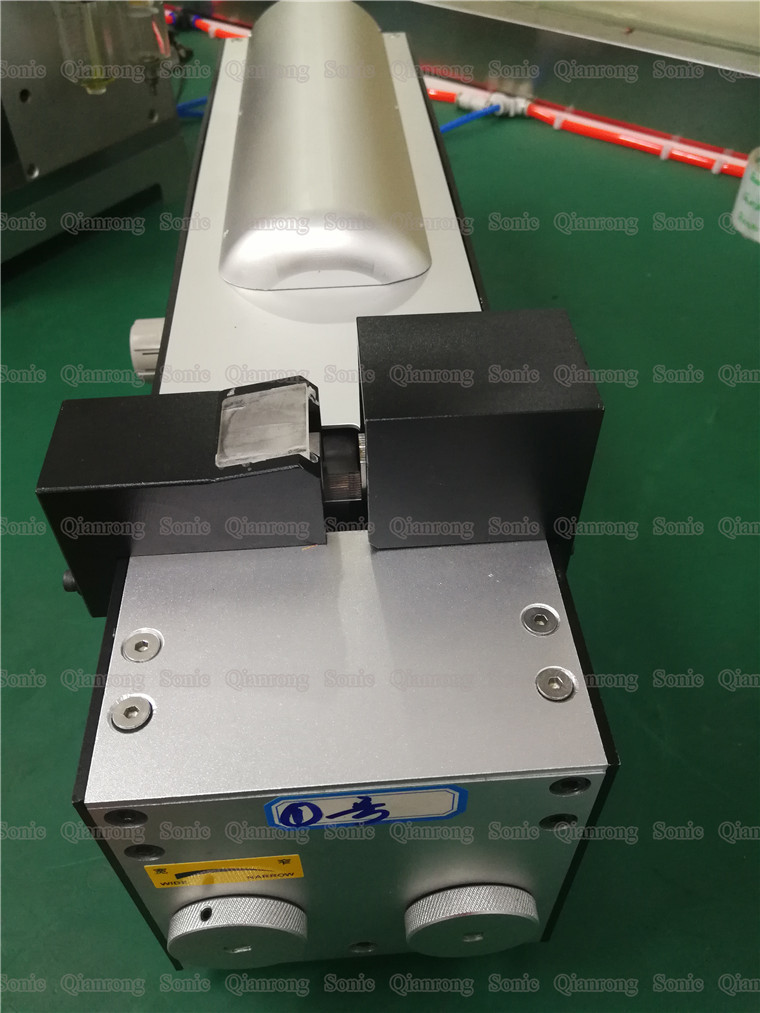

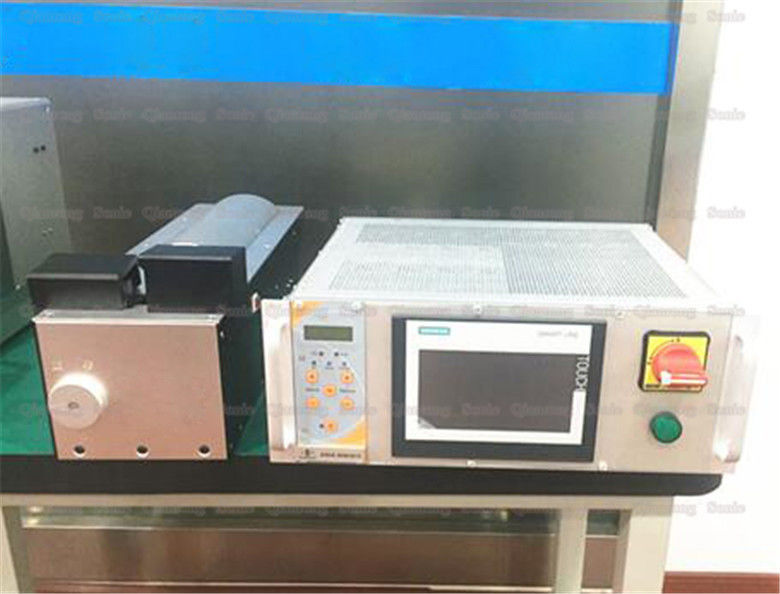

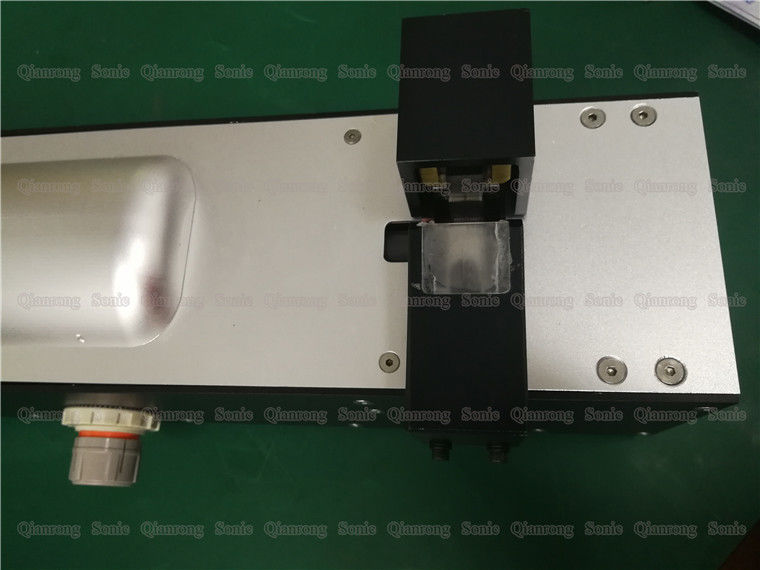

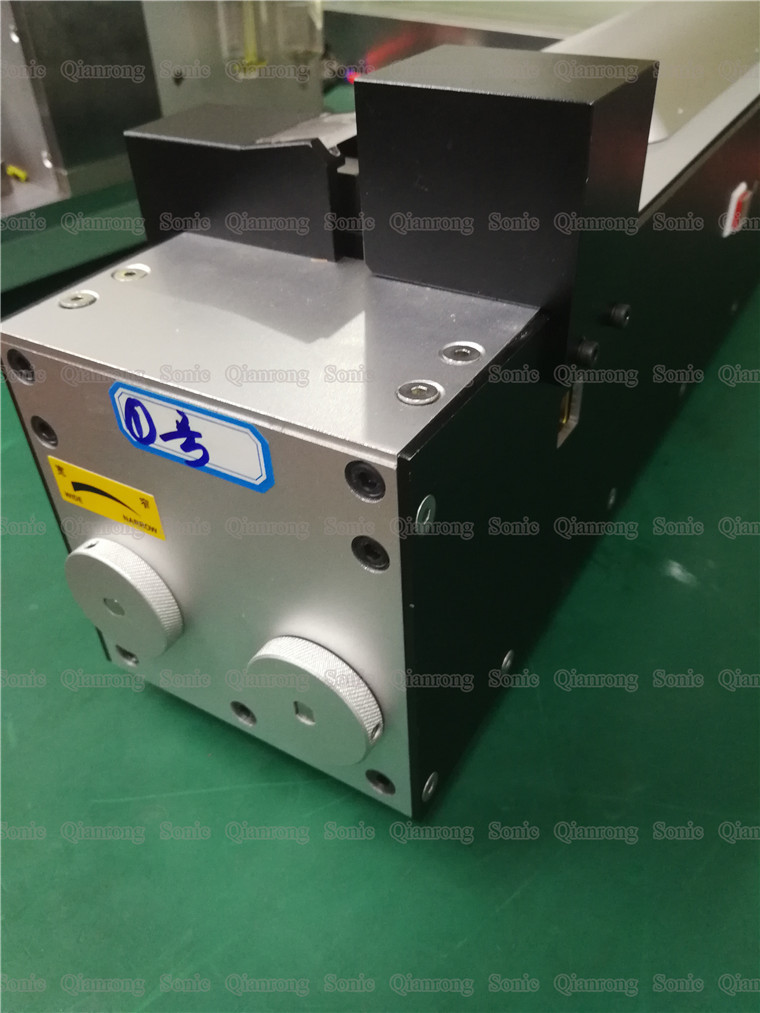

20khz 3000w Ultrasonic Metal Welder 0.5-20mm2 Apply In Wire Copper

 20khz 3000w Ultrasonic Metal Welder 0.5-20mm2 Apply In Wire Copper 0



20khz 3000w Ultrasonic Metal Welder 0.5-20mm2 Apply In Wire Copper 1

20khz 3000w Ultrasonic Metal Welder 0.5-20mm2 Apply In Wire Copper 2
