Vibration Straight Seam Ultrasonic Metal Welding

Vibration Straight Seam Ultrasonic Metal Welding

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-G2030A
Products Name:
Ultrasonic Metal Welding
Frequency:
20KHZ
Power:
3000W
Voltage:
380V
Welding Speed:
2-15m/min
Dimension Of Generator:
540*380*150mm
Highlight:

20KHZ ultrasonic welding process

,

Straight Seam Ultrasonic Welding Machine

,

Straight Seam Ultrasonic Metal Welding

Product Description

High Frequency Vibration Ultrasonic Straight Seam Metal Seam Welder for Solar Panel





Description:

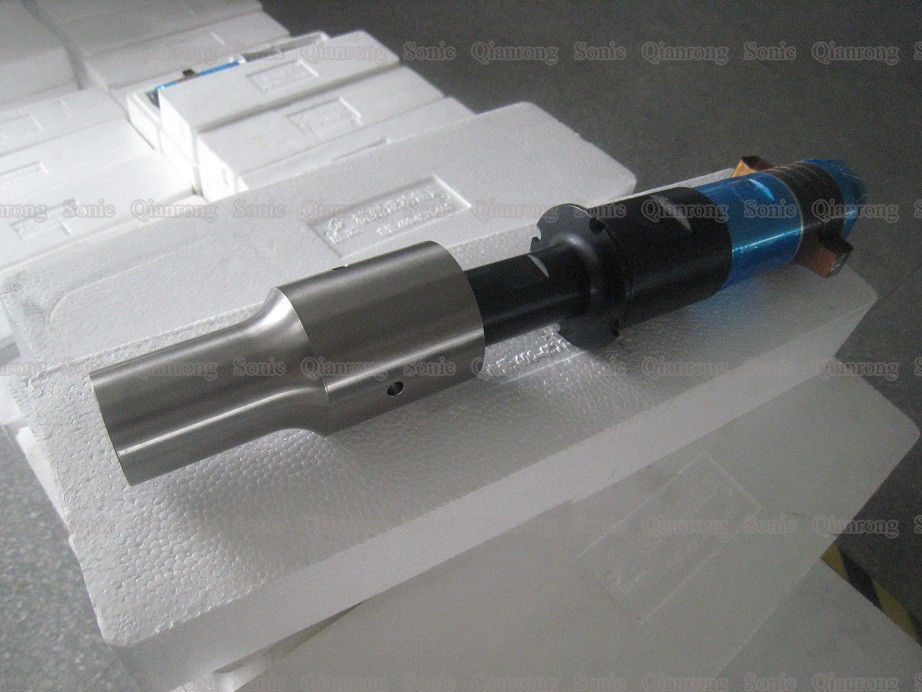

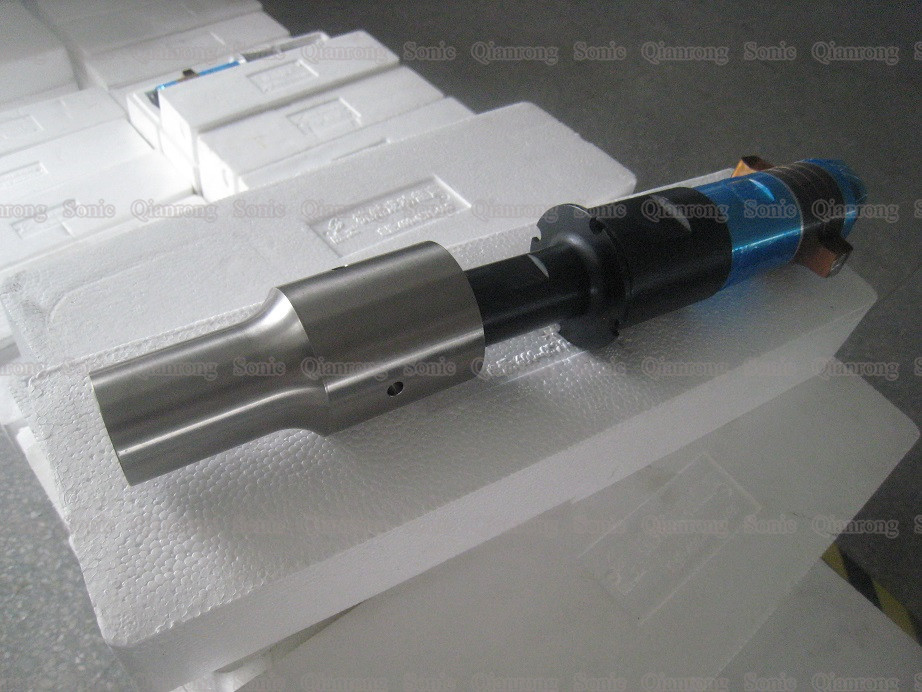

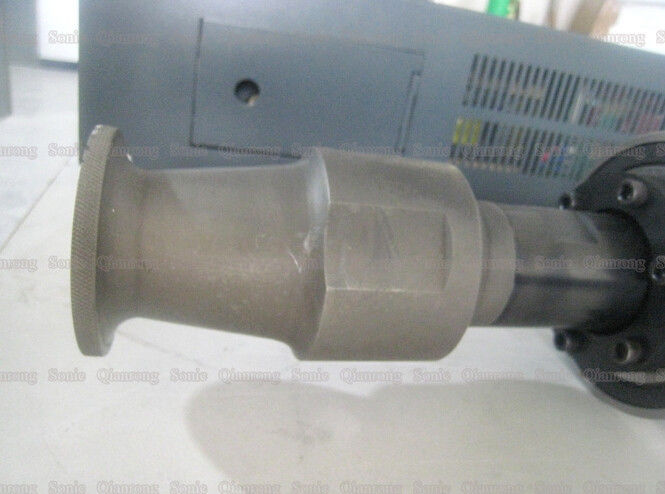

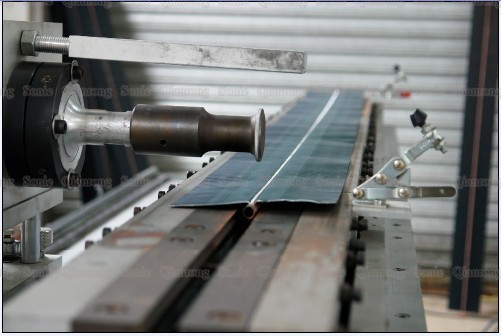

Solar metal seam welding using ultra-new ultrasonic metal welding technology ultrasonic generator + continuous rolling welding tool head (welding head) solar ultrasonic metal welding equipment is to install the ultrasonic welding system on the equipment gantry, the welding system in the gantry The X-axis direction is moved, and the workbench under the gantry is moved in the Y-axis direction to complete the welding of the product with a width of 1-2.5 meters.





Specifications:



Item No QR-G2030A
Power 3000W
Air Pressure 0.05-0.9MPa
Frequency 20KHZ
Voltage 380V
Dimension of device Customized
Dimension of Generator 540*380*150mm
Working Mode Continuous
Welding Speed 2-15m/min





Features:



1. set the layout name: ultrasonic solar rolling welder

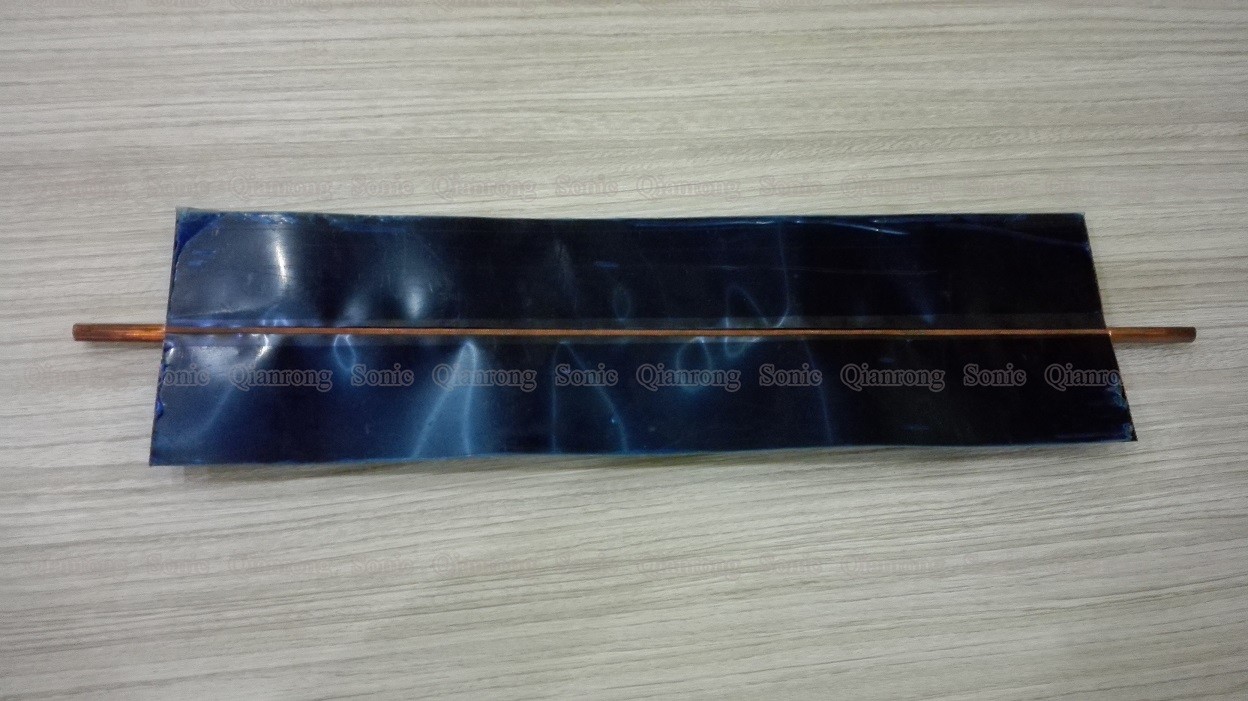

2.  welding tools: solar heat absorption board and copper tube

3. welding area: factory customization

4. copper thickness: ≤1.5mm

5. welding medium: no need for other media

6. welding request: the solder joint is strong, the resistance is small

7. welding service is fast, high output value;

8. small resistance, good electrical conductivity, good thermal conductivity;

9. Short welding time, no flux required;

10. welding without sparks, environmental protection and tranquility;

11. body welding, saving welding costs.





Hangzhou Qianrong Automation Equipment Co., Ltd. is a professional manufacturer of ultrasonic metal welding equipment. After 10 years of precipitation, the company has gathered a group of researchers who have been engaged in ultrasonic basic research and ultrasonic welding application technology for a long time. After long-term research and experimentation, four series of welding equipment have been launched: spot welding, wire harness, sealing and cutting, and seam welding. Our products are widely used in various fields such as automotive, refrigeration, solar energy, battery, and electronics.



Hangzhou Qianrong Automation Equipment Co., Ltd. specializes in metal ultrasonic welding to provide customers with professional metal welding solutions and ultrasonic welding equipment. Bangneng ultrasonic technology has established itself as the development strategy target of China's ultrasonic metal welding market from the beginning. This goal is derived from the three unique advantages of Qianrong Ultrasound: the core technology that competes with the quality of imported products such as SCHUNK; the price based on half the price of imported products; the fast and thoughtful local service.
