Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-X2040A |
Minimum Order Quantity: | 1 unit |
Price: | Negotation |
Packaging Details: | Packed in wooden carton |
Delivery Time: | 15 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1000 pcs per month |
Products Name: | Ultrasonic Wire Harness Welding Machine | Frequency: | 20KHZ |
---|---|---|---|
Power: | 4000W | Voltage: | 220V |
Welding Area: | 1-30mm2 | Air Pressure: | 0.05-0.9MPa |
Generator Size: | 540*380*150mm | Dimension Of Horn: | 550*250*240mm |
Highlight: | ultrasonic wire splicing machine,handheld ultrasonic welder |

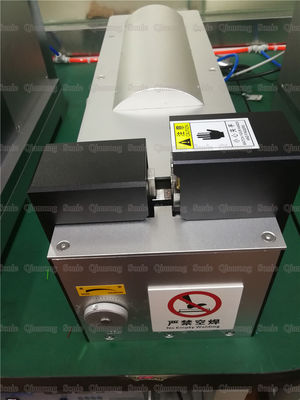

High Power Ultrasonic Harness Welding for Motorcycle Wiring Harness 20Khz
Description:
Ultrasonic automotive wire harness welding uses ultrasonic metal welding technology to weld metal wire harnesses, and converts high-frequency electrical energy into a mechanical vibration energy through a transducer to act on the metal wire harness. When the temperature of vibration friction heat reaches the melting point of the wire metal, the wire harness It will melt, and the wire harness will apply a certain pressure while the wire bundle is being fused. Finally, the wire harness welding device moves away and stops the mechanical vibration, which will form a wire harness welding effect. During the wire harness welding process, no current is passed through the weldment, and no welding arc is generated. Because ultrasonic welding does not have problems such as heat conduction and electrical resistivity, it is undoubtedly a kind of welding for non-ferrous metal wire harnesses. In an ideal metal wire harness welding system, the wire harness welding effect is generally square.
Parameters:
Item No | QR-X2020A | QR-X2030A | QR-X2040A |
Power | 2000W | 3000W | 4000W |
Welding Area | 0.5-16mm2 | 0.5-20mm2 | 1-30mm2 |
Air Pressure | 0.05-0.9MPa | 0.05-0.9MPa | 0.05-0.9MPa |
Frequency | 20KHZ | 20KHZ | 20KHZ |
Voltage | 220V | 220V | 220V |
Weight of horn | 18KG | 22KG | 28KG |
Dimension of Horn | 530*210*230mm | 550*220*240mm | 550*250*240mm |
Generator Size | 540*380*150mm | 540*380*150mm | 540*380*150mm |
The principle of ultrasonic metal welding is to transmit high-frequency vibration waves to two metal surfaces to be welded. Under pressure, the two metal surfaces rub against each other to form a fusion between molecular layers, which has the advantages of being fast and energy-saving. High fusion strength, good electrical conductivity, no sparks.
Features of Welding head :
1. Ultrasonic welding head is a general term for all ultrasonic transmitting ends, so the welding head must work in resonance state.
2. The waveform made by each welding head is strictly calculated and final tested by our company.
3. Our company has rich experience in making welding heads, ensuring stable quality and delivery time.
4. Our company has cooperated with many high-quality materials suppliers for a long time, with quality assurance, timely delivery and complete quality.
5.Using imported high-quality alloy steel, the ultrasonic welding head is high in precision and long in durability.
Application range:
1. Ultrasonic wire harness welding machine can weld wire harnesses of 0.5 square millimeters to 50 square millimeters. It is mainly used in galvanic connection of automobile wiring harness, wire head forming, wire mutual welding, multiple wires and butt joints and soldering into wire knots.
2. Ultrasonic wire harness welding machine trial material copper and aluminum wire harness, metal braided wire harness, metal stranded wire, wire harness terminal, enameled wire, motor lead wire and wire harness and other copper wire, aluminum wire welding.
3. Ultrasonic wire harness welding machine is widely used in automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instrumentation and other fields.
