| Products Name: | Ultrasonic Welding Transducer | Frequency: | 20 Khz |
|---|---|---|---|
| Output Power: | 1500 Watt | Joint Bolt: | M18*1.5 |
| Ceramic Disc Diameter: | 50mm | Qty Of Ceramic Discs: | 4pcs |
| Capacitance: | 11-16nf | Amplitude: | 10 Um |
| High Light: | ultrasonic high power transducer,high frequency ultrasound transducer,1500w Ultrasonic Oscillator |
||

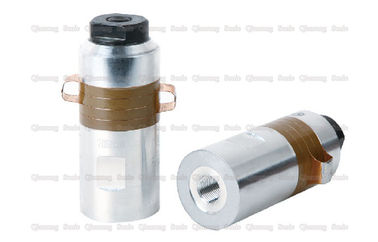

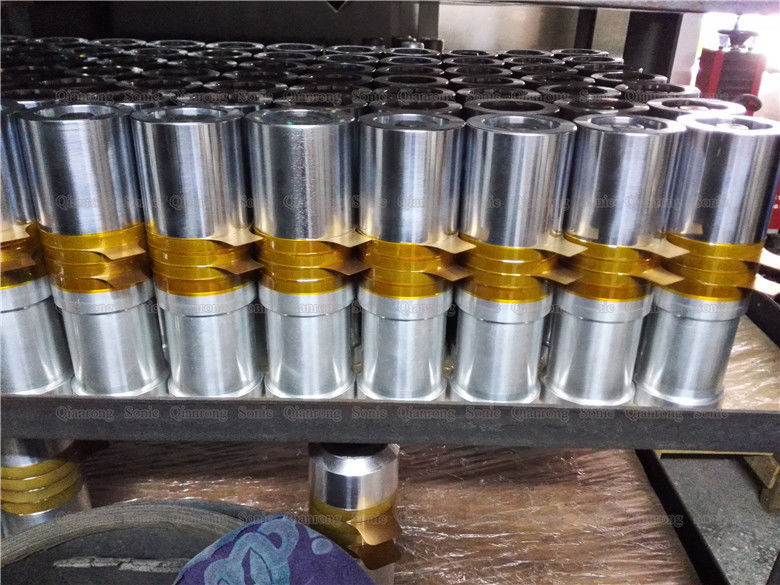

20Khz 1500w NTK Type Ultrasonic Welding Transducer with High Power
Description:
The ultrasonic welding machine transducer system consists of two parts: a transducer, an amplifier (also called a horn), and the transducer is used to convert electrical signals into mechanical vibration signals and convert electrical signals into mechanical vibration signals. There are two physical effects that can be applied.
Specifications:
| Model | QR-5020-4BZ |
| Frequency | 20khz |
| Output power | 1500 watt |
| Joint bolt | M18*1.5 |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11-16nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |
Functional structure of ultrasonic transducer:
(1), the matching layer is the acoustic window
(2) Piezoelectric ceramic disk transducer
(3), backing
(4), lead cable
(5), characterized in that it also includes a Cymbal array receiver, which is led by a cable
(6), 8 to 16 Cymbal transducers
(7), metal ring
(8), rubber washer
(9), composition; Cymbal array receiver is located above the disc-type piezoelectric transducer 3; piezoelectric ceramic disc transducer is used as a basic ultrasonic transducer, which transmits and receives ultrasonic signals; Cymbal array reception The device is located above the disk piezoelectric transducer as an ultrasonic receiver for receiving Doppler echo signals outside the band of the disk transducer.
20Khz 1500w NTK Type Ultrasonic Welding Transducer with High Power
