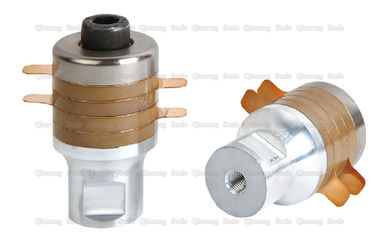

Ceramic Ultrasonic Piezoelectric Transducer
  • name
  • name
  • name
  • name

Ceramic Ultrasonic Piezoelectric Transducer

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-3535-4BD
Products Name:
Ultrasonic Welding Transducer
Frequency:
35 Khz
Output Power:
800 Watt
Joint Bolt:
M8*1
Ceramic Disc Diameter:
35mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
6.6-10nf
Amplitude:
6um
Highlight:

ultrasonic piezo transducer

,

high frequency ultrasonic transducer

,

Ceramic Ultrasonic Piezoelectric Transducer

Product Description

35MM Diameter Ceramic 35Khz 800w Ultrasonic Welding Piezoelectric Transducer





Description:



Ultrasonic transducers are actually piezoelectric ceramics whose frequency is the same as their resonant frequency, using the piezoelectric effect of the material to convert electrical energy into mechanical vibration. Under normal circumstances, ultrasonic waves are first generated by an ultrasonic generator, converted into mechanical vibration by an ultrasonic transducer, and ultrasonic waves are generated by an ultrasonic derivation device and an ultrasonic receiving device.





Specifications:



Model QR-3535-4BD
Frequency 35khz
Output power 800 watt
Joint bolt M8*1
Ceramic disc Diameter 35mm
Qty of ceramic discs 4pcs
Capacitance 6.6-10nf
Amplitude 6 um
Application Plastic welding machine





Method for detecting piezoelectric ceramic sheets:


Piezoelectric ceramic sheets are a synthetic piezoelectric material. When subjected to external pressure, charges are generated on both sides, and the amount of charge is proportional to the pressure. This phenomenon is called the piezoelectric effect. Piezoelectric ceramics have a piezoelectric effect, that is, deformation occurs under the action of an external electric field, so a piezoelectric ceramic sheet can be used as a sounding element.
By using the piezoelectric effect of the piezoelectric ceramic sheet, the multimeter can be used to judge whether it is good or bad.

Take the two poles of the piezoelectric ceramic piece out of the two wires, then place the ceramic piece on the table flat, connect the two leads to the two test leads of the multimeter, turn the multimeter to the minimum current block, and then gently press the ceramic piece with the pencil eraser. If the pointer of the multimeter is obviously oscillated, the ceramic piece is intact, otherwise the description is damaged.





35MM Diameter Ceramic 35Khz 800w Ultrasonic Welding Piezoelectric Transducer



Ceramic Ultrasonic Piezoelectric Transducer 0





Ceramic Ultrasonic Piezoelectric Transducer 1
