High Flow 6000w Filter Cartridge End Cap Welding Machine For Welding Plastic End Caps

MOQ: 1 unit
Price: Negotation
Standard Packaging: packed in wooden case
Delivery Period: 20 workdays
Payment Method: T/T
Supply Capacity: 100 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
AY-LXDH1640
Products Name:
High Flow Filter Cartridge End Caps Welder
Power:
6000w
Voltage:
380V 50HZ
Air Pressure:
6Kg/c㎡
Heating Accuracy:
±2℃
Temperature Range:
Normal~ 400℃
Welding Speed:
30s/pcs
Gross Weight:
800kgs
Highlight:

ultrasonic welding machine

,

ultra welding machine

Product Description



High Flow 6000w Filter Cartridge End Cap Welding Machine for Welding Plastic End Caps





Description:



The device is a large flow filter end cap welding machine, which is one of the components of the large flow filter production line, and is mainly used for welding the plastic end caps at both ends of the filter core. After welding, it can effectively ensure the sealing and firmness of the skeleton, filter and end cover of the filter.





Technical Parameters:



Item No AY-LXDH1640
Products Name High Flow Filter Cartridge End Caps Welder
Power 6000w
Voltage 380V 50HZ
Air pressure 6Kg/c㎡
Heating Accuracy ±2℃
Temperature Range Normal~ 400℃
Welding Speed 30s/pcs
Dimensions L2000*W1000*H1800
Gross weight 800kgs





Configuration Details:



Touch Screen + PLC: Delta

Circuit breaker: LG

Thermostat: Winpark

Solid State: Shimadan

Guide rail, slider: HIWIN

Auxiliary applicances: IDEC

Pneumatic components: Airtec

Protective Cover: European Standard Aluminum Profile + PMMA

Parts: carton steel 45(S45X) (Galvanized)

Filter cartridge holder: 6061 aluminum plate ( surface anodized)

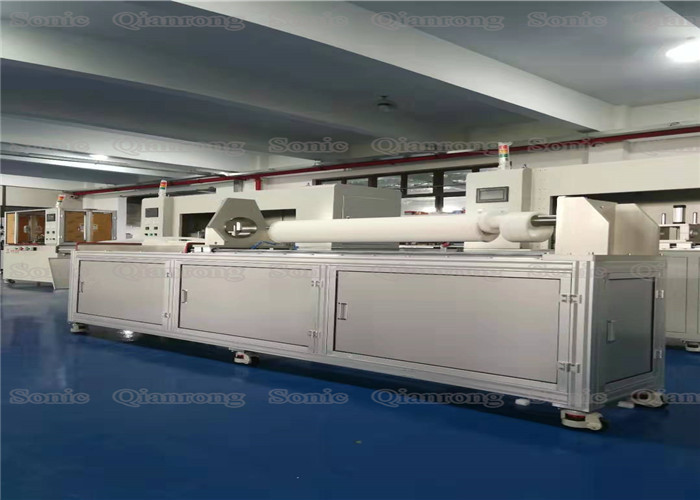

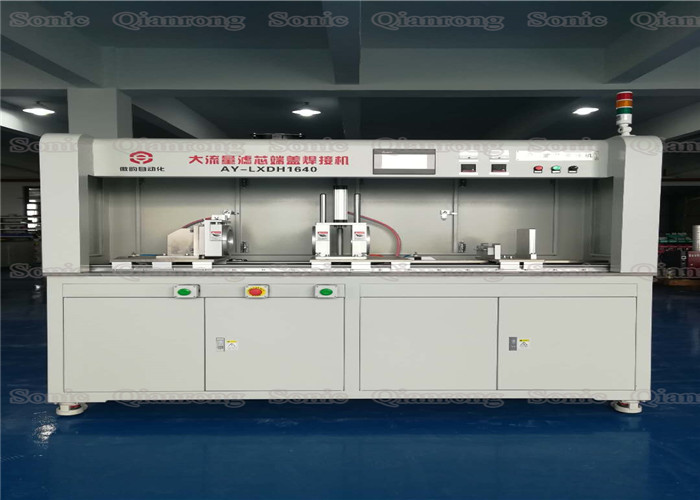

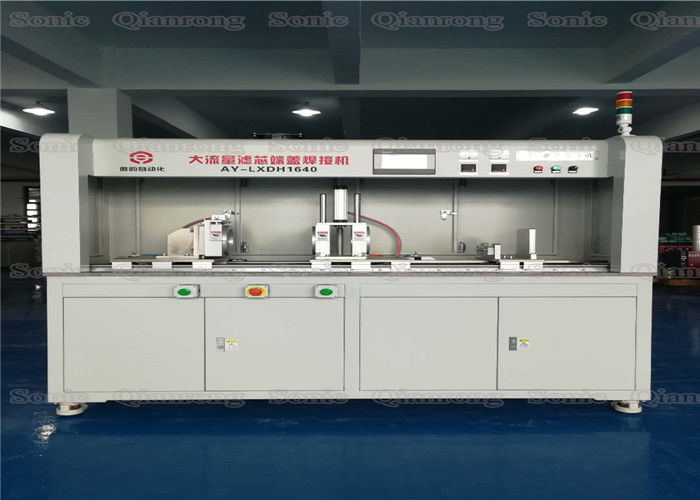

High Flow 6000w Filter Cartridge End Cap Welding Machine for Welding Plastic End Caps





High Flow 6000w Filter Cartridge End Cap Welding Machine For Welding Plastic End Caps 0



High Flow 6000w Filter Cartridge End Cap Welding Machine For Welding Plastic End Caps 1
