3000W Hot Melt Sealing Welding Of Plastic End Caps For Folding Filter Welding Production Line

MOQ: 1 unit
Price: Negotation
Standard Packaging: packed in wooden case
Delivery Period: 20 workdays
Payment Method: T/T
Supply Capacity: 100 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
AY-LXDH6840
Products Name:
Filter Cartridge End Caps Welder
Power:
3000w
Voltage:
380V 50HZ
Air Pressure:
5Kg/c㎡
Heating Accuracy:
±2℃
Temperature Range:
Normal~ 400℃
Welding Speed:
2pcs/min
Gross Weight:
800kgs
Highlight:

ultrasonic welding machine

,

ultra welding machine

Product Description



3000W Hot-melt Sealing Welding of Plastic End Caps for Folding Filter Welding Production Line





Description:



This equipment is a microporous membrane folding filter end cap welding machine. It is one of the equipments of our folding filter production line. It is mainly used for hot-melt sealing welding of plastic end caps at both ends of the filter element. It can effectively ensure the sealing property of the filter element after welding. Firm.





Technical Parameters:



Item No AY-LXDH6840
Products Name Filter Cartridge End Caps Welder
Power 3000w
Voltage 380V 50HZ
Air pressure 5Kg/c㎡
Heating Accuracy ±2℃
Temperature Range Normal~ 400℃
Welding Speed 2pcs/min
Dimensions L2000*W1000*H1800
Gross weight 800kgs





Configuration Details:



Touch Screen + PLC: Delta

Circuit breaker: LG

Thermostat: Winpark

Solid State: Shimadan

Guide rail, slider: HIWIN

Auxiliary applicances: IDEC

Pneumatic components: Airtec

Protective Cover: European Standard Aluminum Profile + PMMA

Parts: carton steel 45(S45X) (Galvanized)

Filter cartridge holder: 6061 aluminum plate ( surface anodized)

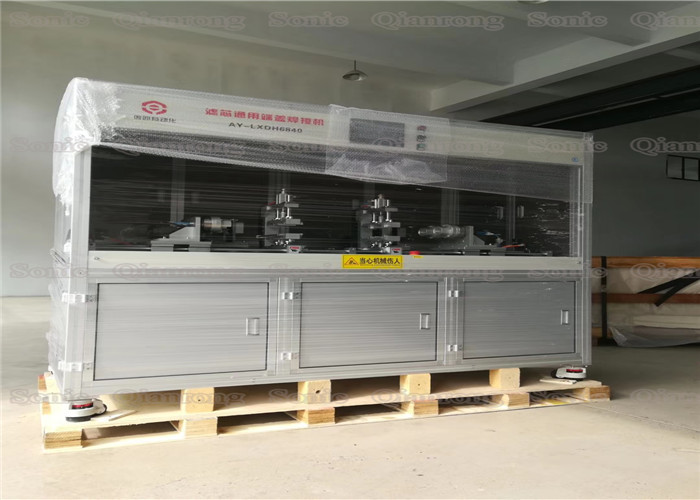

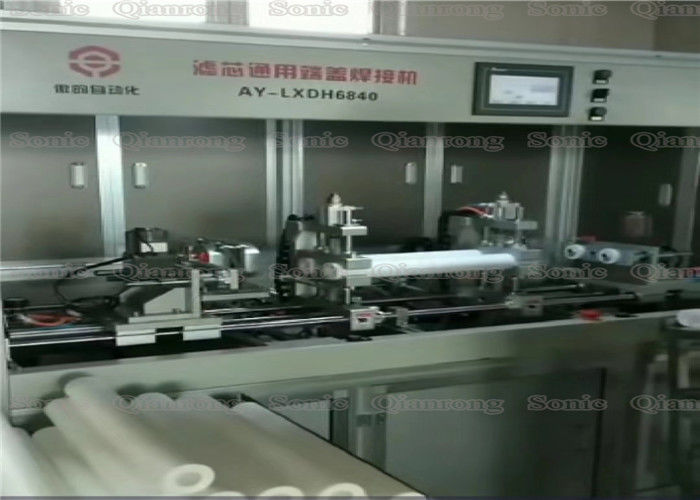

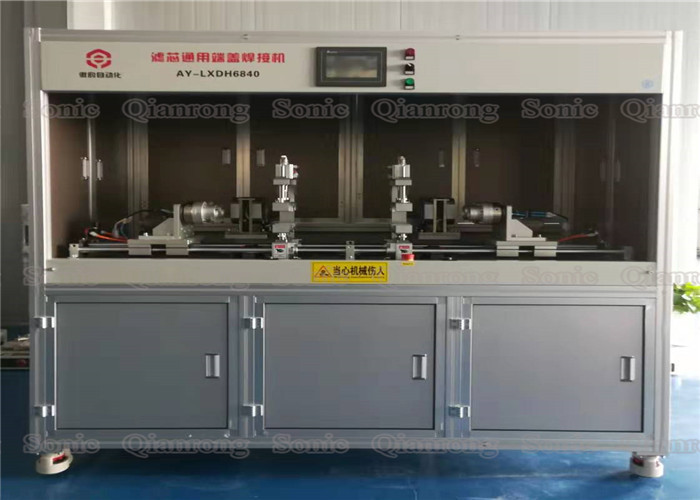

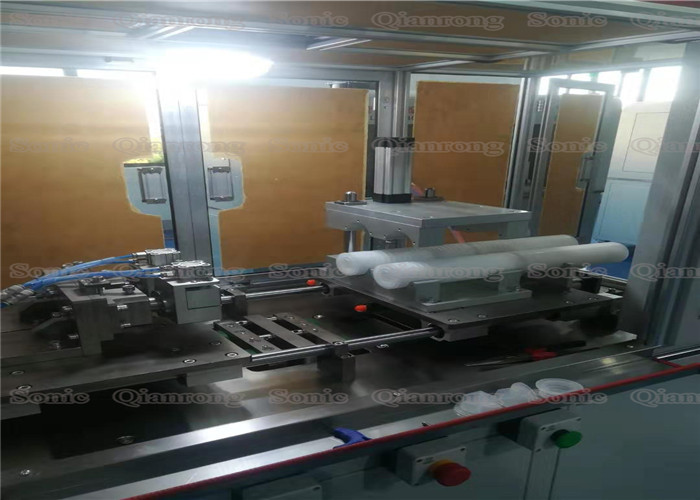

3000W Hot-melt Sealing Welding of Plastic End Caps for Folding Filter Welding Production Line





3000W Hot Melt Sealing Welding Of Plastic End Caps For Folding Filter Welding Production Line 0



3000W Hot Melt Sealing Welding Of Plastic End Caps For Folding Filter Welding Production Line 1
