Microporous Membrane Folding Filter Joint Welding Machine For Hot Melt Welder

MOQ: 1 unit
Price: Negotation
Standard Packaging: packed in wooden case
Delivery Period: 20 workdays
Payment Method: T/T
Supply Capacity: 100 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
AY-LXJK6810
Products Name:
Filter Joint Welding Machine
Power:
3000w
Voltage:
380V 50HZ
Air Pressure:
5Kg/c㎡
Heating Accuracy:
±2℃
Temperature Range:
Normal~ 400℃
Welding Speed:
2pcs/min
Gross Weight:
800kgs
Highlight:

hot melt machine

,

ultra welding machine

Product Description



Microporous Membrane Folding Filter Joint Welding Machine for Hot Melt Welder





Description:

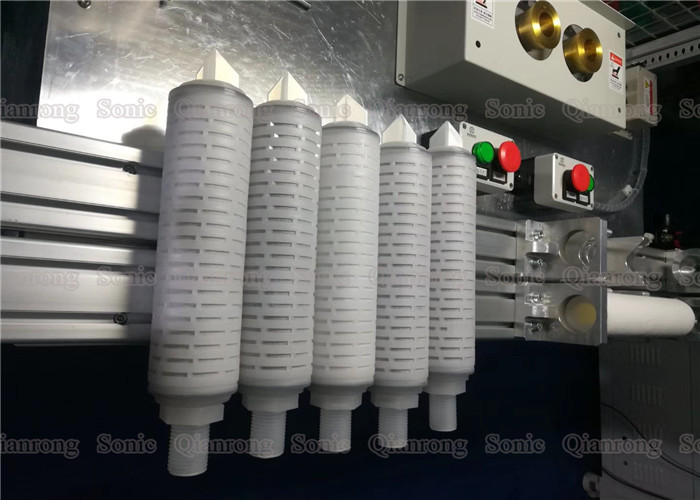

This equipment is a microporous membrane folding filter joint welding machine. It is one of the folding filter production lines of our company. It is mainly used for hot-melt welding of joints at both ends of the filter element. After welding, it can effectively ensure the sealing and firmness of the filter element. The conventional one has a triangular tip, a fin head, a 222 sealing ring head, a 226 sealing ring head, etc., and the device can weld two kinds of joints at one time, and the production efficiency is high.





Technical Parameters:



Item No

AY-LXJK6810
Products Name Filter Joint Welding Machine
Power 3000w
Voltage 380V 50HZ
Air pressure 5Kg/c㎡
Heating Accuracy ±2℃
Temperature Range Normal~ 400℃
Welding Speed 2pcs/min
Dimensions L2000*W1000*H1800
Gross weight 800kgs





Configuration Details:



Touch Screen + PLC: Delta

Circuit breaker: LG

Thermostat: Winpark

Solid State: Shimadan

Guide rail, slider: HIWIN

Auxiliary applicances: IDEC

Pneumatic components: Airtec

Protective Cover: European Standard Aluminum Profile + PMMA

Parts: carton steel 45(S45X) (Galvanized)

Filter cartridge holder: 6061 aluminum plate ( surface anodized)

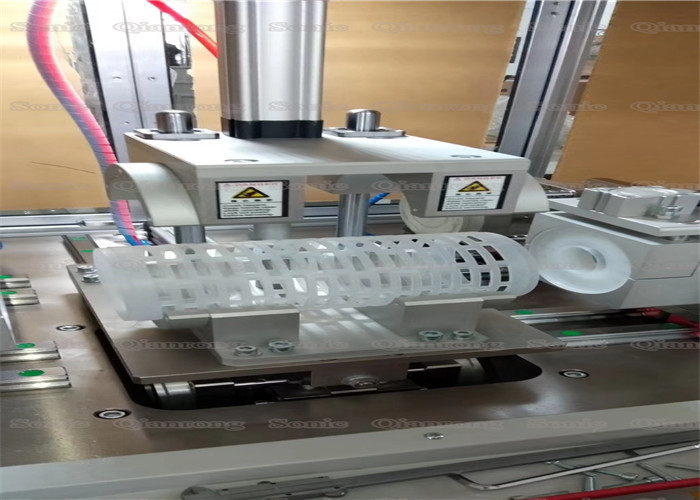

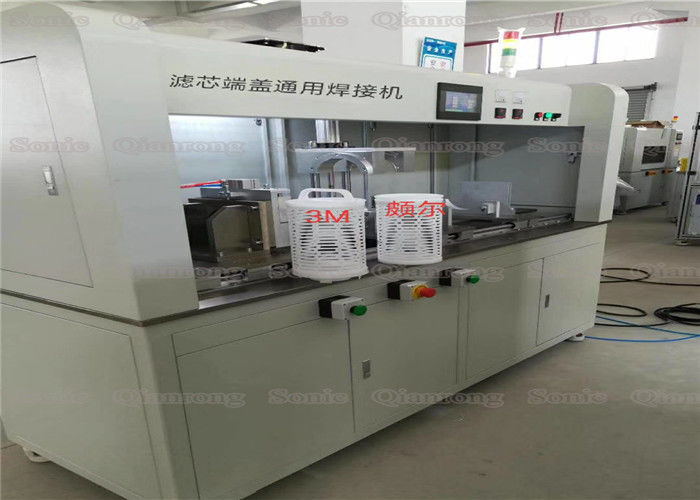

Microporous Membrane Folding Filter Joint Welding Machine for Hot Melt Welder



Microporous Membrane Folding Filter Joint Welding Machine For Hot Melt Welder 0



Microporous Membrane Folding Filter Joint Welding Machine For Hot Melt Welder 1
