2000w Microporous Film Folding Filter For Lengthen 40 Inch Filter Cores

MOQ: 1 unit
Price: Negotation
Standard Packaging: packed in wooden case
Delivery Period: 20 workdays
Payment Method: T/T
Supply Capacity: 100 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
AY-JC8010
Products Name:
Filter Cartridge Outer Cage Extension Welding Machine
Power:
2000w
Voltage:
380V 50HZ
Air Pressure:
5Kg/c㎡
Heating Accuracy:
±2℃
Temperature Range:
Normal~ 400℃
Welding Speed:
30s/pcs
Gross Weight:
600kgs
Highlight:

hot melt machine

,

ultra welding machine

Product Description



2000w Microporous Film Folding Filter for Lengthen 40inch Filter Cores





Description:



The filter core extension machine transfers the heat of the heating plate to the welding surface by electric heating, so that the surface of the plastic part is heated and melted, and then the hot plate is quickly withdrawn to solidify into one. The whole machine is a frame structure, which has a filter body clamping and fixing positioning mechanism, a filter core end cover fixed positioning mechanism, a filter body heating mechanism, and a filter core end cover heating mechanism. The machine is equipped with four copper electric heating plates and is heated. The board is equipped with a hot-melt hot plate for matching the customer's needs. The heating plate is heated by the electric heating tube, the temperature controller controls the temperature range, and the temperature can be adjusted automatically after the temperature setting. The heating temperature can be displayed. The material and welding requirements adjust the welding temperature to achieve the desired welding results.





Technical Parameters:



Item No AY-JC8010
Products Name Filter Cartridge Outer Cage Extension Welding Machine
Power 2000w
Voltage 380V 50HZ
Air pressure 5Kg/c㎡
Heating Accuracy ±2℃
Temperature Range Normal~ 400℃
Welding Speed 30s/pcs
Dimensions L2000*W800*H1800
Gross weight 600kgs





Configuration Details:



Touch Screen + PLC: Delta

Circuit breaker: LG

Thermostat: Winpark

Solid State: Shimadan

Guide rail, slider: HIWIN

Auxiliary applicances: IDEC

Pneumatic components: Airtec

Protective Cover: European Standard Aluminum Profile + PMMA

Parts: carton steel 45(S45X) (Galvanized)

Filter cartridge holder: 6061 aluminum plate ( surface anodized)

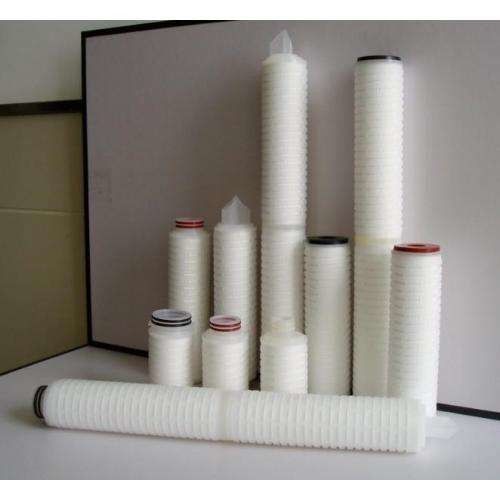

2000w Microporous Film Folding Filter for Lengthen 40inch Filter Cores

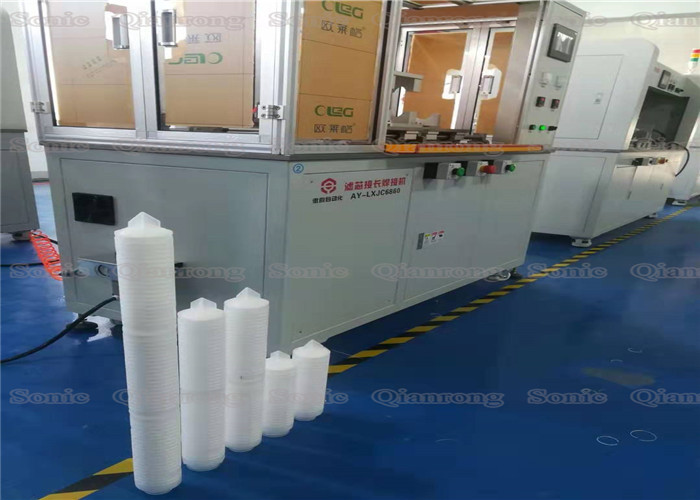

2000w Microporous Film Folding Filter For Lengthen 40 Inch Filter Cores 0

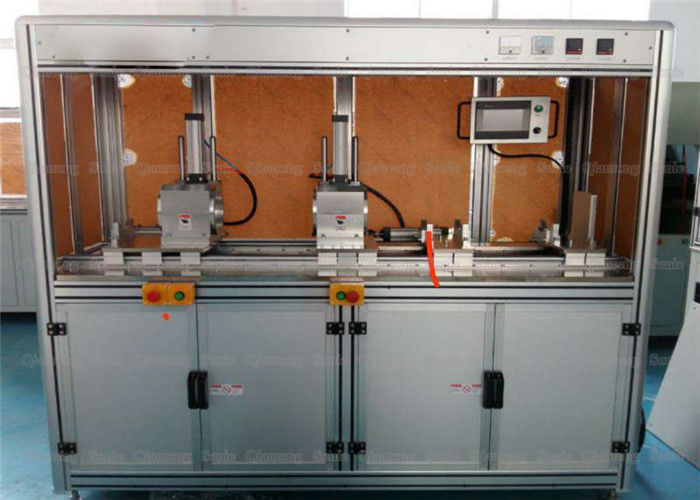

2000w Microporous Film Folding Filter For Lengthen 40 Inch Filter Cores 1
