Folding Filter Element Infrared Servo End Cap Welding Machine 8000w

MOQ: 1 unit
Price: Negotation
Standard Packaging: packed in wooden case
Delivery Period: 20 workdays
Payment Method: T/T
Supply Capacity: 100 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
AY-LXDH6812
Products Name:
Folding Filter Element Infrared Servo End Cap Welding Machine
Power:
8000w
Voltage:
380V 50HZ
Air Pressure:
6Kg/c㎡
Heating Accuracy:
±2℃
Temperature Range:
Normal~ 400℃
Welding Speed:
30s/pcs
Gross Weight:
1000kgs
Highlight:

Folding Filter Element Welding Machine

,

Servo End Cap Welding Machine

,

Folded Filter Element Welding Machine

Product Description

High Flow 8000w Folding Filter Element Infrared Servo End Cap Welding Machine





Description:



Folded filter element infrared servo end cap welding machine is one of the equipments of our folding filter element production line. It is mainly used for hot-melt sealing and welding of plastic end caps at both ends of the filter element. Aoyun infrared equipment uses a non-contact heating method to heat the plastic workpiece. The surfaces of the two filter element end caps to be welded can be rapidly melted under the irradiation of infrared rays. The high welding strength and the cleanliness of the product surface make up for the problem of hot plate welding of the membrane of the filter element and the membrane of the end cover.





Technical Parameters:



Item No AY-LXDH6812
Products Name High Flow Filter Cartridge End Caps Welder
Power 8000w
Voltage 380V 50HZ
Air pressure 6Kg/c㎡
Heating Accuracy ±2℃
Temperature Range Normal~ 400℃
Welding Speed 30s/pcs
Dimensions L2000*W1000*H1800
Gross weight 1000kgs





Configuration Details:



Touch Screen + PLC: Delta

Circuit breaker: LG

Thermostat: Winpark

Solid State: Shimadan

Guide rail, slider: HIWIN

Auxiliary applicances: IDEC

Pneumatic components: Airtec

Protective Cover: European Standard Aluminum Profile + PMMA

Parts: carton steel 45(S45X) (Galvanized)

Filter cartridge holder: 6061 aluminum plate ( surface anodized)

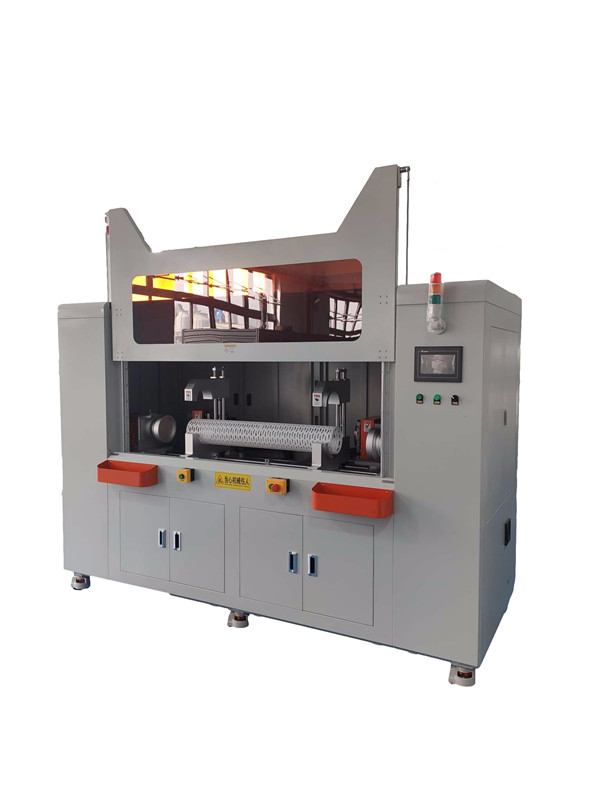

High Flow 8000w Folding Filter Element Infrared Servo End Cap Welding Machine

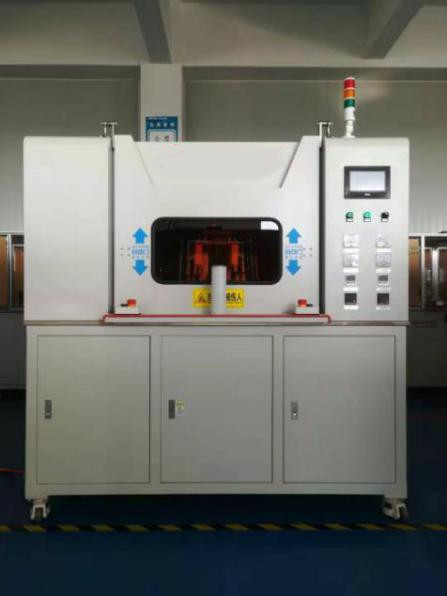

Folding Filter Element Infrared Servo End Cap Welding Machine 8000w 0

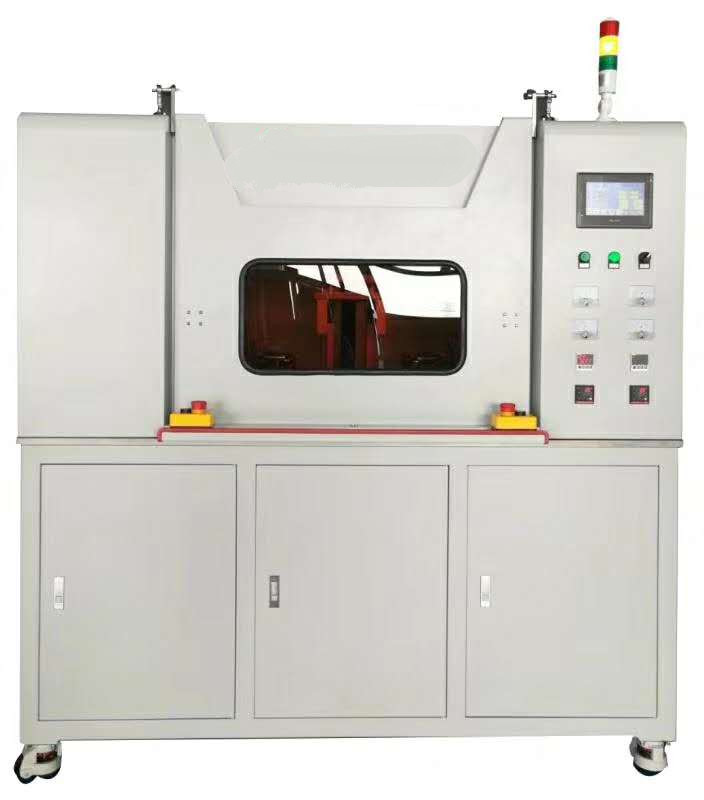

Folding Filter Element Infrared Servo End Cap Welding Machine 8000w 1
