Multi Strand 12 AWG Wire Ultrasonic High Strength And Sealing Welding Machine Without Additives

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden carton
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 1000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-X2030A
Products Name:
Ultrasonic Wire Harness Welding Machine
Frequency:
20KHZ
Power:
3000W
Voltage:
220V
Welding Area:
0.5-20mm2
Air Pressure:
0.05-0.9MPa
Generator Size:
540*380*150mm
Dimension Of Horn:
530*210*230mm
Highlight:

Wire Harness Ultrasonic Sealing Welding Machine

,

Multi Strand Wire Ultrasonic Welding Machine

,

12 AWG Wire Harness Welding Machine

Product Description

Multi Strand 12 AWG Wire 20kHz 3000W Ultrasonic High Strength and Sealing Welding without Additives




Description:


Ultrasonic wire harness welding usually uses specially designed welding equipment. The equipment consists of an ultrasonic generator, a welding head (welding pen), a pressure system, and a control system. The ultrasonic generator generates high-frequency vibration, and the welding head transmits the vibration to the surface of the workpiece. The pressure system provides the required welding pressure, and the control system is used to adjust welding parameters and monitor the welding process.


Parameters:



Item No QR-X2020A QR-X2030A QR-X2040A
Power 2000W 3000W 4000W
Welding Area 0.5-16mm2 0.5-20mm2 1-30mm2
Air Pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20KHZ 20KHZ 20KHZ
Voltage 220V 220V 220V
Weight of horn 18KG 22KG 28KG
Dimension of Horn 530*210*230mm 550*220*240mm 550*250*240mm
Generator Size 540*380*150mm 540*380*150mm 540*380*150mm




Ultrasonic wire harness welding has the following characteristics and advantages:


1. Efficient and fast: The welding process is fast, usually taking only a few seconds to complete one welding.
2. No need to add materials: No welding flux or filler materials need to be added during the welding process.
3. No obvious deformation: Due to the short welding time and local heating in the welding area, there is usually no significant deformation during the welding process.
4. High welding strength: Welding joints have high strength and sealing properties.
5. Wide applicability: can be used for welding different types of materials such as metals, plastics, composite materials, etc.


Ultrasonic wire harness welding is widely used in fields such as automotive manufacturing, electronic equipment manufacturing, and plastic product production. However, in order to obtain high-quality welded joints, careful selection of welding parameters, including ultrasonic frequency, pressure, time, etc., and full understanding and control of material characteristics are necessary.

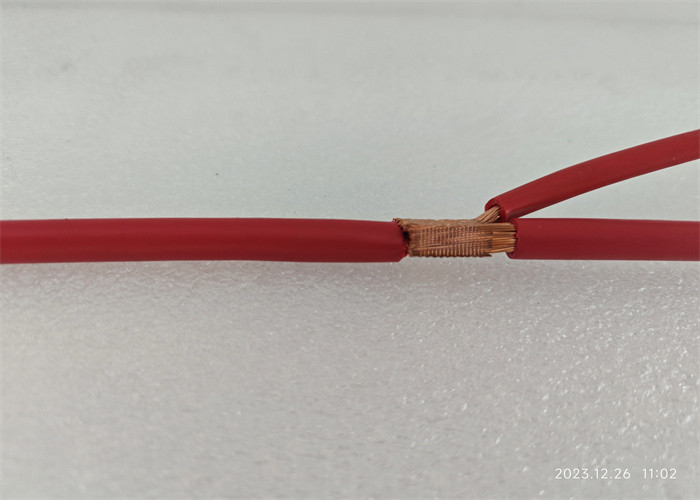

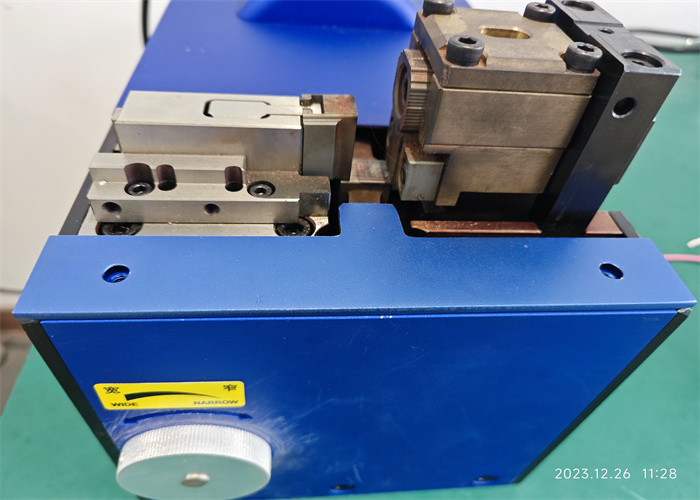

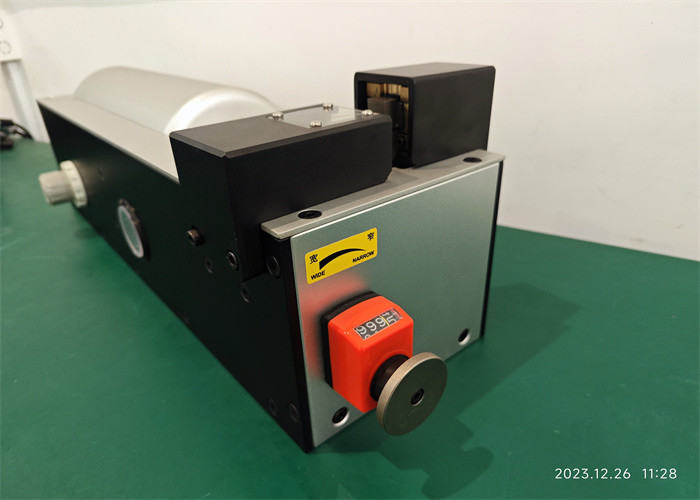

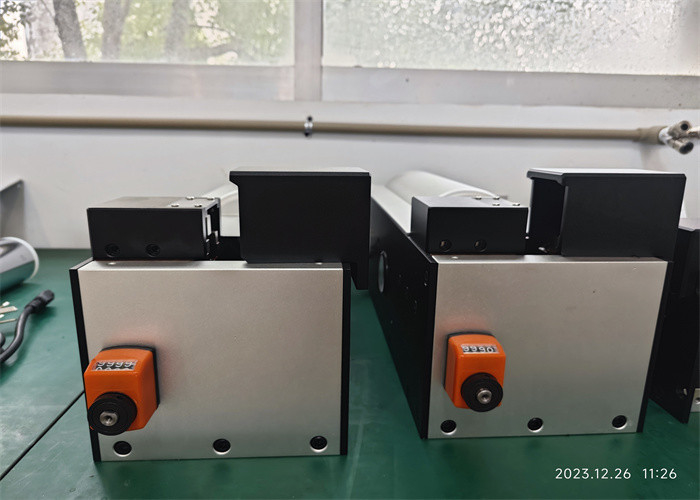

Multi Strand 12 AWG Wire 20kHz 3000W Ultrasonic High Strength and Sealing Welding without Additives



Multi Strand 12 AWG Wire Ultrasonic High Strength And Sealing Welding Machine Without Additives 0Multi Strand 12 AWG Wire Ultrasonic High Strength And Sealing Welding Machine Without Additives 1


Tags:

handheld ultrasonic welder,

ultrasonic wire splicing machine,

ultrasonic welding equipment
