Place of Origin: | CHINA |
---|---|
Brand Name: | FUNSONIC |
Certification: | CE |
Model Number: | FSW-12001-L |
Minimum Order Quantity: | 1 UNIT |
Price: | Negotation |
Packaging Details: | Packed by carton |
Payment Terms: | T/T,Western Union |
Supply Ability: | 1000 unit per month |
Production Name: | Ultrasonic Widemist Spray Nozzle | Frequency: | 120Khz |
---|---|---|---|
Max Power: | 1-15w | Automized Particle Size Range: | 15-40μm |
Spray Flow: | 0.5-20ml/min | Liquid Viscosity: | <30cps |
Particle Size: | <10μm | Application: | Ultra Large Area Spraying Glass Coating |
Highlight: | 120Khz ultrasonic spray nozzle,high frequency anti reflection coating nozzle,wide-band ultrasonic spray coating nozzle |
Attribute | Value |
---|---|
Production Name | Ultrasonic Widemist Spray Nozzle |
Frequency | 120Khz |
Max Power | 1-15w |
Automized Particle Size Range | 15-40μm |
Spray flow | 0.5-20ml/min |
Liquid viscosity | <30cps |
Particle size | <10μm |
Application | Ultra large area spraying, Glass coating |

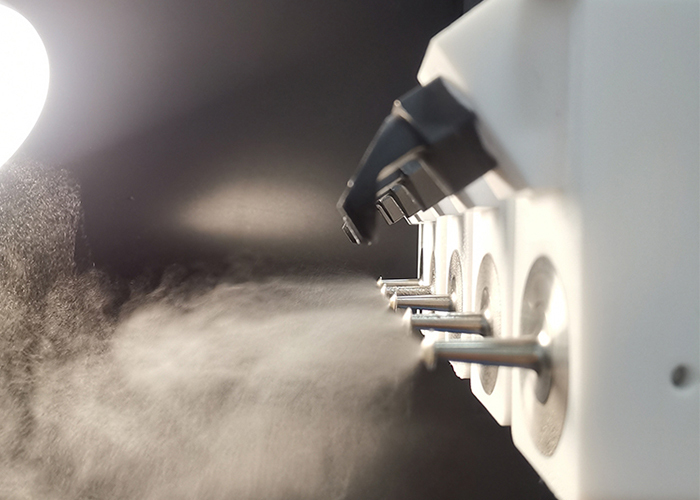

120Khz High Frequency Ultrasonic Wide-band Anti Reflection Coating Spray is a technique used to reduce light reflection and is commonly applied in optical equipment, sensors, and other fields that require increased transparency. Anti reflective (AR) coatings improve the efficiency of lenses used in LED lighting and traffic lights, as well as glass panels and glass panels used in the solar and electronic consumer markets.

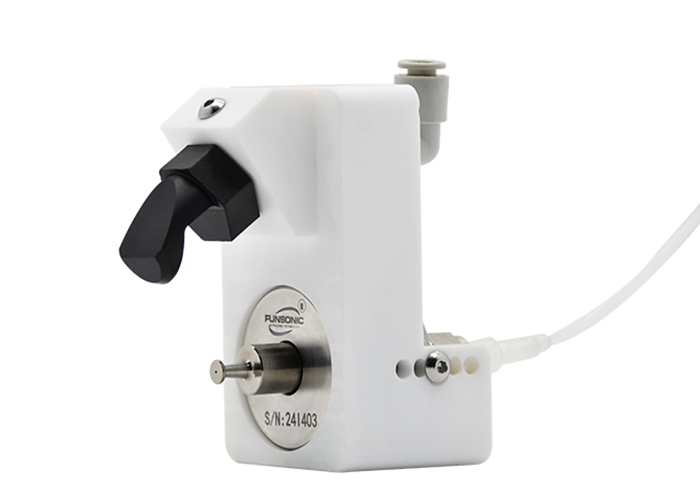

Type | FSW-12001-L |
---|---|
Name | Ultrasonic Wide Type Spray Coating Nozzle |
Frequency | 120Khz (50/60/100Khz for selection) |
Atomized particle size range (μm) | 40-120 |
Spray width(mm) | 30-60 |
Spray flow(ml/min) | 0.5-20 |
Spray height(mm) | 50-150 |
Permissible liquid viscosity(cps) | <30 |
Allow particle size(μm) | <10 |
Diversion pressure (Mpa) | <0.05 |
Application | Suitable for large-area spraying, such as proton exchange membranes, etc |
