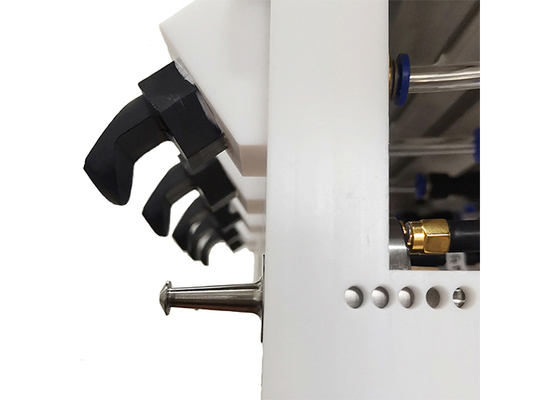

120Khz High Frequency Ultrasonic Wide-band Anti Reflection Coating Spray Nozzle

MOQ:	1 UNIT
Price:	Negotation
Standard Packaging:	Packed by carton
Payment Method:	T/T,Western Union
Supply Capacity:	1000 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

FUNSONIC

Certification

Model Number

FSW-12001-L

Production Name:

Ultrasonic Widemist Spray Nozzle

Frequency:

120Khz

Max Power:

1-15w

Automized Particle Size Range:

15-40μm

Spray Flow:

0.5-20ml/min

Liquid Viscosity:

<30cps

Particle Size:

<10μm

Application:

Ultra Large Area Spraying Glass Coating

Highlight:

120Khz ultrasonic spray nozzle

high frequency anti reflection coating nozzle

wide-band ultrasonic spray coating nozzle

Product Description

120Khz High Frequency Ultrasonic Wide-band Anti Reflection Coating Spray Nozzle

Product Specifications

Attribute	Value
Production Name	Ultrasonic Widemist Spray Nozzle
Frequency	120Khz
Max Power	1-15w
Automized Particle Size Range	15-40μm
Spray flow	0.5-20ml/min
Liquid viscosity	<30cps
Particle size	<10μm
Application	Ultra large area spraying, Glass coating

Product Description

120Khz High Frequency Ultrasonic Wide-band Anti Reflection Coating Spray is a technique used to reduce light reflection and is commonly applied in optical equipment, sensors, and other fields that require increased transparency. Anti reflective (AR) coatings improve the efficiency of lenses used in LED lighting and traffic lights, as well as glass panels and glass panels used in the solar and electronic consumer markets.

Technical Parameters

Type	FSW-12001-L
Name	Ultrasonic Wide Type Spray Coating Nozzle
Frequency	120Khz (50/60/100Khz for selection)
Atomized particle size range (μm)	40-120
Spray width(mm)	30-60
Spray flow(ml/min)	0.5-20
Spray height(mm)	50-150
Permissible liquid viscosity(cps)	<30
Allow particle size(μm)	<10
Diversion pressure (Mpa)	<0.05
Application	Suitable for large-area spraying, such as proton exchange membranes, etc

Advantages of Ultrasonic Coatings

High transmittance: This coating can effectively reduce light reflection, increase transmittance, and ensure improved performance of optical equipment.
Uniformity: The spraying process can achieve uniform distribution of the coating, reduce optical distortion, and ensure the quality of the finished product.
Wear resistance: The coating has good wear resistance, can resist scratches and wear, and extend its service life.
Pollution resistance: Surface treatment endows the coating with anti fouling ability, reduces the adhesion of dust and oil stains, and facilitates cleaning and maintenance.
Strong adaptability: It can be applied to various materials and surfaces, including glass, plastic, and metal, with a wide range of applications.
Environmentally friendly: Many anti reflective coating materials are non-toxic, meet environmental requirements, and suitable for use in various environments.
Cost effectiveness: Compared to other optical processing techniques, the spray coating process provides a cost-effective solution.
Multifunctionality: It can be combined with other coatings (such as scratch resistant coatings) to achieve multiple protective effects.
