| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-G2030A |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 15 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 unit per month |
| Products Name: | Ultrasonic Metal Welding | Frequency: | 20KHZ |
|---|---|---|---|
| Power: | 3000W | Voltage: | 380V |
| Welding Speed: | 2-15m/min | Dimension Of Generator: | 540*380*150mm |
| Highlight: | ultrasonic welding process,ultrasonic welding machine |
||

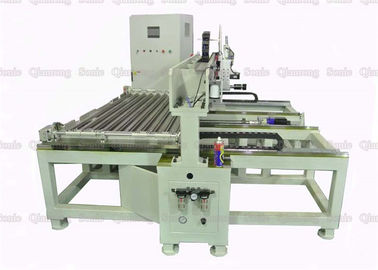

Ultrasonic Solar Fin Metal Rolling Machine 20Khz 3000w with Automatical System
Description:
Ultrasonic metal roll welding machine is also named ultrasonic copper sheet aluminum sheet copper tube aluminum tube roll welding machine, ultrasonic solar collector plate roll welding machine, ultrasonic solar fin metal rolling machine, ultrasonic solar heat absorbing plate core roll welding machine, whole board Solar collector plate welding machine, flat solar collector welding machine, etc.
Specifications:
| Item No | QR-G2030A |
| Power | 3000W |
| Air Pressure | 0.05-0.9MPa |
| Frequency | 20KHZ |
| Voltage | 380V |
| Dimension of device | Customized |
| Dimension of Generator | 540*380*150mm |
| Working Mode | Continuous |
| Welding Speed | 2-15m/min |
Features:
- Full servo control system for accurate positioning
- Welding system available in high end and standard configuration
- The equipment is fully automatic and available for selection
- The entire welding process can be completed by simply feeding and touch screen operation, and the operation is simple and quick.
- The overall frame is stable and has a long life
Ultrasonic production of ultrasonic collector plate rolling welding equipment:
The overall frame adopts the host size: customized according to the customer's product
1. The frame is made of high-quality structural steel, and the upper sliding platform is in the form of rails.
2. The machine horn is made of high quality titanium alloy.
3. The generator and transducer use a state energy system to ensure the consistency and stability of the welding through the amplitude.
4. The welding head adopts imported steel and is analyzed by professional ultrasonic analysis software to ensure the rationality of the welding head mechanism and strict process flow to ensure the durability of the welding head.
5. Reasonable structure, easy operation, debugging, maintenance and convenient handling;
6, the appearance is beautiful and clean, no thorns, the color is painted, the coating is even.
Ultrasonic Solar Fin Metal Rolling Machine 20Khz 3000w with Automatical System
