20Khz Ultrasonic Metal Welding Of Nickel Hydrogen Battery / Nickel Mesh Sheet

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-D2030A
Products Name:
Ultrasonic Metal Welding
Frequency:
20KHZ
Power:
3000W
Voltage:
220V
Air Pressure:
0.05-0.9Mpa
Dimension Of Generator:
540*380*150mm
Highlight:

ultrasonic welding process

,

ultrasonic welding machine

Product Description

Welding of Nickel Hydrogen Battery Nickel Mesh and Nickel Sheet by 20Khz Ultrasonic Metal Device





Description:



Ultrasound is widely used in medicine, military, industrial and other industries due to its good directionality and strong penetrating power. Ultrasonic metal spot welding machine is the heat generated by the vibration friction of tens of thousands of times per second of ultrasonic wave. The energy of ultrasonic vibration is converted into friction energy and transmitted to the metal surface, and then the external pressure is used to fuse the molecular layer of the workpiece contact surface.





Specifications:



Item No QR-D2020A QR-D2030A QR-D2050A
Power 2000W 3000W 5000W
Air Pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20KHZ 20KHZ 20KHZ
Voltage 220V 220V 380V
Weight of horn 55KG 60KG 88KG
Dimension of Horn 550*280*380mm 550*280*430mm 550*380*660mm
Generator Size 540*380*150mm 540*380*150mm 540*380*150mm





Advantages:



Ultrasonic welding is a new type of welding process. It is gradually replaced by the previous methods of screw fixing and adhesive bonding because of its advantages of high efficiency, quickness, cleanliness, and consumables. When welding metal with an ultrasonic metal spot welder, no flux, gas or solder is required between the contact surfaces, and the fastness after welding is also higher than the original material. Moreover, the ultrasonic metal spot welding machine has low requirements on the surface of the welded metal, and can be welded by oxidation or electroplating. The welding time is also very short, the general workpiece can be welded within one second, and the whole process is non-sparking, environmentally safe.



Of course, the ultrasonic metal spot welding machine will also have some shortcomings. The welded metal parts should not be too thick, generally less than or equal to m, and the welding points should not be too large, and need to be pressurized.

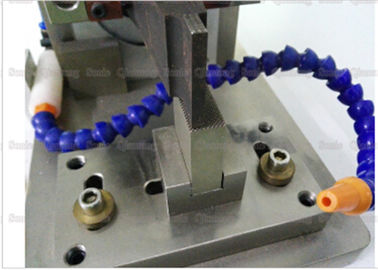

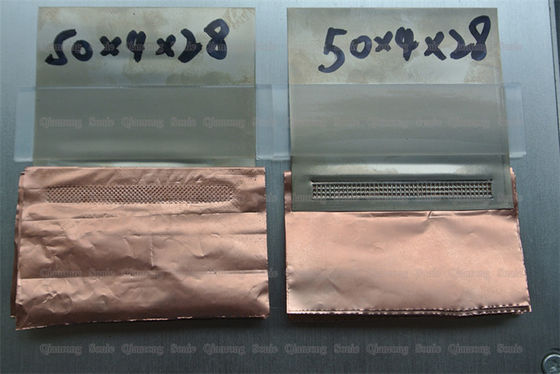

Welding of Nickel Hydrogen Battery Nickel Mesh and Nickel Sheet by 20Khz Ultrasonic Metal Device



20Khz Ultrasonic Metal Welding Of Nickel Hydrogen Battery / Nickel Mesh Sheet 0



20Khz Ultrasonic Metal Welding Of Nickel Hydrogen Battery / Nickel Mesh Sheet 1
