Welding Ultrasonic Metal Equipment

Welding Ultrasonic Metal Equipment

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-D2020A
Products Name:
Ultrasonic Metal Welding
Frequency:
20KHZ
Power:
2000W
Voltage:
220V
Air Pressure:
0.05-0.9Mpa
Dimension Of Generator:
540*380*150mm
Highlight:

ultrasonic metal welding equipment

,

ultrasonic welding machine

Product Description

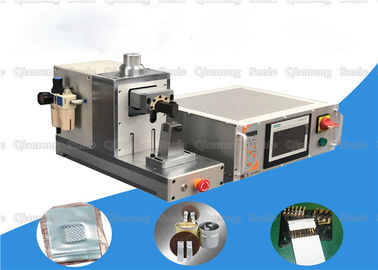

Ultrasonic Metal Equipment for Polymer Battery Copper Foil and Nickel Sheet Welding





Description:



Ultrasonic metal spot welding is an advanced welding technology that converts high-frequency current into 20KHZ vibration energy through an ultrasonic transducer, which is adjusted to the resonant frequency by the horn and transmitted to the surface of the metal workpiece through the ultrasonic welding head. Under the high-frequency vibration friction, the metal contact surface is heated to a melting point, and finally a metal welding process is combined by pressurization.





Specifications:



Item No QR-D2020A QR-D2030A QR-D2050A
Power 2000W 3000W 5000W
Air Pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20KHZ 20KHZ 20KHZ
Voltage 220V 220V 380V
Weight of horn 55KG 60KG 88KG
Dimension of Horn 550*280*380mm 550*280*430mm 550*380*660mm
Generator Size 540*380*150mm 540*380*150mm 540*380*150mm





In the ultrasonic metal welding process, the molecular structures between the metals are fused together into one body, which is firm and stable. No solder solder, protective gas, etc. are added throughout the process. No sparks, no pollution, no need to deal with metal surface contamination or oxide layer, it can be removed under high frequency vibration.



Ultrasonic metal spot welding technology can effectively avoid the problem of conventional welding defects, the only point is that it will leave an indentation on the surface of the workpiece.



Ultrasonic metal spot welding time is very short and can be welded in just 1 second. The welding production efficiency is greatly improved, and the welding precision is large, and it is often used for welding precision parts such as automobile wiring harnesses, capacitors, relays, connectors, lithium battery copper foil and so on.





Ultrasonic Metal Equipment for Polymer Battery Copper Foil and Nickel Sheet Welding



Welding Ultrasonic Metal Equipment 0





Welding Ultrasonic Metal Equipment 1
