Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-D2020A |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 15 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 unit per month |
| Products Name: | Ultrasonic Metal Welding | Frequency: | 20KHZ |
|---|---|---|---|
| Power: | 2000W | Voltage: | 220V |
| Air Pressure: | 0.05-0.9Mpa | Dimension Of Generator: | 540*380*150mm |
| Highlight: | ultrasonic welding process,ultrasonic welding machine |
||
Ultrasonic Metal Equipment for Polymer Battery Copper Foil and Nickel Sheet Welding
Description:
Ultrasonic metal spot welding is an advanced welding technology that converts high-frequency current into 20KHZ vibration energy through an ultrasonic transducer, which is adjusted to the resonant frequency by the horn and transmitted to the surface of the metal workpiece through the ultrasonic welding head. Under the high-frequency vibration friction, the metal contact surface is heated to a melting point, and finally a metal welding process is combined by pressurization.
Specifications:
| Item No | QR-D2020A | QR-D2030A | QR-D2050A |
| Power | 2000W | 3000W | 5000W |
| Air Pressure | 0.05-0.9MPa | 0.05-0.9MPa | 0.05-0.9MPa |
| Frequency | 20KHZ | 20KHZ | 20KHZ |
| Voltage | 220V | 220V | 380V |
| Weight of horn | 55KG | 60KG | 88KG |
| Dimension of Horn | 550*280*380mm | 550*280*430mm | 550*380*660mm |
| Generator Size | 540*380*150mm | 540*380*150mm | 540*380*150mm |
In the ultrasonic metal welding process, the molecular structures between the metals are fused together into one body, which is firm and stable. No solder solder, protective gas, etc. are added throughout the process. No sparks, no pollution, no need to deal with metal surface contamination or oxide layer, it can be removed under high frequency vibration.
Ultrasonic metal spot welding technology can effectively avoid the problem of conventional welding defects, the only point is that it will leave an indentation on the surface of the workpiece.
Ultrasonic metal spot welding time is very short and can be welded in just 1 second. The welding production efficiency is greatly improved, and the welding precision is large, and it is often used for welding precision parts such as automobile wiring harnesses, capacitors, relays, connectors, lithium battery copper foil and so on.

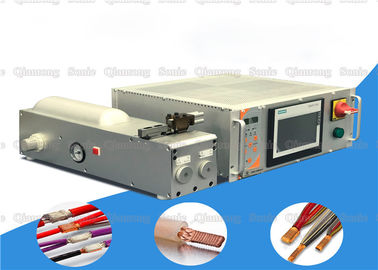

Ultrasonic Metal Equipment for Polymer Battery Copper Foil and Nickel Sheet Welding
