Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-D2030A |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 15 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 unit per month |
| Products Name: | Ultrasonic Metal Welding | Frequency: | 20KHZ |
|---|---|---|---|
| Power: | 3000W | Voltage: | 220V |
| Air Pressure: | 0.05-0.9Mpa | Dimension Of Generator: | 540*380*150mm |
| Highlight: | ultrasonic welding process,ultrasonic welding machine |
||
220V Ultrasonic Bonding Machine , Ultrasonic Metal Welding Aluminum Foil And Aluminum Sheet
Principle:
If you are interested in the ultrasonic metal spot welding process, or if the enterprise unit needs to innovate the welding process in production and processing. You can visit Hangzhou Qianrong Automation Equipment Co., Ltd., Hangzhou Qianrong specializes in the development and production of ultrasonic equipment for 10 years, and rich ultrasonic experience to create high-quality ultrasonic welding equipment. We offer ultrasonic welding solutions and sample welding test.
Ultrasonic metal welding is actually a cold welding skill. It uses ultrasonic transducer equipment to convert high-frequency electrical energy into ultrasonic mechanical energy. When ultrasonic mechanical energy acts on two metal surfaces that require welding, under pressure, The two metal surfaces rub against each other at a constant frequency to form heat generation, which causes the temperature of the weld zone to rise and plastically deform at the interface of the weldment. In this way, under the action of the contact pressure, the solder joints are formed when they approach each other until the interval at which the atomic attraction can occur. Then reach the metal welding effect. Because ultrasonic welding does not have problems such as heat conduction and electrical resistivity, it is an ideal metal welding system for non-ferrous metal materials.
Specifications:
| Item No | QR-D2020A | QR-D2030A | QR-D2050A |
| Power | 2000W | 3000W | 5000W |
| Air Pressure | 0.05-0.9MPa | 0.05-0.9MPa | 0.05-0.9MPa |
| Frequency | 20KHZ | 20KHZ | 20KHZ |
| Voltage | 220V | 220V | 380V |
| Weight of horn | 55KG | 60KG | 88KG |
| Dimension of Horn | 550*280*380mm | 550*280*430mm | 550*380*660mm |
| Generator Size | 540*380*150mm | 540*380*150mm | 540*380*150mm |
Vibration system detection:
In order to achieve the best working condition and maintain the performance of the ultrasonic metal welding machine, to ensure the normal operation of the vibration system, the vibration system must be inspected.
1. The components of the rack must be tightened, and the welding head should not touch the work or fixture.
2. Turn on the power, then the power indicator lights up.
3. Press the overload test button to see if the resonant frequency of the vibration system is in the working range, and whether there is an overload condition.
4. Generally, the sound of the ultrasonic wave is a relatively smooth and soft sound. If there is a strange sound, please use it after inspection.
5. There is no abnormal sound and it can work normally. For the entire ultrasonic metal welding machine, the welding head is a consumable part, which has a service life limitation. The service life of the welding tool head is affected by various factors, the main factor being the tool head (hardened tool steel) ) The hardness difference between the workpiece and the workpiece (for example: non-ferrous metal) and various parameters of the welding. Long-term welding can cause wear and even breakage of the weld head, and the weld head must be replaced when there is a problem with the weld head.

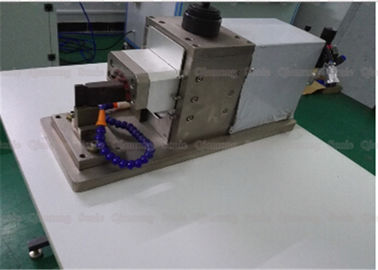

220V Ultrasonic Bonding Machine , Ultrasonic Metal Welding Aluminum Foil And Aluminum Sheet
