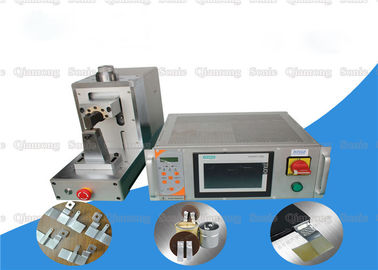

5000W Ultrasonic Metal Welding

5000W Ultrasonic Metal Welding

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-D2050A
Products Name:
Ultrasonic Metal Welding
Frequency:
20KHZ
Power:
5000W
Voltage:
380V
Air Pressure:
0.05-0.9Mpa
Dimension Of Generator:
540*380*150mm
Highlight:

ultrasonic metal welding equipment

,

ultrasonic welding machine

Product Description

20Khz 5000W Ultrasonic Metal Welding Machine for No Ferrous Metal Plate





Description:



Ultrasonic metal spot welding machine is a solid phase welding method. The connection between the weldments is completed by the high frequency elastic oscillation of the acoustic system and the static clamping between the workpieces. In the meantime, the ultrasonic generator is a frequency conversion device, which changes the common frequency current to the vibration current of the ultrasonic frequency, and the transducer converts the ultrasonic frequency electric energy fed by the generator into mechanical oscillation energy according to the "piezoelectric effect". The concentrator is used to amplify the amplitude and is used to couple the load. The weldment transforms the elastic oscillation energy into the collision energy, the deformation energy and the thermal energy between the workpieces under the action of the static pressure and the elastic oscillation energy, so that the two workpieces form a surface. The outer layer of the oxide film then reaches the conflict soldering. When different metal materials are welded, they will form a mixed molecular interface and produce metallurgical welding.





Specifications:



Item No QR-D2020A QR-D2030A QR-D2050A
Power 2000W 3000W 5000W
Air Pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20KHZ 20KHZ 20KHZ
Voltage 220V 220V 380V
Weight of horn 55KG 60KG 88KG
Dimension of Horn 550*280*380mm 550*280*430mm 550*380*660mm
Generator Size 540*380*150mm 540*380*150mm 540*380*150mm





Features:



1. Ultrasonic metal welding equipment control mode is divided into time mode and energy mode, height mode, three welding modes

2. The equipment uses international high-quality components to ensure stable operation and short welding time.

3. After welding, the conductivity is good, the resistivity is extremely low or close to zero, the welding metal surface is required to be low, and the oxidation or electroplating can be welded.

4. Strong welding force, good electrical conductivity, and no pollution, saving manufacturing and maintenance costs.

5. Unique structural design, easy installation, maintenance and operation, convenient welding head replacement, reducing downtime and production cost





20Khz 5000W Ultrasonic Metal Welding Machine for No Ferrous Metal Plate



5000W Ultrasonic Metal Welding 0





5000W Ultrasonic Metal Welding 1
