Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-D2030A |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 15 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 unit per month |
| Products Name: | Ultrasonic Metal Welding | Frequency: | 20KHZ |
|---|---|---|---|
| Power: | 3000W | Voltage: | 220V |
| Air Pressure: | 0.05-0.9Mpa | Dimension Of Generator: | 540*380*150mm |
| Highlight: | ultrasonic welding process,ultrasonic welding machine |
||
Replacement Traditional Soldering Technology by 20Khz Ultrasonic Metal Welding Machine
Principle:
The ultrasonic metal welding machine utilizes electrical energy and high-frequency mechanical vibration energy to quickly weld the metal sheet under a certain pressure. When the metal piece is subjected to ultrasonic waves, neither the current is supplied to the workpiece nor the high-temperature heat source is applied to the workpiece, but the vibration energy driven by the sound wave is converted into the friction work, the deformation energy and the limited work space under the static pressure. Temperature rise. Contact surface metallurgical bonding is a solid state welding achieved without the base material being violently melted. Therefore, it effectively overcomes excessive splashing and oxidation caused by spark welding or acetylene welding.
Specifications:
| Item No | QR-D2020A | QR-D2030A | QR-D2050A |
| Power | 2000W | 3000W | 5000W |
| Air Pressure | 0.05-0.9MPa | 0.05-0.9MPa | 0.05-0.9MPa |
| Frequency | 20KHZ | 20KHZ | 20KHZ |
| Voltage | 220V | 220V | 380V |
| Weight of horn | 55KG | 60KG | 88KG |
| Dimension of Horn | 550*280*380mm | 550*280*430mm | 550*380*660mm |
| Generator Size | 540*380*150mm | 540*380*150mm | 540*380*150mm |
Welding strengths of ultrasonic metal welding:
1 high fusion strength;
2 close to cold processing, no annealing of the workpiece, no trace of oxidation;
3 good electrical conductivity after welding, the resistance coefficient is very low or nearly zero;
4 pairs of welding metal surface requirements are low, oxidation or plating can be welded;
5 welding time is short, no need for any flux, gas, solder;
6 welding without sparks, environmental protection and safety.
Features:
Small size, light weight, beautiful appearance, easy to use; power adjustable, simple operation, stable and reliable operation; product fits ergonomic planning, completely adjustable, easy to operate; high degree of automation, good welding consistency, quality Ensure that the PLL frequency is used to actively slap the phase-locked loop technology without manual frequency modulation; the independent intellectual property welding head, lower than the world famous brand, reduce the use of capital.

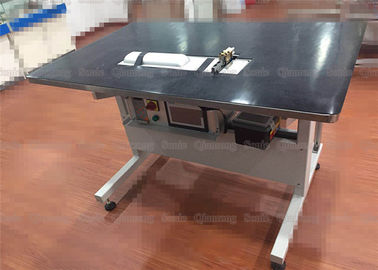

Replacement Traditional Soldering Technology by 20Khz Ultrasonic Metal Welding Machine
