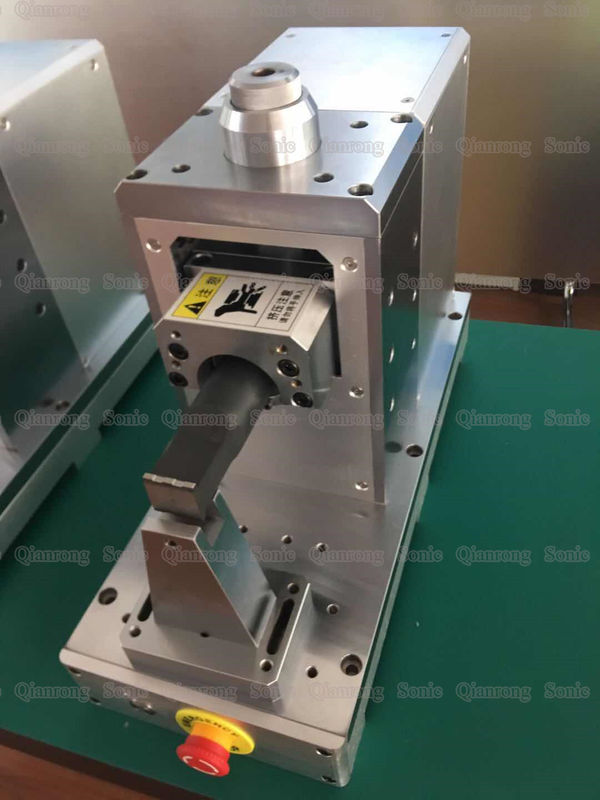

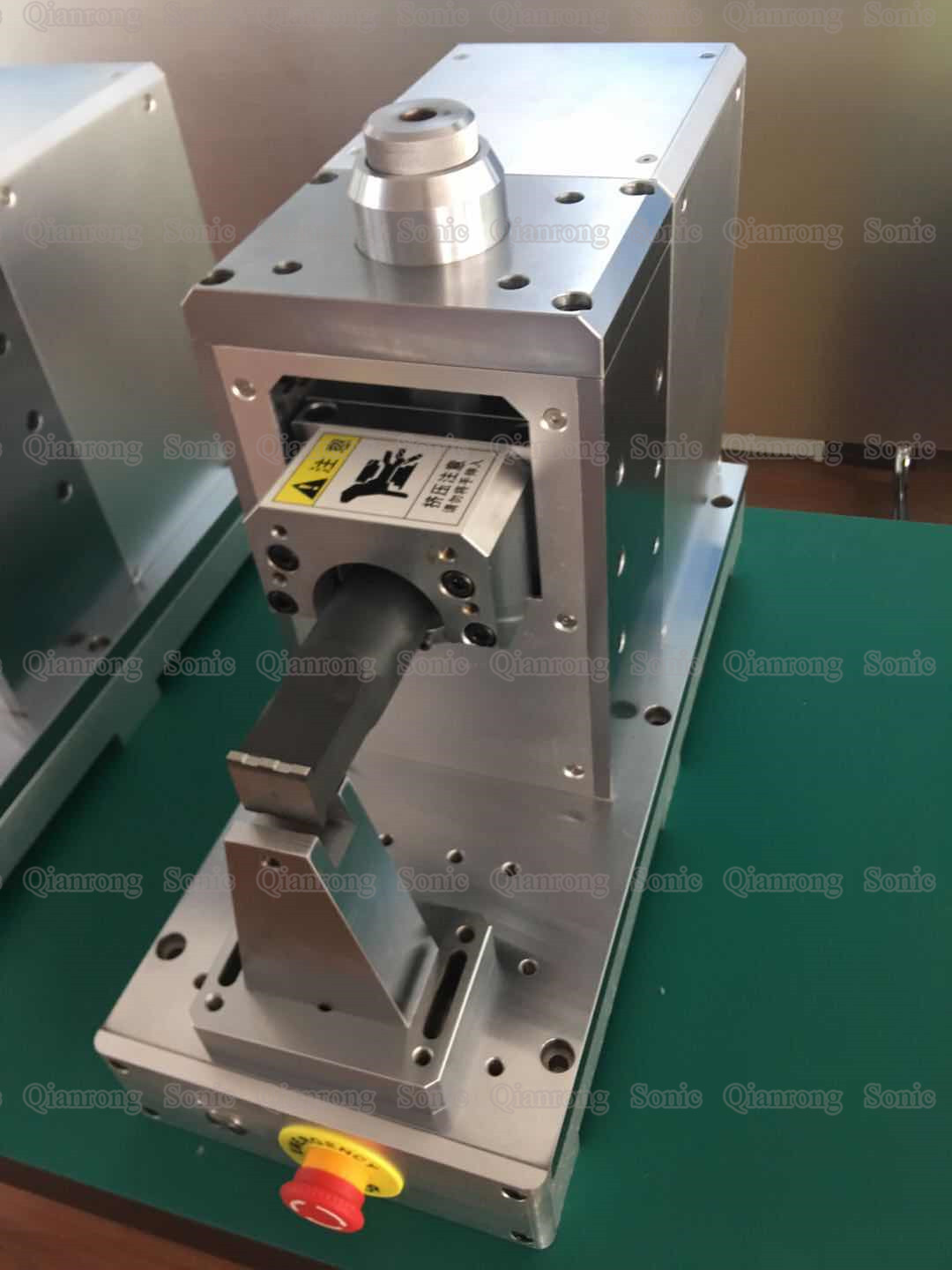

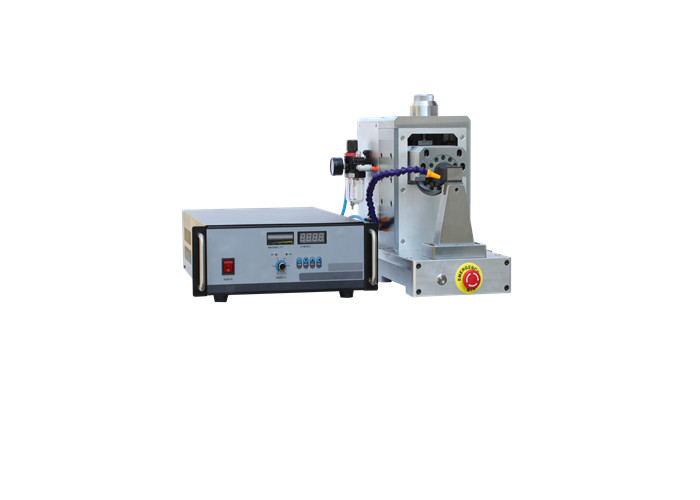

Advance Ultrasonic Wire Harness Welding Machine
  • name
  • name
  • name
  • name

Advance Ultrasonic Wire Harness Welding Machine

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-D2020A
Products Name:
Ultrasonic Metal Welding
Frequency:
20KHZ
Power:
2000W
Voltage:
220V
Air Pressure:
0.05-0.9Mpa
Dimension Of Generator:
540*380*150mm
Highlight:

ultrasonic metal welding equipment

,

ultrasonic welding process

,

Wire Harness Ultrasonic Metal Welding

Product Description

Advance Ultrasonic Metal Welding Technoloy for Precison High End Products





Description:



Hangzhou Qianrong Automation Equipment Co., Ltd. specializes in terminal welding equipment for large square wires and copper sheets, welding of wiring harnesses and terminals. In the era when electric vehicles were vigorously promoted, Qianrong Equipment cooperated with well-known German ultrasonic system manufacturers to jointly develop this specialization. Wire harness terminal welding equipment Large diameter copper wire welding process is a mechanical process, no current flows through the workpiece, no melting occurs. Its electrical and thermal properties are not achieved by other processes.





Specifications:



Item No QR-D2020A QR-D2030A QR-D2050A
Power 2000W 3000W 5000W
Air Pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20KHZ 20KHZ 20KHZ
Voltage 220V 220V 380V
Weight of horn 55KG 60KG 88KG
Dimension of Horn 550*280*380mm 550*280*430mm 550*380*660mm
Generator Size 540*380*150mm 540*380*150mm 540*380*150mm





Equipment advantage:



Copper wire and copper terminal welding equipment has short welding time, avoiding welding overheating or insufficient welding penetration. It does not need any flux, protective gas, and welded joints. It is an alloy layer that is melted into one. It has stable chemical properties and good electrical conductivity. The original coefficient of the material is basically the same as that of the material (large wire diameter copper wire welding).





Main application of equipment:

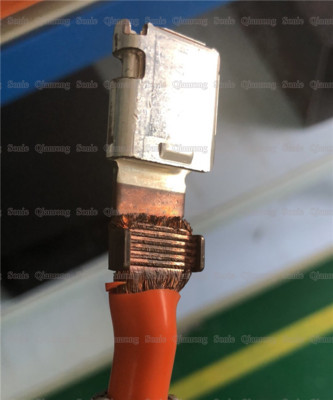

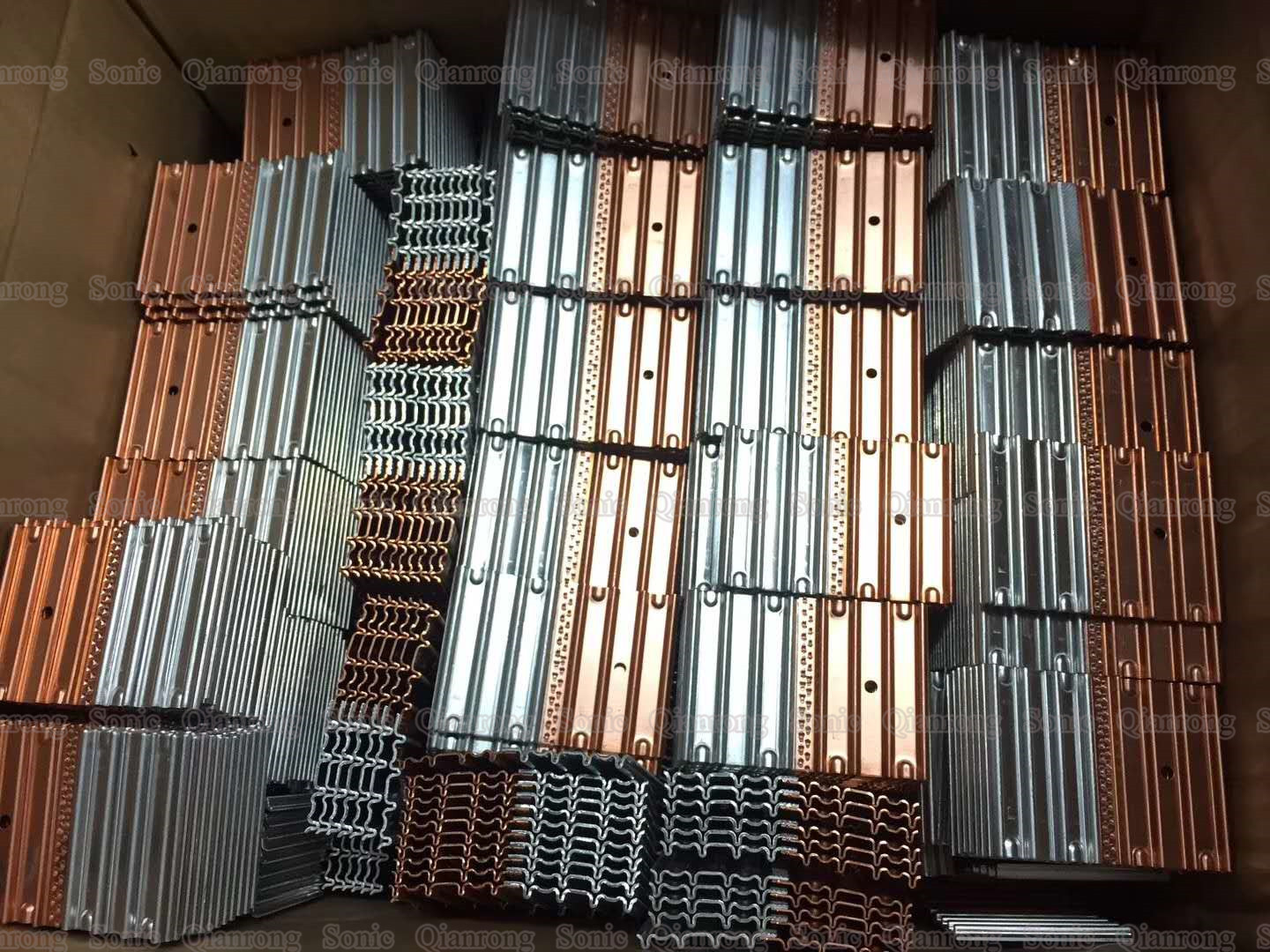

Copper wire and copper terminal welding equipment is mainly used for welding of multi-strand copper wire, electric vehicle wire harness, motor lead wire, cable wire, terminal cable, computer interface cable, electronic equipment cable and motor cable. Automobile wire harness welding machine is especially used for welding of multi-strand copper wire and other electronic components, multi-strand copper wire and multi-strand copper wire, enameled wire, aluminum sheet and copper sheet welding.





Advance Ultrasonic Metal Welding Technoloy for Precison High End Products



Advance Ultrasonic Wire Harness Welding Machine 0





Advance Ultrasonic Wire Harness Welding Machine 1

Tags:

ultrasonic welding machine,

ultrasonic welding process,

ultrasonic metal welding equipment
