Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-D2050A |
Minimum Order Quantity: | 1 unit |
Price: | Negotation |
Packaging Details: | Packed in wooden case |
Delivery Time: | 15 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000 unit per month |
Products Name: | Ultrasonic Metal Welding | Frequency: | 20KHZ |
---|---|---|---|
Power: | 5000W | Voltage: | 380V |
Air Pressure: | 0.05-0.9Mpa | Dimension Of Generator: | 540*380*150mm |
Highlight: | ultrasonic welding process,ultrasonic welding machine |

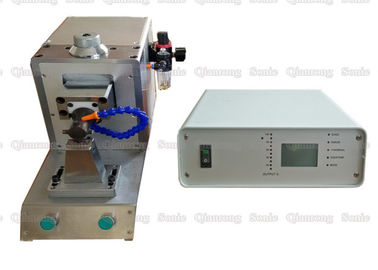

Ultrasonic Terminal Metal Welding for Automotive Electrics Industries
Description:
This ultrasonic metal welding equipment generator and transducer are equipped with German original system and use high quality components. The amplitude adjustment can be changed from 50% to 100%. If the operating tolerance range is exceeded, for example, the main voltage is reduced, the overload operation, the excessive temperature or the short circuit, the fault warning will illuminate on the front panel. The front panel includes the LED display Led and the function of the button for the working status diagnostic system. There is a 2*12 display at the top.

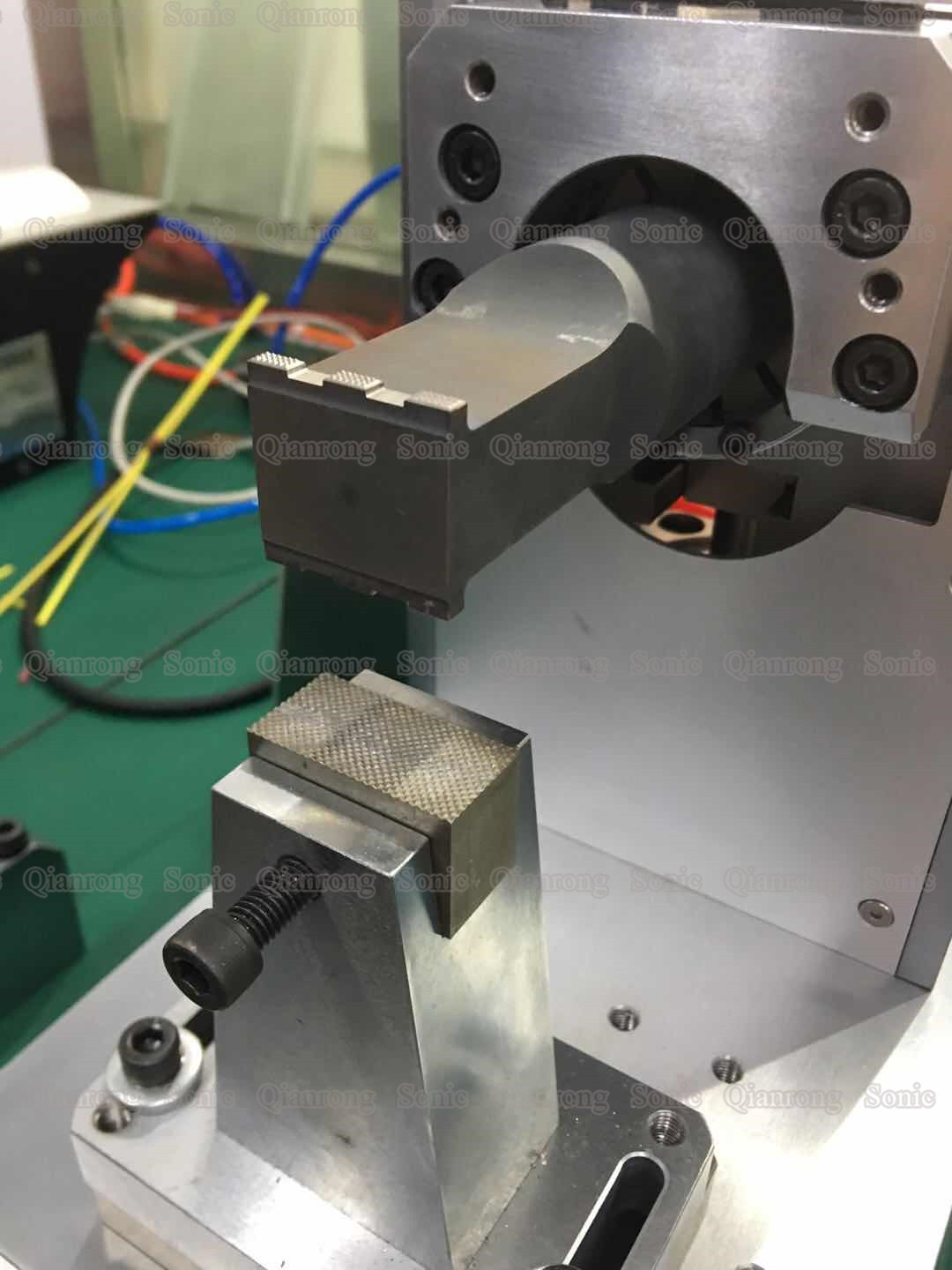

Reticulation:
Ultrasonic metal welding usually has a mesh surface on the surface of the welding surface. The surface of the base is designed to prevent the metal parts from sliding and transfer energy to the welding position as much as possible. The mesh design generally has a square, diamond, and strip mesh. Metal-clad welding heads and bases such as gold jewellery cannot be designed according to requirements. The size and depth of the netting are determined according to the specific welding material requirements.
Specifications:
Item No | QR-D2020A | QR-D2030A | QR-D2050A |
Power | 2000W | 3000W | 5000W |
Air Pressure | 0.05-0.9MPa | 0.05-0.9MPa | 0.05-0.9MPa |
Frequency | 20KHZ | 20KHZ | 20KHZ |
Voltage | 220V | 220V | 380V |
Weight of horn | 55KG | 60KG | 88KG |
Dimension of Horn | 550*280*380mm | 550*280*430mm | 550*380*660mm |
Generator Size | 540*380*150mm | 540*380*150mm | 540*380*150mm |
Ultrasonic metal welding for products:
1. Power battery multi-layer positive and negative electrode welding; nickel-hydrogen battery nickel mesh and nickel sheet welding
2. Lithium battery, polymer battery copper foil and nickel sheet welding; aluminum foil and aluminum sheet welding; aluminum sheet and nickel sheet welding
3.Automotive wiring harness; wire head forming; wire mutual welding; multiple wires are welded to each other; copper and aluminum conversion
4. Wire, cable and various electronic components, contacts, connectors, terminal soldering
5. Solar cell, flat solar heat absorbing plate, aluminum-plastic composite pipe seam welding, copper, aluminum plate splicing
6. Welding of large current contacts, contacts, dissimilar metal sheets such as electromagnetic switches and non-fuse switches
7. Refrigerator, air conditioner and other industries copper tube sealing; vacuum device copper, aluminum tube sealing and cutting water, airtight
