Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-5020-2PG |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Products Name: | Ultrasonic Welding Transducer | Frequency: | 20 Khz |
|---|---|---|---|
| Output Power: | 800 Watt | Joint Bolt: | M16 |
| Ceramic Disc Diameter: | 50mm | Qty Of Ceramic Discs: | 2pcs |
| Capacitance: | 5.5-6.1nf | Amplitude: | 10 Um |
| High Light: | ultrasonic high power transducer,high frequency ultrasound transducer |
||

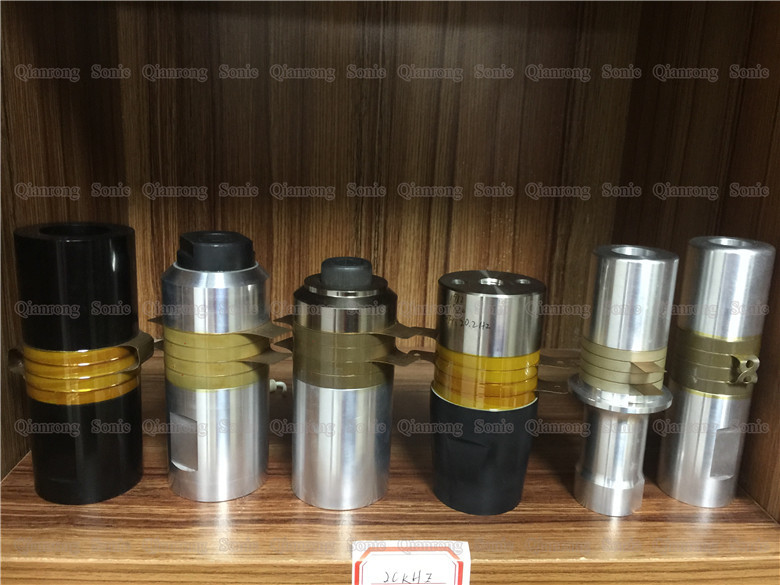

Two Ceramics 20Khz 800W Ultrasonic Welding Transducer for Plastic Device
Description:
A transducer is an energy conversion device that requires many parameters for its performance description and evaluation. The characteristic parameters of the transducer include resonance frequency, frequency bandwidth, electromechanical coupling coefficient, electroacoustic efficiency, mechanical quality factor, impedance characteristics, frequency characteristics, directivity, transmission and reception sensitivity, and the like. Transducers for different applications have different performance parameters. For example, for an emissive transducer, the transducer is required to have a large output power and high energy conversion efficiency; and for a transducing transducer, a wide requirement is required. Frequency band and high sensitivity and resolution. Therefore, in the specific design process of the transducer, the relevant parameters of the transducer must be rationally designed according to the specific application.
Specifications:
| Model | QR-5020-2PG |
| Frequency | 20khz |
| Output power | 800 watt |
| Joint bolt | M16 |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 2pcs |
| Capacitance | 5.5-6.1nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |
Application of Ultrasonic plastic welding machine:
1. Daily necessities industry: dish cloth, double plastic cup, lighter, shower, hair comb, plastic hair clip, plastic bottle cap, mattress, powder box, lock box, bath shower head, plastic mug, sponge brush, etc. Welding.
2. Auto parts industry: car sunroof, car dashboard, car tail, car fender hot plate machine, car turn signal, car door panel, car armrest box, car triangle warning sign, car filter felt, car bumper, car Welding of mirrors, car coat racks, car air conditioning ducts, car keys and other components.
3. Electronics industry: memory card, SD card, USB socket, dust collector parts, battery cover, fax machine case, CD case, ink cartridge, charger case, mobile phone case, electronic clock, calculator keyboard and other products.
4. Industrial filtration industry: UDF filter end cap, filter memory non-woven fabric, industrial filter bag, air filter filter paper vibration friction welding machine, folding filter PP filter membrane, oil filter felt, filter cartridge and other products. Other industry applications: food industry packaging bags, packaging industry packaging belt, civil industry geogrid.
Two Ceramics 20Khz 800W Ultrasonic Welding Transducer for Plastic Device
