Plastic Ultrasonic Welding Transducer , Ultrasonic Vibration Transducer With Different Capacitor Range
  • name
  • name
  • name
  • name

Plastic Ultrasonic Welding Transducer , Ultrasonic Vibration Transducer With Different Capacitor Range

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-5020-2BZ
Products Name:
Ultrasonic Welding Transducer
Frequency:
20 Khz
Output Power:
800 Watt
Joint Bolt:
M18*1.5
Ceramic Disc Diameter:
50mm
Qty Of Ceramic Discs:
2pcs
Capacitance:
5.5-8nf
Amplitude:
10 Um
Highlight:

piezoelectric ceramic transducer

,

high frequency ultrasound transducer

Product Description

20Khz 800w Ultrasonic Welding Transducer with Different Capacitor Range





Description:



The transducer converts the ultrasonic frequency voltage from the generator into ultrasonic mechanical vibration of the same frequency by an inverse piezoelectric effect. It consists of a number of piezoceramic sheets sandwiched between two metal (usually titanium) blocks. A thin metal plate is formed between the sheet and the sheet to form an electrode. When a sinusoidal electrical signal is supplied to the transducer via the electrodes, the piezoelectric sheet expands and contracts, producing an axial peak-to-peak motion of 15-201 xm. The transducer is a precision device and should be handled with care.





Specifications:



Model QR-5020-2BZ
Frequency 20khz
Output power 800 watt
Joint bolt M18*1.5
Ceramic disc Diameter 50mm
Qty of ceramic discs 2pcs
Capacitance 5.5-8nf
Amplitude 10 um
Application Plastic welding machine





Transducer working mode:


Due to different processing methods and requirements, the working mode of the transducer can be roughly divided into continuous work (lace machine, CD set machine, zipper machine, metal welding, etc.) and pulse type work (such as plastic welding machine). Different working methods The requirements for the transducer are different. In general, continuous operation has almost no pause time, but the operating current is not very large, the pulse operation is intermittent, there is a pause, but the instantaneous current is very large. On average, the power of both states is large.





20Khz 800w Ultrasonic Welding Transducer with Different Capacitor Range

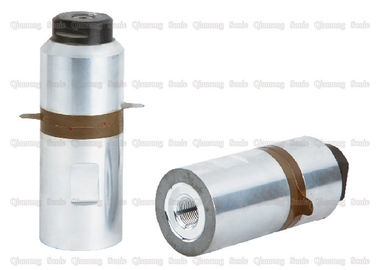

Plastic Ultrasonic Welding Transducer , Ultrasonic Vibration Transducer With Different Capacitor Range 0

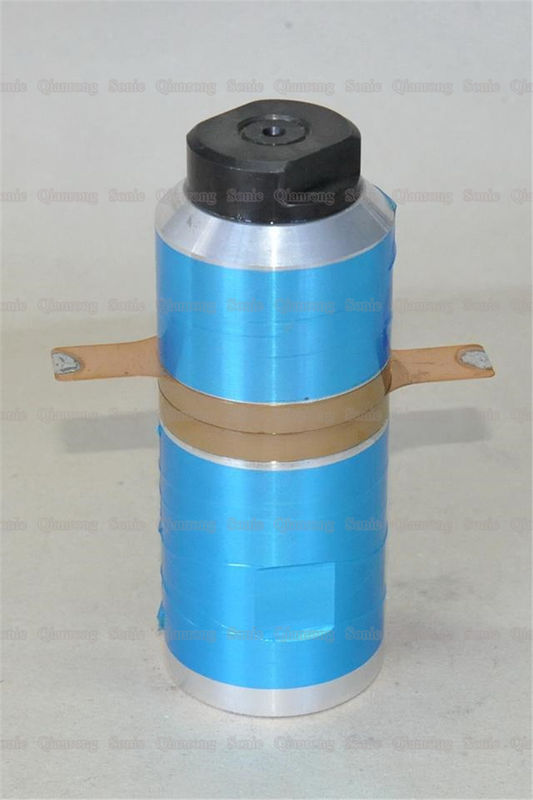

Plastic Ultrasonic Welding Transducer , Ultrasonic Vibration Transducer With Different Capacitor Range 1

Tags:

ultrasonic high power transducer,

piezoelectric ceramic transducer,

high frequency ultrasound transducer
