Steel Rear Cover 20 Khz Ultrasonic Transducer With Yellow Ceramics 1500 Watt
  • name
  • name
  • name
  • name

Steel Rear Cover 20 Khz Ultrasonic Transducer With Yellow Ceramics 1500 Watt

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-5020-4BL
Products Name:
Ultrasonic Welding Transducer
Frequency:
20 Khz
Output Power:
1500 Watt
Joint Bolt:
M18*1.5
Ceramic Disc Diameter:
50mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
11-12.5nf
Amplitude:
10 Um
Highlight:

ultrasonic high power transducer

,

high frequency ultrasound transducer

Product Description

Steel Rear Cover 20KHZ 1500W Ulrasonic Welding Transduer with Yellow Ceramics​





Description:



The ultrasonic transducer itself is not an energy generator, it is just an energy converter. It converts electrical energy into acoustic energy (mechanical energy), which can convert (output) a large amount of energy under the premise that the input (drive power) and output (amplifier, ultrasonic mold) are well matched. Let the ultrasonic transducer and the ultrasonic generator drive power supply and the ultrasonic mold cooperate well to form a complete ultrasonic device, which can be referred to as matching. Since the impact of matching on the performance of the whole machine is decisive, the importance of matching is not overemphasized. The primary consideration for matching is the capacitance of the transducer, followed by the frequency of the transducer.





Specifications:



Model QR-5020-4BL
Frequency 20khz
Output power 1500 watt
Joint bolt M18*1.5
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-12.5nf
Amplitude 10 um
Application Plastic welding machine





Functions of Booster:



The horn has two functions. Its main function is to amplify the mechanical vibration generated at the end of the transducer and transmit the vibration to the welding head. Another function is to provide the position of the fixing kit on the welding press. The horn also expands and contracts as the transducer applies ultrasonic energy. As with the other parts in the soldering kit, the horn is a tuning device, so it must also resonate at a specific frequency to transfer ultrasonic energy from the transducer to the horn. In order to function effectively, the horn must be an integral multiple of the half or half wavelength of the ultrasonic wave in the material from which it is made. Generally half wavelength.

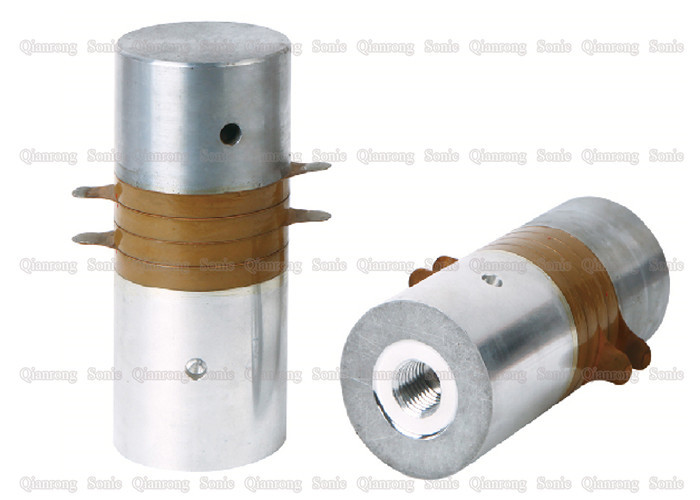

Steel Rear Cover 20KHZ 1500W Ulrasonic Welding Transduer with Yellow Ceramics



Steel Rear Cover 20 Khz Ultrasonic Transducer With Yellow Ceramics 1500 Watt 0





Steel Rear Cover 20 Khz Ultrasonic Transducer With Yellow Ceramics 1500 Watt 1





Tags:

ultrasonic high power transducer,

piezoelectric ceramic transducer,

high frequency ultrasound transducer
