28Khz Column Type Ultrasonic Piezoelectric Transducer 500W With 1/2-20UNF Screw
  • name
  • name
  • name
  • name

28Khz Column Type Ultrasonic Piezoelectric Transducer 500W With 1/2-20UNF Screw

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-3828-2BZ
Products Name:
Ultrasonic Welding Transducer
Frequency:
28 Khz
Output Power:
500 Watt
Joint Bolt:
1/2-20UNF
Ceramic Disc Diameter:
38mm
Qty Of Ceramic Discs:
2pcs
Capacitance:
3.7-4.2nf
Amplitude:
8um
Highlight:

ultrasonic piezo transducer

,

high frequency ultrasonic transducer

Product Description

28Khz 500W Ultrasonic Column Type Welding Transducer with 1/2-20UNF Screw





Description:



Ultrasound, as its name implies, exceeds the sound waves of conventional sound waves. Sound waves are longitudinal waves that can be felt by the human ear and have a frequency range of 16 Hz to 20 kHz. When the frequency of sound waves is lower than 16 Hz, it is called infrasound wave, and when it is higher than 20 kHz, it is called ultrasonic sound wave.
There are four aspects to ultrasonic properties:
1) Ultrasonic waves can be effectively propagated in media such as gases, liquids, solids, and solid solutions.
2) Ultrasonic waves can transmit very strong energy.
3) Ultrasonic waves will produce reflection, interference, superposition and resonance of the hot melt machine.
4) When ultrasonic waves propagate in a liquid medium, strong impact and cavitation can occur at the interface.





Specifications:



Model QR-3828-2BZ
Frequency 28khz
Output power 500 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 38mm
Qty of ceramic discs 2pcs
Capacitance 3.7-4.2nf
Amplitude 8 um
Application Plastic welding machine





Resonant frequency:


The frequency refers to a frequency measured by a transmission line method using a frequency generator, a millivoltmeter, or the like, or a frequency measured by an impedance analyzer or the like. Generally known as the small signal frequency. Opposite to it is the upper frequency, which is the actual operating frequency measured by the customer when the transducer is connected to the drive power supply via a cable and is unloaded or loaded. Because the customer's matching circuit is different, the same transducer with different driving power supply shows different frequencies, such frequency can not be used as the order basis.





28Khz 500W Ultrasonic Column Type Welding Transducer with 1/2-20UNF Screw

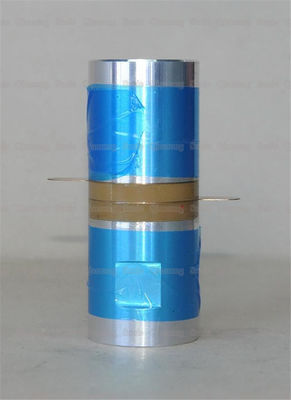

28Khz Column Type Ultrasonic Piezoelectric Transducer 500W With 1/2-20UNF Screw 0





28Khz Column Type Ultrasonic Piezoelectric Transducer 500W With 1/2-20UNF Screw 1
