NTK Column 300w High Frequency Ultrasound Transducer For Portable Spot Welder
  • name
  • name
  • name
  • name

NTK Column 300w High Frequency Ultrasound Transducer For Portable Spot Welder

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-3035-2FZ
Products Name:
Ultrasonic Welding Transducer
Frequency:
35 Khz
Output Power:
300 Watt
Joint Bolt:
3/8-24UNF
Ceramic Disc Diameter:
30mm
Qty Of Ceramic Discs:
2pcs
Capacitance:
2.7-3.1nf
Amplitude:
6um
Highlight:

ultrasonic piezo transducer

,

high frequency ultrasonic transducer

Product Description

NTK Column Ultrasonic 35KHZ 300w Welding Transducer for Portable Spot Welder





Description:



ultrasonic transducer is an energy conversion device whose performance description and evaluation requires many parameters. The characteristic parameters of the transducer include resonance frequency, frequency bandwidth, electromechanical coupling coefficient, electroacoustic efficiency, mechanical quality factor, impedance characteristics, frequency characteristics, directivity, transmission and reception sensitivity, and the like. Transducers for different applications have different performance parameters. For example, for an emissive transducer, the transducer is required to have a large output power and high energy conversion efficiency; and for a transducing transducer, a wide requirement is required. Frequency band and high sensitivity and resolution. Therefore, in the specific design process of the transducer, the relevant parameters of the transducer must be rationally designed according to the specific application.





Specifications:



Model QR-3035-2FZ
Frequency 35khz
Output power 300 watt
Joint bolt 3/8-24UNF
Ceramic disc Diameter 30mm
Qty of ceramic discs 2pcs
Capacitance 2.7-3.1nf
Amplitude 6 um
Application Plastic welding machine





Ultrasonic transducer sheet cleaning method:


1. First disconnect the power supply and operate.
2. Secondly, use special cleaning agent to remove dirt. When cleaning, add 5-8 drops of cleaning agent to the surface of the transducer. Of course, it should be increased or decreased according to the degree of scaling until the scale is removed. When cleaning the dirt, the water temperature should not exceed 50 °C; do not use hard objects to scrape the scale, do not use kerosene, alcohol, etc. to clean the fuselage and parts, so as not to damage the transducer.
3, note that hard tools can not be used to force descaling, so as not to scratch the transducer.

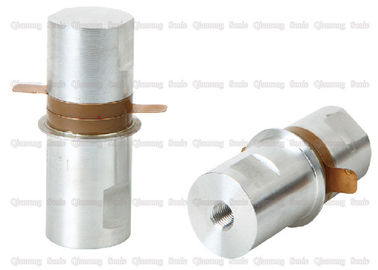

NTK Column Ultrasonic 35KHZ 300w Welding Transducer for Portable Spot Welder



NTK Column 300w High Frequency Ultrasound Transducer For Portable Spot Welder 0





NTK Column 300w High Frequency Ultrasound Transducer For Portable Spot Welder 1

Tags:

high frequency ultrasonic transducer,

ultrasonic piezo transducer,

piezoelectric transducer ultrasound
