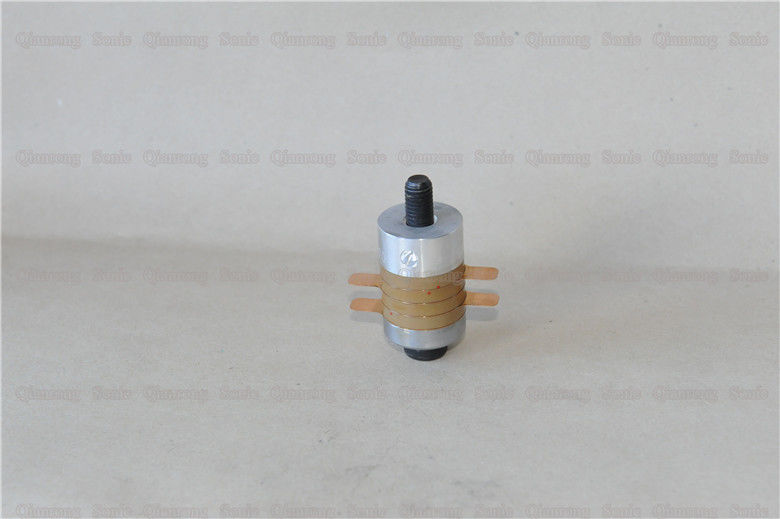

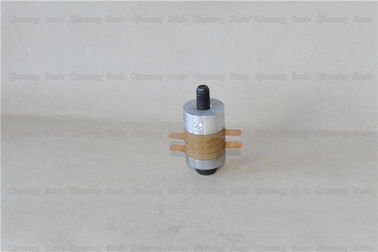

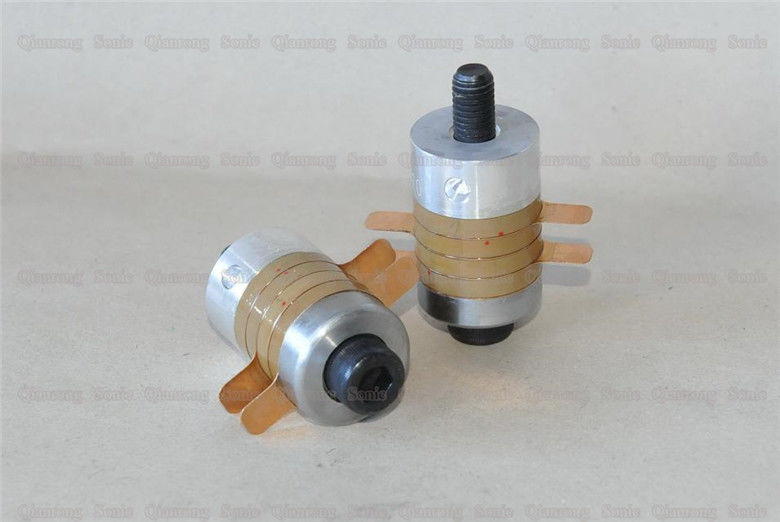

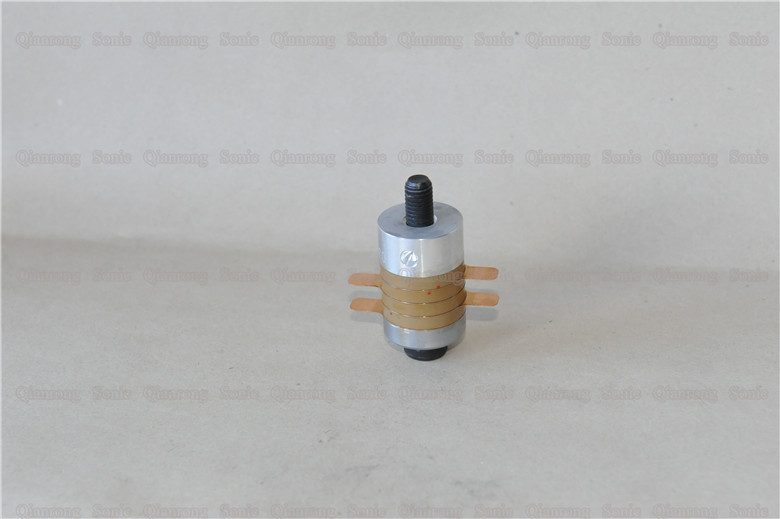

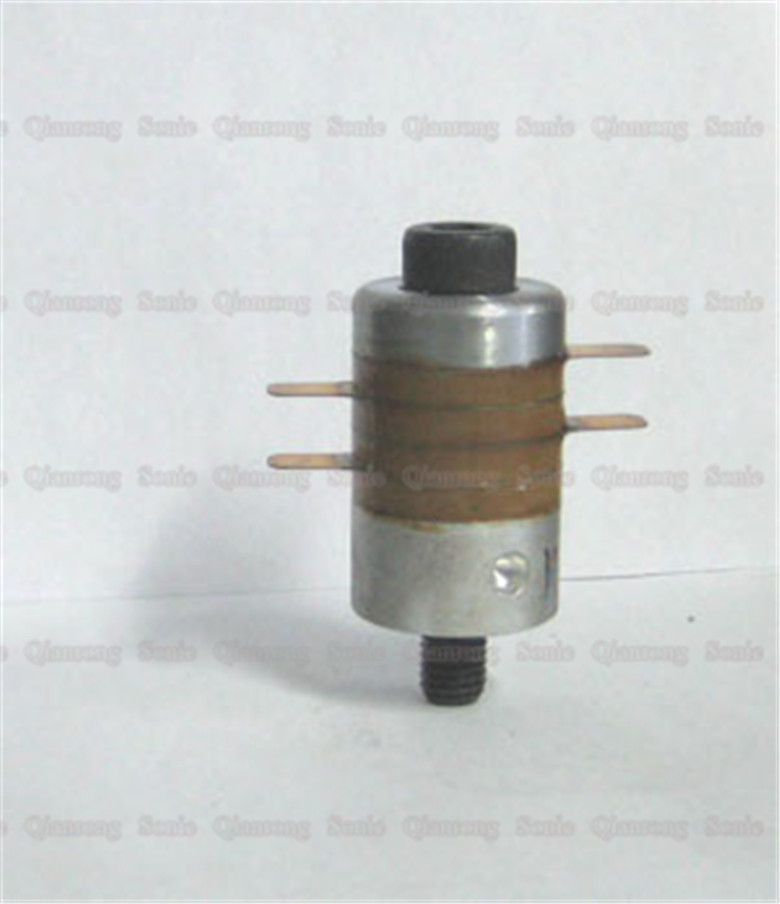

500 Watt Ultrasonic Piezoelectric Transducer With 4PCS Ceramics M10 Connected Screw
  • name
  • name
  • name
  • name

500 Watt Ultrasonic Piezoelectric Transducer With 4PCS Ceramics M10 Connected Screw

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-3040-4BZ
Products Name:
Ultrasonic Welding Transducer
Frequency:
40 Khz
Output Power:
500 Watt
Joint Bolt:
M10
Ceramic Disc Diameter:
30mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
5.1-7.5nf
Amplitude:
4um
Highlight:

piezoelectric transducer ultrasound

,

ultrasonic piezo transducer

Product Description

40Khz Ultrasonic Welding Transducer with 4PCS Ceramics M10 Connected Screw





Description:



The piezoelectric transducer system has its own resonant frequency f. When the frequency of the input electrical signal is close to the resonant frequency, the piezoelectric transducer produces mechanical resonance. When it is equal to the resonant frequency, its amplitude is the largest. By observing the oscilloscope waveform, the peak When the peak value is maximum, it is resonance, and the resonance frequency is read by an oscilloscope or a signal generator.





Specifications:



Model QR-3040-4BZ
Frequency 40khz
Output power 500 watt
Joint bolt M10
Ceramic disc Diameter 30mm
Qty of ceramic discs 4pcs
Capacitance 5.1-7.5nf
Amplitude 4 um
Application Plastic welding machine





Features of Ultrasonic transducer product :



1. High performance: high mechanical quality factor, electro-acoustic conversion energy rate of more than 90%.

2. Large amplitude: The vibrator has a high vibration velocity and is directly fixed to the bottom of the cleaning tank by the tamper bolt, so that the strength is improved, and the amplitude is increased by 50% or more compared with the magnetostrictive vibrator.

3. Good heat resistance: wide temperature range, low resonance impedance and low heat generation.

4. Strong structure: fastened with shackle, easy to install, high reliability.





40Khz Ultrasonic Welding Transducer with 4PCS Ceramics M10 Connected Screw

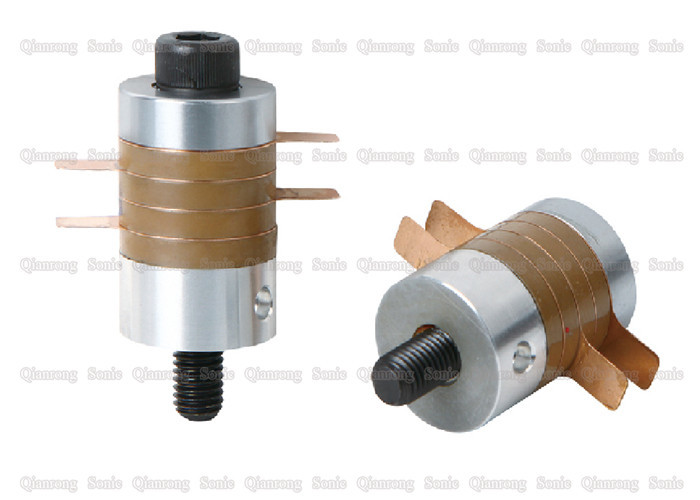

500 Watt Ultrasonic Piezoelectric Transducer With 4PCS Ceramics M10 Connected Screw 0

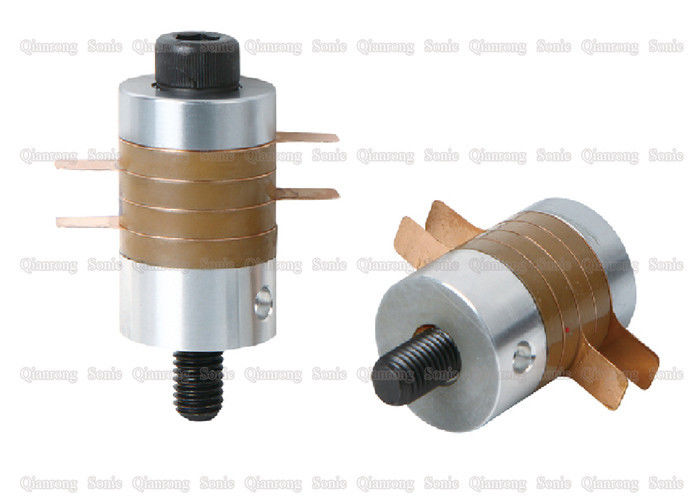

500 Watt Ultrasonic Piezoelectric Transducer With 4PCS Ceramics M10 Connected Screw 1
