3000RPM 20Khz Ultrasonic Drilling Machine For Engraving Hardness Materials

3000RPM 20Khz Ultrasonic Drilling Machine For Engraving Hardness Materials

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 20 workdays
Payment Method: T/T, Western Union
Supply Capacity: 1000pcs per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-M20A
Products Name:
Ultrasonic Assisted Machining
Frequency:
20KHZ
Power:
100W
Generator:
Digital Generator
Speed:
3000 R / Min Or Less
Matching Tool:
Carbide End Mill Head Φ2-Φ13; Disk Cutter Φ50
Highlight:

ultrasonic machining products

,

rotary ultrasonic machining

Product Description

3000RPM 20Khz Ultrasonic Drilling Machine for Engraving Hardness Materials





Description:



Ultrasonic machining (USM) uses the end face of the tool for ultrasonic vibration, through the abrasive

A processing method for processing hard and brittle materials in suspensions. Ultrasonic processing is the combined result of mechanical impact and polishing of the hot melt machine under the action of ultrasonic vibration and ultrasonic cavitation. The continuous impact of the abrasive is the main one.





Specifications:



Item No QR-M20A
Power 100W
Generator Digital generator
Frequency 20KHZ
Voltage 220V
Speed 3000 r / min or less
Resonance point amplitude 10um or more
Matching tool carbide end mill head Φ2-Φ13; disk cutter Φ50





Ultrasonic processing features:



(1) Wide processing range

a. It can process hard-working metal, non-metal materials such as hardened steel, stainless steel, titanium and its alloys; especially some non-conductive non-metallic materials such as glass, ceramic, quartz, silicon, agate, gemstone, diamond and various Semiconductors and the like can be processed for conductive hard metal materials such as hardened steel and hard alloy, but have low productivity.

b. Suitable for processing deep deep holes, thin-walled parts, slender rods, low rigidity and complex shapes, and requiring high parts;

c. Suitable for precision machining of precision parts such as high precision and low surface roughness.

(2) Low cutting force and low cutting power consumption Since ultrasonic machining mainly relies on instantaneous local impact, the macro cutting force on the surface of the workpiece is small, and the cutting stress and cutting heat are smaller.

(3) High workpiece processing accuracy and low surface roughness can achieve high machining accuracy (size accuracy of 0.005 to 0.02 mm) and low surface roughness (Ra value of 0.05 to 0.2), no residue on the machined surface Stress, burns, etc., also

Suitable for processing thin-walled, narrow-slit and low-stiffness parts.

(4) It is easy to process various types of holes, cavities and molding surfaces of complex shapes.

(5) Tools can be made into more complex shapes with softer materials.

(6) Ultrasonic processing equipment structure is generally simple, easy to operate and maintain.

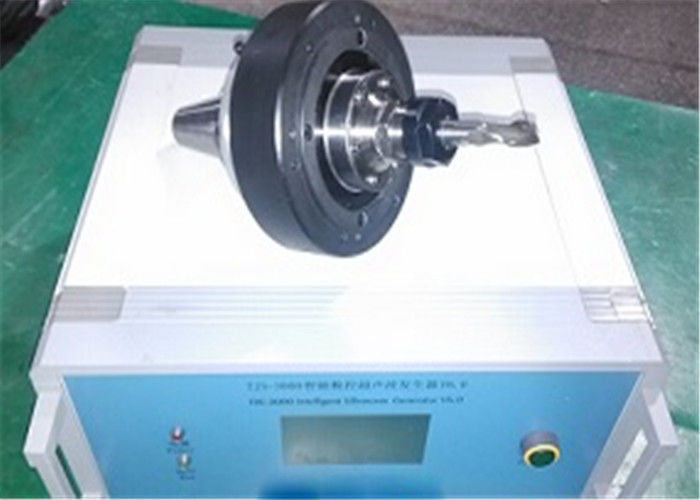

3000RPM 20Khz Ultrasonic Drilling Machine for Engraving Hardness Materials



3000RPM 20Khz Ultrasonic Drilling Machine For Engraving Hardness Materials 0





3000RPM 20Khz Ultrasonic Drilling Machine For Engraving Hardness Materials 1
