35Khz Ultrasonic Sewing Machine Rotary Module For Bonding Nonwovens Films And Textiles
  • name
  • name
  • name
  • name

35Khz Ultrasonic Sewing Machine Rotary Module For Bonding Nonwovens Films And Textiles

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 7 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-S35A
Products Name:
Ultrasonic Sewing Machine
Frequency:
35KHZ
Power:
800W
Generator:
Analog Generator
Width Of Welding Wheel:
11.5mm
Matched Transducer:
3535-2D PZT4
Generator Size:
250*200*430mm
Application:
Fabric Materials
Highlight:

ultrasonic embossing machine

,

ultrasonic fabric sewing machine

Product Description

35Khz Ultrasonic Rotary Module for Bonding Nonwovens Films and Textiles





Description:



Ultrasonic sewing machine, ultrasonic seamless bonder is applicable to flat sewing machine’s sewing of nylon cloth, PVC, PU, TPU, TC cloth, non-woven fabric and other thermoplastic cloth. Ultrasonic working head generates high frequency vibration to make cloth interface fused, so needles and threads are not needed; the interface has no needle holes and it can realize completely seamless effect. According to product demand, especially punctiform plastic welding, e.g. welding of both ends of clothing zippers, it is smokeless, tasteless and odorless, so the machine is a set of environment-friendly production equipment in demand at present. If auxiliary processing devices are installed, the processing quality can be controlled and the production rate can be enhanced.





Specifications:



Item No QR-S35A
Power 800W
Generator Analog generator
Frequency 35KHZ
Voltage 220V or 110V
Width of welding wheel 11.5mm
Matched Transducer 3535-2D PZT4
Generator size 250*200*430mm





Common faults and fault elimination methods:



Phenomena Faults Fault elimination methods



No ultrasonic wave

① Ultrasonic power switch is damaged;

② Ultrasonic power switch is not closed;

③ Transducer wire is disconnected;

④ Ultrasonic generator is damaged.

① Replace the switch;

② Close the ultrasonic power switch;

③ Reconnect the transducer wire or tighten it;

④ Repair the ultrasonic generator.







Upper press wheel has no action

① Air supply is not connected;

② Solenoid valve is damaged;

③ Mechanical part is blocked;

④ Pressure regulating valve fails to regulate the pressure or is damaged.

⑤ Cylinder is damaged.

① Connect air supply;

② Replace the solenoid valve;

③ Check mechanical part;

④ Regulate the pressure or replace the pressure regulating valve;

⑤ Replace the cylinder.





Wheels do not rotate

① Chain jackscrew is loose;

② Synchronous belt is broken or loose;

③ Main board has no output;

④ Driver is damaged.

① Tighten the chain jackscrew;

② Replace or tighten the synchronous belt;

③ Replace main board;

④ Replace the driver.

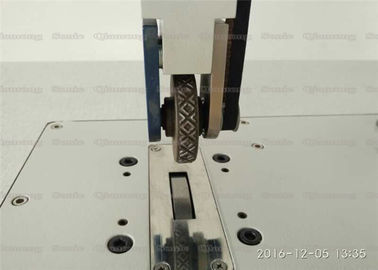

35Khz Ultrasonic Rotary Module for Bonding Nonwovens Films and Textiles



35Khz Ultrasonic Sewing Machine Rotary Module For Bonding Nonwovens Films And Textiles 0



35Khz Ultrasonic Sewing Machine Rotary Module For Bonding Nonwovens Films And Textiles 1



Tags:

ultrasonic fabric sewing machine,

ultrasonic embossing machine,

ultrasonic fabric welding machine
