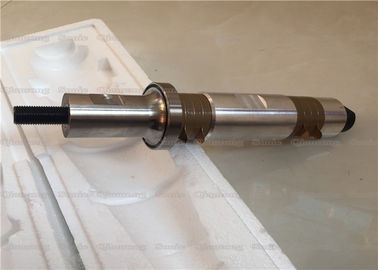

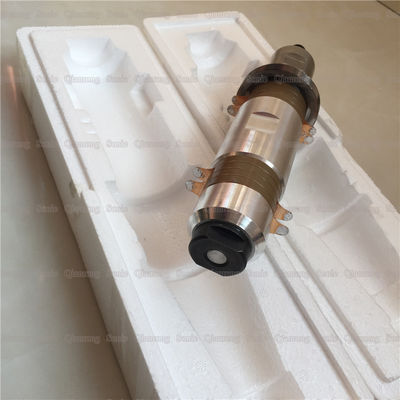

High Power Piezoelectric Ultrasonic Welding Transducer 6000w 20Khz 8pcs Ceramics
  • name
  • name
  • name
  • name

High Power Piezoelectric Ultrasonic Welding Transducer 6000w 20Khz 8pcs Ceramics

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-5520-8BZ
Products Name:
Ultrasonic Welding Transducer
Frequency:
20 Khz
Output Power:
6000 Watt
Joint Bolt:
M18*1.5
Ceramic Disc Diameter:
55mm
Qty Of Ceramic Discs:
8pcs
Capacitance:
17-22.5nf
Amplitude:
15 Um
Highlight:

ultrasonic high power transducer

,

piezoelectric ceramic transducer

Product Description

High Power 6000w 20Khz Ultrasonic Piezoelectric Welding Transducer 8pcs Ceramics





Description:



The ultrasonic transducer itself is not an energy generator, it is just an energy converter. It converts electrical energy into acoustic energy (mechanical energy), which can convert (output) a large amount of energy under the premise that the input (drive power) and output (amplifier, ultrasonic mold) are well matched. Let the ultrasonic transducer and the ultrasonic generator drive power supply and the ultrasonic mold cooperate well to form a complete ultrasonic device, which can be referred to as matching. Since the impact of matching on the performance of the whole machine is decisive, the importance of matching is not overemphasized. The primary consideration for matching is the capacitance of the transducer, followed by the frequency of the transducer.





Specifications:



Model QR-5520-8BZ
Frequency 20khz
Output power 6000 watt
Joint bolt M18*1.5
Ceramic disc Diameter 55mm
Qty of ceramic discs 8pcs
Capacitance 17-22.5nf
Amplitude 15 um
Application Plastic welding machine





Parameters:



The columnar type NTK TYPE

(stabilized power and high reliability widely application)



Item No.



Connect screw (Size)



Ceramic diameter (mm)



Quantity of Ceramic (pc)



Resonance frequency (khz)



Resistance (Ω)



 Capacitance

Input power (W)



Max. Amplitude (um)


Yellow Grey Black
7015-4BZ M20 X 1.5 70 4 15 15

12500-

14000

 / 17000-19000 2600 10
6015-4BZ M20 X 1.5 or M16 X 1 60 4 15 15

8000-

10000

10000-

12000

 12500-13500 2200 10
6015-6BZ M20 X 1.5 60 6 15 15

14000-

16000

 / 19500-21000 2600 10
5015-4BZ M18 X 1.5 50 4 15 15

12000-

13000

13000-

14300

 15000-17000 1500 8
4015-4BZ M16 X 1 40 4 15 15

10000-

11000

10500-

11500

   700 8
5520-4BZ M18 X 1 55 4 20 15

10000-

11000

10500-

11500

 14300-20000 2000 8
5020-6BZ M18 X 1.5 50 6 20 15

18500-

20000

 / 22500-25000 2000 8
5020-4BZ M18 X 1.5 50 4 20 15

11000-

13000

13000-

15000

 15000-17000 1500 8
5020-2BZ M18 X 1.5 50 2 20 20

6000-

6500

6500-

7000

 8000-9000 800 6
5020-4CZ M18 X 1.5 50 4 20 15

11000

-12000

13000-

14000

 14500-16000 1500 8
5020-4HZ M18 X 1.5 50 4 20 15 / / 11000-12000 1500 8
5020-4BL M18 X 1.5 50 4 20 15

11000

-12500

 / / 1500 8
4020-4BZ 1/2-20UNF 40 4 20 15

9000-

10000

9500

-11000

 / 900 6
4020-2BZ 1/2-20UNF 40 2 20 25 /

4800-

5500

 / 500 5
3820-4BZ 1/2-20UNF 38 4 20 15

6500-

7500

 / / 800 6
5025-2BZ M12 X 1 50 2 25 25

5000-

5600

 / 7000-8000 500 4
3828-2BZ 1/2-20UNF 38 2 28 30

3800-

4300

 / / 500 3
3828-4BZ 1/2-20UNF 38 4 28 30

7600-

8500

 / 10500-12000 800 4
3028-2BZ 3/8-24UNF 30 2 28 30

2700-

3100

3400-

3800

 / 400 3
3028-4BZ M10*1 30 4 28 30 /

6000-

7000

 / 700 4
2528-4FZ M8 X 1 25 4 28 30

3900-

4300

 / / 400 4
2528-2FZ M8 X 1 or 3/8-24UNF 25 2 28 35

1950-

2200

2200-

2500

 / 300 3
3030-4BZ M10 30 4 30 30 /

6200-

6900

 / 700 4
3035-2FZ 3/8-24UNF 30 2 35 40

2700-

3100

 / / 500 2
3035-4BZ M10 X 1 30 4 35 30

5000-

6200

 / / 800 3
2535-2FZ M8 X 1 25 2 35 40

1900

-2200

 / / 400 2
2540-2BZ 3/8-24UNF 25 2 40 40 /

2000-

2300

 / 500 2
3040-4BZ M10 30 4 40 30

5500-

6200

 / / 1000 2
3050-4BZ M8 30 4 50 30

5500-

6200

 / / 600 2
1560-2BZ M6 X 0.75 15 2 60 60 / / 700-800 100 1
