Widely Use Ultrasonic Metal Spot Welder In Various Automation Industries

Widely Use Ultrasonic Metal Spot Welder In Various Automation Industries

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-D2050A
Products Name:
Ultrasonic Metal Welding
Frequency:
20KHZ
Power:
5000W
Voltage:
380V
Air Pressure:
0.05-0.9Mpa
Dimension Of Generator:
540*380*150mm
Highlight:

ultrasonic metal welding equipment

,

ultrasonic welding machine

Product Description


Widely used in Various Automation Industries by 20Khz Ultrasonic Metal Spot Welder


Description:

The characteristics of the ultrasonic metal welding machine are: not only the same kind of metal, but also the welding between the different metals. Flux and external heating are not required, no deformation due to heat, no residual stress, and pre-weld treatment on the surface of the weldment is not high. Sheets or filaments can be welded to the slab. Ultrasonic welding of good electrical conductors is much less energy than current welding and is commonly used for the soldering of leads for transistors or integrated circuits. When used for sealing welding of drugs and explosive materials, it can avoid the general welding of contaminated drugs due to dissolved objects, and will not explode due to heat.


Specifications:


Item NoQR-D2020AQR-D2030AQR-D2050A
Power2000W3000W5000W
Air Pressure0.05-0.9MPa0.05-0.9MPa0.05-0.9MPa
Frequency20KHZ20KHZ20KHZ
Voltage220V220V380V
Weight of horn55KG60KG88KG
Dimension of Horn550*280*380mm550*280*430mm550*380*660mm
Generator Size540*380*150mm540*380*150mm540*380*150mm



Features:

1). High reliability of ultrasonic metal spot welding machine:
Ultrasonic welding guarantees excellent process control through welding time, curing time and delay time.
2). Ultrasonic metal spot welding machine cost savings:
Consumables such as solder, flux, bends and brass materials are avoided, making ultrasonic welding a process with excellent economics.
3). Ultrasonic metal spot welding machine has low energy consumption: the energy required for ultrasonic welding is less than 1/3 of flame welding or brazing
4). Tool life:
Ultrasonic tools are precision machined steel with excellent wear resistance, easy installation and high welding precision.
Each welding tool head has two or more working faces.
5). Ultrasonic metal spot welding machine high efficiency:
The welding time can be adjusted according to actual requirements, and the typical welding speed does not exceed 0.5 seconds.
6). Ultrasonic metal spot welding machine automation potential:
Small size, low maintenance workload and strong adaptability make ultrasonic equipment the first choice for automated assembly lines.
7). Ultrasonic metal spot welder low operating temperature:
Since ultrasonic welding does not generate a large amount of heat, it does not anneal the metal workpiece, does not melt the appendage, and does not require cooling water.
8). Ultrasonic metal spot welding machine effectively compensates:
Due to the placement position or parameter setting error, it can continue to work in the case of insufficient soldering, enhance or repair the imperfect parts.


Widely used in Various Automation Industries by 20Khz Ultrasonic Metal Spot Welder​

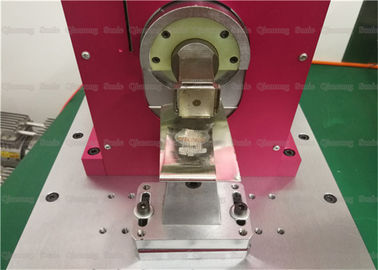

Widely Use Ultrasonic Metal Spot Welder In Various Automation Industries 0

Widely Use Ultrasonic Metal Spot Welder In Various Automation Industries 1
