Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-S35A |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Sewing Machine | Frequency: | 35KHZ |
|---|---|---|---|
| Power: | 800W | Generator: | Analog Generator |
| Width Of Welding Wheel: | 11.5mm | Matched Transducer: | 3535-2D PZT4 |
| Generator Size: | 250*200*430mm | Application: | Fabric Materials |
| Highlight: | ultrasonic embossing machine,ultrasonic fabric sewing machine |
||

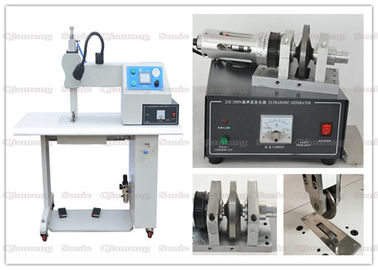

35Khz Ultrasonic Textile Sealing and Cuttig Machine with Rotary Titanium Wheel
Description:
Ultrasonic sewing machine, ultrasonic seamless bonder is applicable to flat sewing machine’s sewing of nylon cloth, PVC, PU, TPU, TC cloth, non-woven fabric and other thermoplastic cloth. Ultrasonic working head generates high frequency vibration to make cloth interface fused, so needles and threads are not needed; the interface has no needle holes and it can realize completely seamless effect. According to product demand, especially punctiform plastic welding, e.g. welding of both ends of clothing zippers, it is smokeless, tasteless and odorless, so the machine is a set of environment-friendly production equipment in demand at present. If auxiliary processing devices are installed, the processing quality can be controlled and the production rate can be enhanced.
Specifications:
| Item No | QR-S35A |
| Power | 800W |
| Generator | Analog generator |
| Frequency | 35KHZ |
| Voltage | 220V or 110V |
| Width of welding wheel | 11.5mm |
| Matched Transducer | 3535-2D PZT4 |
| Generator size | 250*200*430mm |
Common faults and fault elimination methods:
| Phenomena | Faults | Fault elimination methods |
|
No ultrasonic wave |
① Ultrasonic power switch is damaged; ② Ultrasonic power switch is not closed; ③ Transducer wire is disconnected; ④ Ultrasonic generator is damaged. |
① Replace the switch; ② Close the ultrasonic power switch; ③ Reconnect the transducer wire or tighten it; ④ Repair the ultrasonic generator. |
|
Upper press wheel has no action |
① Air supply is not connected; ② Solenoid valve is damaged; ③ Mechanical part is blocked; ④ Pressure regulating valve fails to regulate the pressure or is damaged. ⑤ Cylinder is damaged. |
① Connect air supply; ② Replace the solenoid valve; ③ Check mechanical part; ④ Regulate the pressure or replace the pressure regulating valve; ⑤ Replace the cylinder. |
|
Wheels do not rotate |
① Chain jackscrew is loose; ② Synchronous belt is broken or loose; ③ Main board has no output; ④ Driver is damaged. |
① Tighten the chain jackscrew; ② Replace or tighten the synchronous belt; ③ Replace main board; ④ Replace the driver. |
35Khz Ultrasonic Textile Sealing and Cuttig Machine with Rotary Titanium Wheel
