Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-S35D |
Minimum Order Quantity: | 1 unit |
Price: | Negotation |
Packaging Details: | Packed in wooden case |
Delivery Time: | 7 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Products Name: | Ultrasonic Sewing Machine | Frequency: | 35KHZ |
---|---|---|---|
Power: | 1000W | Generator: | Digital Generator |
Width Of Welding Wheel: | 11.5mm | Matched Transducer: | 3535-4D PZT4 |
Generator Size: | 250*200*430mm | Application: | Fabric Materials |
Highlight: | ultrasonic embossing machine,ultrasonic fabric sewing machine |

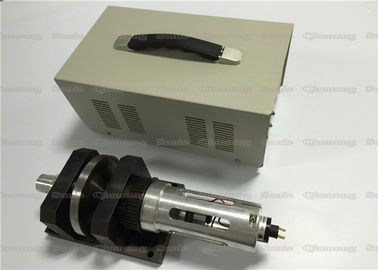

Logitudinal Stitching Fabric with 35Khz Ultrasonic Wheel Sealing Sonotrode
Description:
Ultrasonic rotary vibration is used for fabric stitching and cutting, and is a newly developed technological achievement in the world. Hangzhou Qianrong Automation Equipment closely tracks the new research results of foreign countries and develops ultrasonic seamless sewing movements. This is the core component of an ultrasonic seamless sewing machine (also called an ultrasonic radial sewing machine). It completely solves the inherent problem of the original ultrasonic longitudinal vibration technology, that is, the moving direction of the ultrasonic welding head is inconsistent with the moving direction of the cloth, and is not synchronized. The precision of ultrasonic cloth stitching has been greatly improved, making it possible to apply ultrasonic technology widely in the field of garment stitching. Ultrasonic seamless sewing has the characteristics of fast welding speed, high strength, beautiful weld seam, good sealing performance, low energy consumption and simple operation. It is the development direction of sewing machine.
Specifications:
Item No | QR-S35D |
Power | 1000W |
Generator | Digital generator |
Frequency | 35KHZ |
Voltage | 220V or 110V |
Width of welding wheel | 11.5mm |
Matched Transducer | 3535-4D PZT4 |
Generator size | 250*200*430mm |
Features of Ultrasonic Sewing machine:
Ultrasonic Sewing machine has high conversion rate and long life
The power and frequency of the ultrasonic lace machine adopts the analog pulse high-frequency oscillation form, which can observe the change of power and frequency at any time, and provides an accurate basis for controlling and detecting ultrasonic waves.
Wide frequency tracking technology: When the output frequency of the ultrasonic generator does not match the frequency of the transducer, it not only affects the experimental effect, but even damages the device when the deviation is large. Therefore, we use frequency tracking technology to make the output frequency of the ultrasonic generator always match the frequency of the transducer, thus ensuring the quality of stitching and embossing, and greatly extending the life of the ultrasonic generator and the transducer device.
Ultrasonic sewing machine is an efficient suture, embossing device. It is mainly used for the seam edge, fusion edge, melt cutting, embossing of synthetic fiber fabrics. The processed products have good water tightness, high production efficiency, no needle thread accessories, smooth melted surface without burrs and good hand feeling.
Advantages:
Compared to traditional needle-type wire stitching, ultrasonic stitching has the following advantages:
1.Using ultrasonic welding, it avoids the need for needle threading, eliminating the trouble of frequent needle changing. It can also clean and partially cut and seal textiles without the traditional broken wire joints. The stitching also plays the role of decoration, strong adhesion, waterproof effect, clear embossing, more three-dimensional relief effect on the surface, fast working speed, good product effect and high-grade appearance; quality is guaranteed.
2.Using ultrasonic and special steel wheel processing, the edge of the seal will not crack, and it will not hurt the edge of the cloth, and there is no burr or curling.
3. It does not need to be preheated during manufacture and can be operated continuously.
4. The operation is simple, and there is not much difference between the traditional sewing machine operation method, and the ordinary sewing machine can operate.
5. Low cost, 5 to 6 times faster than traditional machines, and high efficiency.
Logitudinal Stitching Fabric with 35Khz Ultrasonic Wheel Sealing Sonotrode
