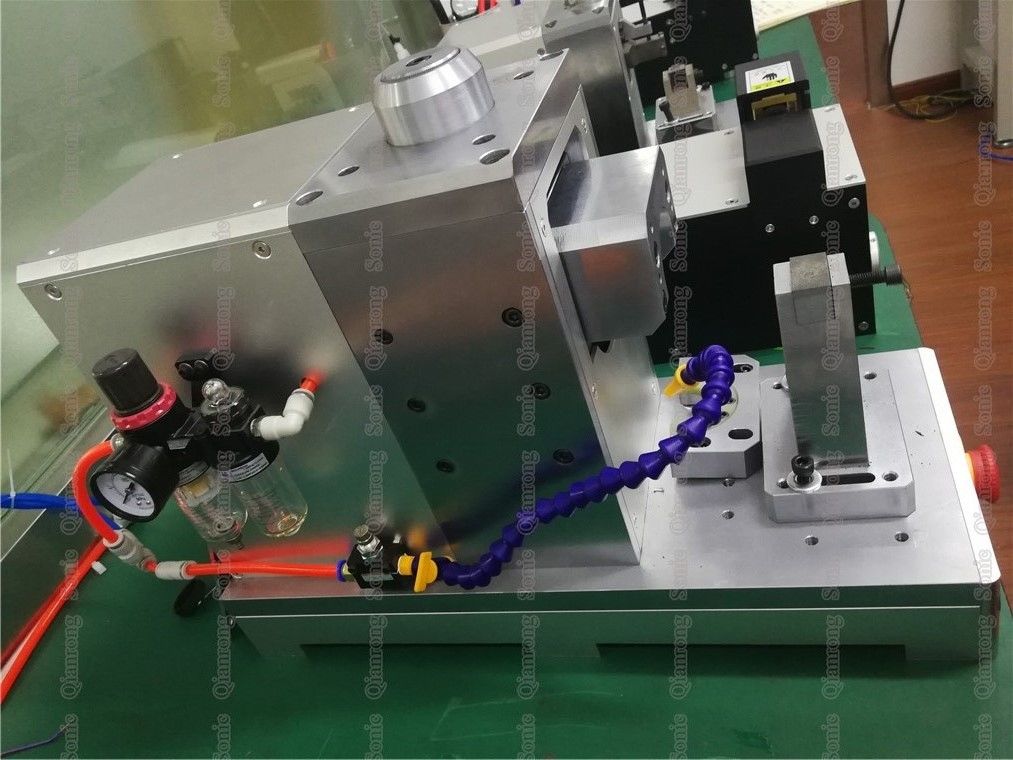

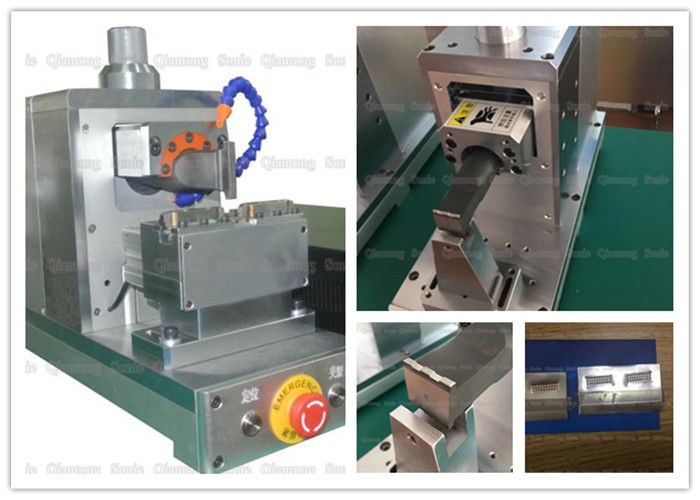

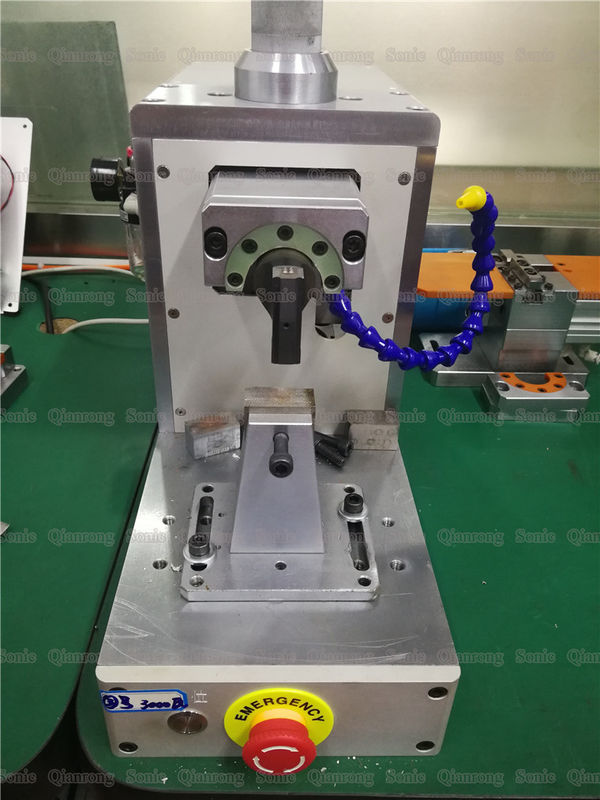

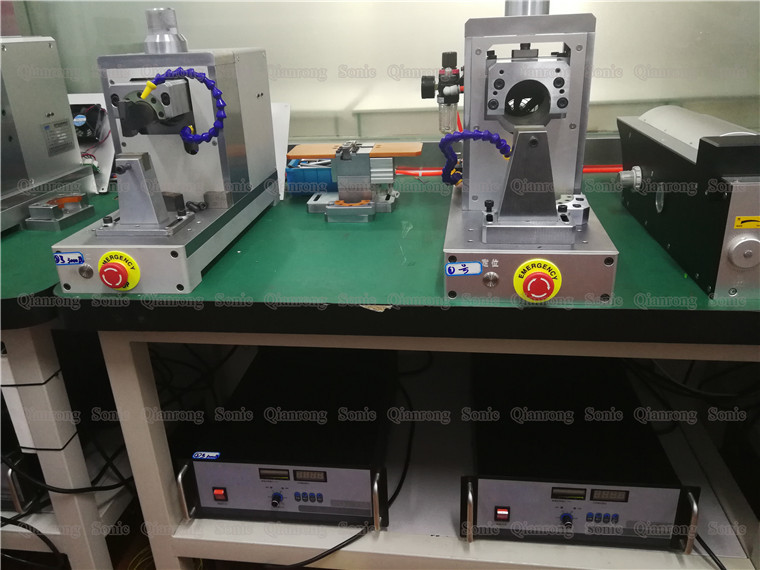

Non Fragile Metal Properties Ultrasonic Welding Machine 20khz High Power Low Resistivity

Non Fragile Metal Properties Welding by 20khz High Power Ultrasonic Low Resistivity


Description:

Ultrasonic welding of non-ferrous metals (such as copper and aluminum) is a proven welding technology in the industry that has been tested for many years. Ultrasonic welding is extremely fast and takes only 1 to 3 seconds, depending on the size of the welded joint. Compared to other welding processes, when using ultrasonic welding technology, the joints heat up less and therefore do not reach their melting point. This gives it many advantages not found in other connectivity technologies. It also does not damage other materials nearby, such as wire insulation. These include simple wire and busbar connections, wire and contact soldering in the automotive and electronics fields, and special applications for enamel winding wires, films and sheets, and in the transition to solid materials, the joints do not embrittle. . The higher welding strength is produced by the relaxation process of the first two atomic layers of the component to be welded. The welding method is similar to diffusion welding and has a wide variety of applications in the metal field.


Node:

The welding head and the horn are designed as a half-wavelength resonator with an operating frequency. Under the working condition, the amplitude of the two end faces is the largest and the stress is the smallest, and the amplitude of the node corresponding to the intermediate position is zero and the stress is the largest. The position of the node is generally designed to be a fixed position, but the usual fixed position is designed to have a thickness greater than 3 mm, or the groove is fixed, so the fixed position does not necessarily have a zero amplitude, which causes some sound and part of the energy loss. The sound is usually isolated from other components by a rubber ring or shielded with a sound insulating material. Energy loss is taken into account when designing the amplitude parameters.

Parameters:

Ultrasonic metal welding products:

Nickel-metal hydride battery nickel-metal hydride battery nickel mesh and nickel sheet inter-melting

Lithium battery, polymer battery copper foil and nickel sheet inter-melting, aluminum foil and aluminum sheet inter-melting

The wires are mutually melted and are entangled into one and more fuses.

Wire and various electronic components, contacts, connectors and mutual melting

Large-scale heat sinks, heat exchange fins, and honeycomb cores of various household appliances and auto accessories

Large current contacts such as electromagnetic switches and non-fuse switches, and mutual melting of dissimilar metal sheets

Metal tube sealing, cutting can be water, airtight

Solar heat absorbing plate, aluminum-plastic composite pipe, and aluminum plate splicing


Precautions of Ultrasonic metal spot welding :

Ultrasonic metal spot welding is widely used in a wide range of applications, including automotive components, high and low voltage electrical appliances, and electronic components.
1. Ultrasonic metal welding is generally less than 5 mm thick due to attenuation during ultrasonic transmission.
2. The function of the grain is anti-slip, and the shape of the welding head and the texture are determined according to the workpiece size, material and amplitude requirements. The working weight is the key consideration, and the reason is the amount of inertia.
3. It is important to consider the resonance that the ultrasonic vibration will form. The resonance will cause the weldment to break and desold.
4. The fixture design must not violate the ultrasonic principle.
5. Ultrasonic welding skills can also be destroyed, and energy control is required.
