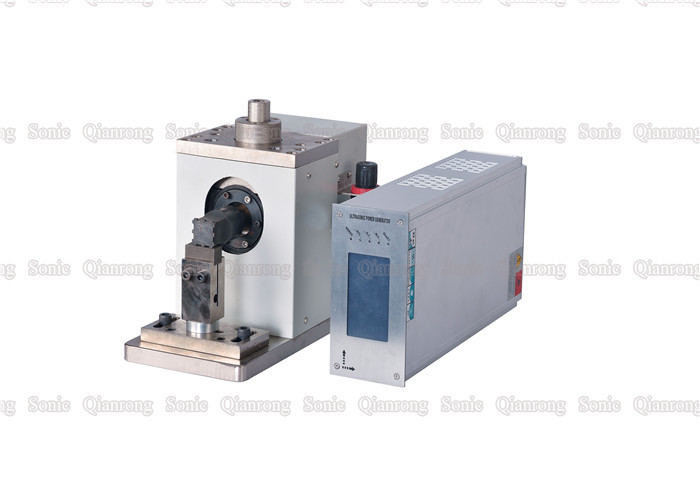

High Precision And Performance Ultrasonic Metal Welder , Ultrasonic Spot Welder

High Precision And Performance Ultrasonic Metal Welder , Ultrasonic Spot Welder

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-D2030Q
Products Name:
Ultrasonic Metal Welding
Frequency:
20KHZ
Power:
3000W
Voltage:
220V
Air Pressure:
0.05-0.9Mpa
Dimension Of Generator:
400*195*98mm
Highlight:

ultrasonic welding process

,

ultrasonic welding machine

Product Description



Latest High Precision and Performance 20Khz Ultrasonic Metal Spot Welder



Description:


The latest ultrasonic metal welding machine has the advantages of welding metal products together without changing the metal material structure, and has the characteristics of high strength, welding time period, strong welding conductivity, high efficiency, low cost safety and environmental protection.

The structure of the metal ultrasonic welding machine adopts excellent mechanical structure design to ensure the stability of the welding of the equipment. The spot welding machine with different pressure and stroke greatly meets the requirements of customers' diversified products. Design team to provide customers with more professional product welding solutions.



Specifications:



Item No QR-D2020A QR-D2030A QR-D2050A QR-D2030Q
Power 2000W 3000W 5000W 3000W
Air Pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20KHZ 20KHZ 20KHZ 20KHZ
Voltage 220V 220V 380V 220V
Weight of horn 55KG 60KG 88KG 60KG
Dimension of Horn 550*280*380mm 550*280*430mm 550*380*660mm 550*280*430mm
Generator Size 540*380*150mm 540*380*150mm 540*380*150mm 400*195*9mm




Advantages:


1). The welding material does not melt and is not fragile.
2). good electrical conductivity after welding, the resistance coefficient is extremely low or nearly zero.
3). the welding metal surface requirements are low, oxidation or plating can be welded.
4). welding time is short, no need for any flux, gas, solder.
5). welding without sparks, environmental protection and safety.





Ultrasonic metal welding machine for products:



1. Nickel-metal hydride battery Nickel-metal hydride battery nickel mesh and nickel sheet inter-melting and nickel sheet inter-melting. .

2. Lithium battery, polymer battery copper foil and nickel sheet are mutually melted, and aluminum foil and aluminum sheet are mutually melted. .

3. the wires are mutually melted, and the ones are entangled into one and a plurality of mutually melted.

4. the wire and the name of the electronic components, contacts, connectors and mutual fusion.

5. the mutual melting of large-scale heat sinks, heat exchange fins, and honeycomb hearts of famous household appliances and automotive products.

6. electromagnetic switch, no fuse switch and other large current contacts, mutual melting of dissimilar metal pieces.

7. The sealing and cutting of the metal pipe can be water and airtight.



Latest High Precision and Performance 20Khz Ultrasonic Metal Spot Welder



High Precision And Performance Ultrasonic Metal Welder , Ultrasonic Spot Welder 0



High Precision And Performance Ultrasonic Metal Welder , Ultrasonic Spot Welder 1
