Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-CF305 |
Minimum Order Quantity: | 1 unit |
Price: | Negotation |
Packaging Details: | packed in carton box |
Delivery Time: | 3 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Products Name: | Ultrasonic Cutter | Frequency: | 20KHZ |
---|---|---|---|
Power: | 1000W | Generator: | Digital Generator |
Voltage: | 220V Or 110V | Generator Dimension: | 380*250*150mm |
Cutter Dimension: | 425*305*80mm | Weight: | 14kgs |
Highlight: | High Frequency Ultrasonic Cutting Machine,Vibration Ultrasonic Cake Cutting Machine,Vibration Ultrasonic Cutting Machine |
High Frequency Vibration Ultrasonic Cutting Machine Safe And Environmentally Friendly
Description:
Ultrasonic food cutting knives use high-frequency ultrasonic vibrations and cut with sharp edges to reduce pressure on food and extend tool life. The Kenyon ultrasound equipment provides complete customization of OEM components, kits and corners. Typical applications include cheese cutting, cutting of cake and dessert products, cutting of confectionery products, meat cutting, sandwich and package cutting.
Dairy manufacturers typically use ultrasonic food cutting systems to dispense hard or mild seasoned cheese that is difficult to slice.
Ultrasonic blades may vary in length and height depending on the customer's specific requirements. They are made of titanium or stainless steel.
The digital generator for ultrasonic food cutting knives provides the ability to add, reduce and modify its operating parameters, with parameters such as amplitude, output power and time.

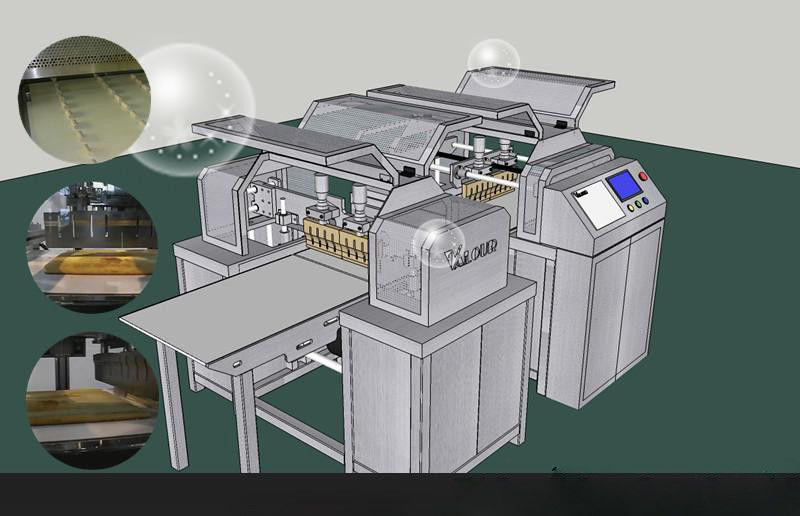

For ultrasonic food cutting applications embedded in automated production lines, we offer vibration groups of different frequencies from 20, 30 to 40 kHz according to the requirements of the end user, keeping the work safe and noise free during the manufacturing phase.
Specifications:
Item No | QR-CF305 |
Power | 1000W |
Generator | Digital generator |
Frequency | 20KHZ |
Voltage | 220V or 110V |
Cutter Dimension | 425*255*80mm |
Generator Dimension | 380*305*150mm |
Gross weight | 14Kg |
Advantages:
1. High stability: The ultrasonic generator generates electromagnetic vibration when it is working, and converts it into mechanical oscillation and transmits it to the cutting knives and cutting materials. The mechanical cutting is performed, so no sharp cutting edge is needed, and the blade wear is small, and at the same time The cutter head can be replaced by itself.
2. Safety and environmental protection: When the ultrasonic knife is cut, the temperature of the cutter head is lower than 50 degrees Celsius, and no smoke and odor will be generated, which eliminates the danger of injury and fire during cutting.
3. Cutting neatly: Since the ultrasonic wave is cut by high-frequency vibration, the material will not adhere to the surface of the blade, only a small pressure is required for cutting, and the fragile and soft materials are not deformed and worn, and the fabric is cut and automatically sealed. Will not cause chipping.
4. Simple operation: the cutting knife is connected to the ultrasonic generator, the generator is connected to 220V mains, and the switch can be cut to support hand-held and machine-mounted cutting.
High-frequency Vibration 20khz 305mm Ultrasonic Food Cutting Safe and Environmentally Friendly
