| Products Name: | Ultrasonic Plastic Welding Machine | Frequency: | 35Khz |
|---|---|---|---|
| Power: | 800w | Generator: | Digital Generator |
| Welding Head: | Aluminum Or Titanium | Application: | Various Plastic Materials |
| Highlight: | Inlay Ultrasonic Plastic Welding Machine,handheld ultrasonic plastic welder,Crimping Ultrasonic Plastic Welding Machine |
||
Inlay and Crimping Process Between Metal Parts and Plastic Parts by 35Khz Ultrasonic Welder
Description:

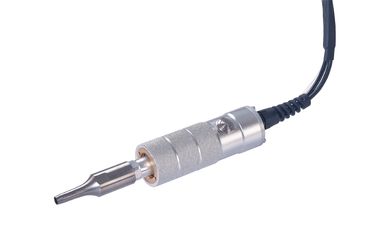

Hand-held ultrasonic welding machine, also known as ultrasonic spot welding machine, can be used for welding thermoplastic materials. It can be replaced according to different welding processes for welding, spot welding, embedding, cutting and so on.
The horn transfers the received vibrational energy to the joint of the workpiece to be welded, in which the vibrational energy is converted into thermal energy by friction to melt the plastic.
The short pressure maintained on the workpiece after the vibration stops causes the two weldments to solidify in a molecularly linked manner. Generally, the welding time is less than 1 second, and the obtained welding strength is comparable to that of the body.
Ultrasound can be used not only to weld hard thermoplastics, but also to fabrics and films. The main components of a set of ultrasonic welding systems include ultrasonic generators, transducer/amplifier/welding head triples, molds and frames.
Specifications:
| Item No | QR-W35PD |
| Power | 800W |
| Generator | Digital generator |
| Frequency | 35KHZ |
| Voltage | 220V or 110V |
| welding head | Aluminum or Titanium |
| Gross weight | 13Kg |
Parameters:
| Gun Type | Pen Typle | ||||||
| Frequency | 35k | 30k | 28k | 20k | 35k | 30k | 28k |
| Power | 800 | 1000w | 1200w | 1500w | 800w | 1000w | 1200w |
| Diameter of horn Tip | 10mm | 10mm | 12mm | 1m | 10mm | 10mm | 12mm |
| Diameter of cover | 51mm | 64mm | 40mm | 45mm | 60mm | ||
| Dimension of Gun | 100mm×45mm×32mm | —— | —— | —— | |||
| Weight of Gun | 0.5kg | 0.5kg | 1.2kg | 1.2kg | 0.4kg | 0.5kg | 1.0kg |
| Digital Generator | ● | ● | ● | ● | ● | ● | ● |
| Analog Generator | ● | ● | ● | ● | ● | ● | ● |
Advantages:
1. High stability: The digital electric box automatically tracks the resonant frequency, adjusts the output frequency and matches the handheld device. Once the fault is found and the operation alarm is stopped, most of the ultrasonic welding can be completed in 0.1-0.5 seconds.
2. Energy saving and environmental protection: no damage to the welding surface, no deformation, no scratches and glue residue, no need for a large number of fixtures, fluxes, adhesives, reducing labor costs
3. Reliable quality: ultrasonic welding solidification molding, recombination between molecules, forming a strong molecular chain, the weld strength can be close to the strength of raw materials, air tightness, airtight, airtight
4. Simple operation: Ultrasonic welding is very easy to automate. As long as the welding parameters are set, welding can be carried out without preheating or cleaning.
5. Wide application range: Handheld ultrasonic spot welding gun can be used for welding of film, cloth and thermoplastic products, riveting, spot welding and inlaying and blanking process between metal parts and plastic parts.
Inlay and Crimping Process Between Metal Parts and Plastic Parts by 35Khz Ultrasonic Welder
