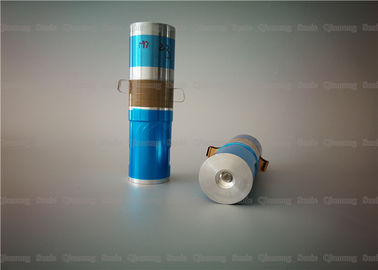

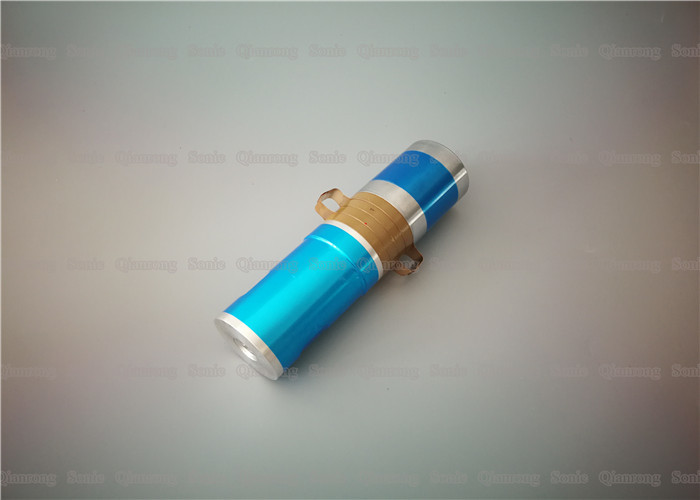

15Khz High Power 1500w Special Ultrasonic Converter with 45mm Diameter Ceramics
Description:
Ultrasonic transducers are the core components of many ultrasonic devices such as ultrasonic shearing machines, ultrasonic hot drilling machines, and ultrasonic masking machines. Their main function is to generate ultrasonic waves and convert them into mechanical vibration energy.
The main consideration for using ultrasonic transducers is the matching with the input and output, followed by the mechanical mounting and mating dimensions. The frequency of the transducer is relatively straightforward.
Specifications:
Model | QR-4515-4YZ |
Frequency | 15 khz |
Output power | 1500 watt |
Joint bolt | 1/2-20UNF |
Ceramic disc Diameter | 45mm |
Qty of ceramic discs | 4pcs |
Capacitance | 8-12.5nf |
Amplitude | 10 um |
Application | Plastic welding machine |
Parameters:
The columnar type NTK TYPE
(stabilized power and high reliability widely application)
Item No.
|
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Resonance frequency (khz)
|
Resistance (Ω)
|
Capacitance |
Input power (W)
|
Max. Amplitude (um)
|
||
Yellow | Grey | Black | ||||||||
1-7015-4BZ | M20 X 1.5 | 70 | 4 | 15 | 15 | 12500-14000 | / | 17000-19000 | 2600 | 10 |
2-6015-4BZ | M20 X 1.5 or M16 X 1 | 60 | 4 | 15 | 15 | 8000-10000 | 10000-12000 | 12500-13500 | 2200 | 10 |
3-6015-6BZ | M20 X 1.5 | 60 | 6 | 15 | 15 | 14000-16000 | / | 19500-21000 | 2600 | 10 |
4-5015-4BZ | M18 X 1.5 | 50 | 4 | 15 | 15 | 12000-13000 | 13000-14300 | 15000-17000 | 1500 | 8 |
5-4015-4BZ | M16 X 1 | 40 | 4 | 15 | 15 | 10000-11000 | 10500-11500 | 700 | 8 | |
6-5520-4BZ | M18 X 1 | 55 | 4 | 20 | 15 | 10000-11000 | 10500-11500 | 14300-20000 | 2000 | 8 |
7-5020-6BZ | M18 X 1.5 | 50 | 6 | 20 | 15 | 18500-20000 | / | 22500-25000 | 2000 | 8 |
8-5020-4BZ | M18 X 1.5 | 50 | 4 | 20 | 15 | 11000-13000 | 13000-15000 | 15000-17000 | 1500 | 8 |
9-5020-2BZ | M18 X 1.5 | 50 | 2 | 20 | 20 | 6000-6500 | 6500-7000 | 8000-9000 | 800 | 6 |
10-5020-4CZ | M18 X 1.5 | 50 | 4 | 20 | 15 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 | 8 |
11-5020-4HZ | M18 X 1.5 | 50 | 4 | 20 | 15 | / | / | 11000-12000 | 1500 | 8 |
12-5020-4BL | M18 X 1.5 | 50 | 4 | 20 | 15 | 11000-12500 | / | / | 1500 | 8 |
13-4020-4BZ | 1/2-20UNF | 40 | 4 | 20 | 15 | 9000-10000 | 9500-11000 | / | 900 | 6 |
14-4020-2BZ | 1/2-20UNF | 40 | 2 | 20 | 25 | / | 4800-5500 | / | 500 | 5 |
15-3820-4BZ | 1/2-20UNF | 38 | 4 | 20 | 15 | 6500-7500 | / | / | 800 | 6 |
16-5025-2BZ | M12 X 1 | 50 | 2 | 25 | 25 | 5000-5600 | / | 7000-8000 | 500 | 4 |
17-3828-2BZ | 1/2-20UNF | 38 | 2 | 28 | 30 | 3800-4300 | / | / | 500 | 3 |
18-3828-4BZ | 1/2-20UNF | 38 | 4 | 28 | 30 | 7600-8500 | / | 10500-12000 | 800 | 4 |
19-3028-2BZ | 3/8-24UNF | 30 | 2 | 28 | 30 | 2700-3100 | 3400-3800 | / | 400 | 3 |
20-3028-4BZ | M10*1 | 30 | 4 | 28 | 30 | / | 6000-7000 | / | 700 | 4 |
21-2528-4FZ | M8 X 1 | 25 | 4 | 28 | 30 | 3900-4300 | / | / | 400 | 4 |
22-2528-2FZ | M8 X 1 or 3/8-24UNF | 25 | 2 | 28 | 35 | 1950-2200 | 2200-2500 | / | 300 | 3 |
23-3030-4BZ | M10 | 30 | 4 | 30 | 30 | / | 6200-6900 | / | 700 | 4 |
24-3035-2FZ | 3/8-24UNF | 30 | 2 | 35 | 40 | 2700-3100 | / | / | 500 | 2 |
25-3035-4BZ | M10 X 1 | 30 | 4 | 35 | 30 | 5000-6200 | / | / | 800 | 3 |
26-2535-2FZ | M8 X 1 | 25 | 2 | 35 | 40 | 1900-2200 | / | / | 400 | 2 |
27-2540-2BZ | 3/8-24UNF | 25 | 2 | 40 | 40 | / | 2000-2300 | / | 500 | 2 |
28-3040-4BZ | M10 | 30 | 4 | 40 | 30 | 5500-6200 | / | / | 1000 | 2 |
29-3050-4BZ | M8 | 30 | 4 | 50 | 30 | 5500-6200 | / | / | 600 | 2 |
30-1560-2BZ | M6 X 0.75 | 15 | 2 | 60 | 60 | / | / | 700-800 | 100 | 1 |
15Khz High Power 1500w Special Ultrasonic Converter with 45mm Diameter Ceramics
