20Khz Ultrasonic Sewing Machine For Laminated Polypropylene Material Fabric

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 7 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-S20DL
Products Name:
Ultrasonic Sewing Machine
Frequency:
20KHZ
Power:
2500W
Generator:
Digital Generator
Width Of Welding Wheel:
22mm
Matched Transducer:
5020-4D PZT4
Generator Size:
400*195*98mm
Application:
Fabric Materials
Highlight:

ultrasonic embossing machine

,

ultrasonic fabric sewing machine

Product Description



Mass-Producing Equipment for Sealing Laminated Polypropylene Material Fabric by 20Khz Ultrasound




Description:


Ultrasonic sewing machine and ultrasonic welding transmit high frequency vibration to the fabric to realize the connection. When synthetic or non-woven materials pass between ultrasonic horns, vibrations are generated on the fibers and heat is quickly generated. This heat causes the material's synthetic fibers to melt and solidify, creating a seam that will not be worn or torn.




Specifications:



Item No QR-S20DL
Power 2500W
Generator Digital generator
Frequency 20KHZ
Voltage 220V or 110V
Width of welding wheel 22mm
Matched Transducer 5020-4D PZT4
Generator size 400*195*98mm




Compared with the traditional needle-type wired sewing, the non-woven ultrasonic sewing machine has the following advantages:


1.Using ultrasonic welding, eliminating the need for needle and thread, eliminating the need for frequent needle changes, without the broken joints of traditional thread sewing, and neatly cutting and sealing textiles. Stitching also plays a decorative role. Strong adhesion, can achieve waterproof effect, clear embossing, three-dimensional relief effect on the surface, fast working speed, good product effect, more high-grade and beautiful, quality guaranteed.
2.Using ultrasonic and special steel wheel processing, the sealed edges will not crack, will not hurt the edges of the cloth, and there will be no burrs or curling.
3. No preheating is required during manufacture and continuous operation is possible.
4. The operation is simple, and there is not much difference with the traditional sewing machine operation method, and ordinary sewing workers can operate it.
5. Low cost, 5 to 6 times faster than traditional machines, and high efficiency.





Mass-Producing Equipment for Sealing Laminated Polypropylene Material Fabric by 20Khz Ultrasound

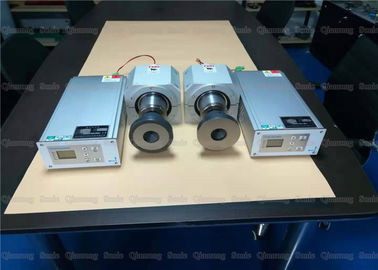

20Khz Ultrasonic Sewing Machine For Laminated Polypropylene Material Fabric 0



20Khz Ultrasonic Sewing Machine For Laminated Polypropylene Material Fabric 1
